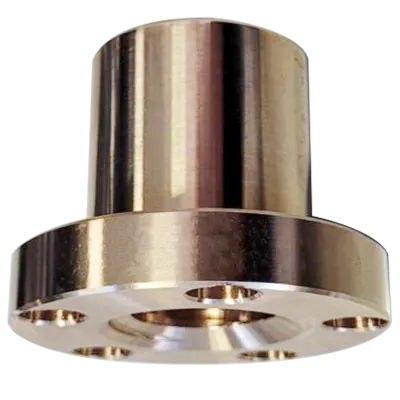

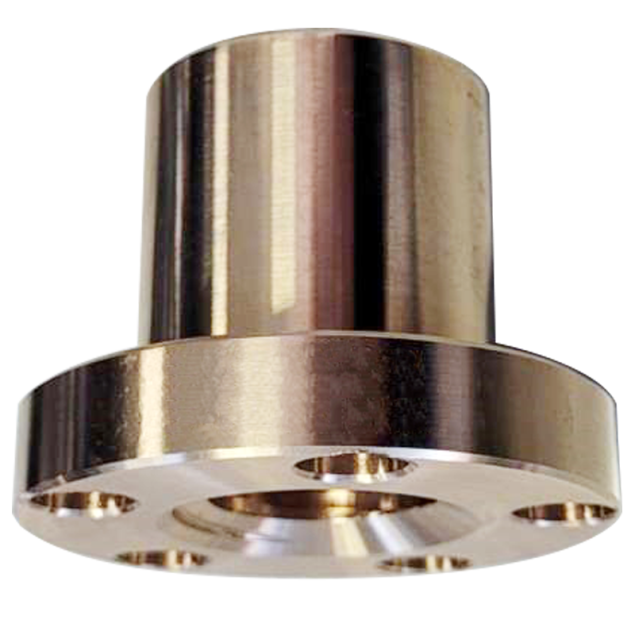

CONTI trapezoidal nut with flange CBC Tr 80x10, right thread, bronze
KI600215CONTI trapezoidal nut CBC Tr 80x10, for applications requiring smooth, precise linear movement with modest loads. Crafted with precision and durability in mind.
Specifications
Product description
Downloads
€916.00
Made to order
Expected shipment: 10-03-2025
More Information
Flange size (mm)
Ø130
Material
Bronze
Lenght (mm)
120
Type
CBC
Thread starts
1
Shape
Flanged
BCD (mm)
Ø115 - 8xØ8,5
Thread and metric
Tr 80 x 10
Description
Key features:
- High-quality construction: Manufactured from a chemical composition of materials (EN 1982 Cu Sn12-C – CC483K).
- Flanged design: The flanged bronze nut provides added stability and support during linear movement.
- Optimal lubrication: To maximize performance and lifespan, it is recommended to use good lubrication, ensuring smooth and efficient motion.
- Secure attachment: Equipped with 8 screw holes, this trapezoidal nut offers easy and secure mounting options, simplifying installation.
