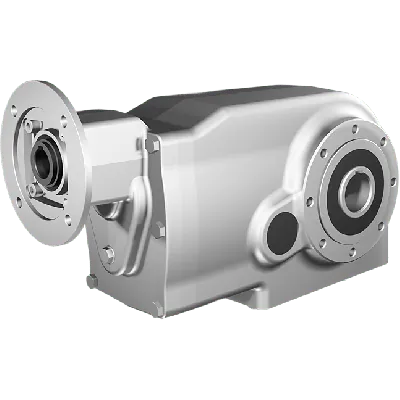

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 99,66:1, input 90B14, V5, stainless steel
HV82PX74NI03-FFBN-TV5-E-OFEquipped with a 99.66:1 gear ratio and 4 gear stages, it delivers efficient torque conversion with 92% efficiency. The gear size is X74N and features a 90B14 gear motor interface for compatibility with standard motors.The unit includes a 24 mm input shaft and a 40 mm Ø40H7 output shaft. Constructed with stainless steel AISI 316L gears, it provides corrosion resistance for hygienic or harsh settings.Input and output base circle diameters are BCD 115 mm and BCD 130 mm respectively, supporting mechanical stability in integration.
Specifications
Product description
Downloads
€4,457.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
99,66:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
14
Max output torque (Nm)
675
Max kW input at 1400 rpm
1.1
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech X74N, Bevel Gear Ø40H7 Hollow Shaft, 99.66:1 Ratio, Input 90B14, Stainless Steel AISI 316L
High-efficiency transmission — With an efficiency rating of 92%, this 4-stage bevel gear reduces energy loss significantly, making it ideal for continuous-duty operations in efficient manufacturing environments.
Exceptional corrosion resistance — The housing and internal components are made from stainless steel AISI 316L, offering superior protection against aggressive cleaning agents and corrosive materials in hygienic or marine conditions.
Precise speed reduction — The 99.66:1 ratio enables fine control of rotational speed, enhancing performance in conveyor systems, mixers, or dosing pumps where speed regulation is critical.
Robust hollow output shaft — The Ø40H7 stainless steel hollow output shaft allows for easy integration with driven equipment while withstanding high mechanical loads, perfect for use in heavy-duty automation, packaging, and bottling lines.
Standardized motor interface — Equipped with a 90B14 motor flange input, the gearbox ensures seamless assembly with a wide range of IEC motors, supporting modular system designs and simplifying maintenance.
Compact yet powerful — Despite its compact X74N size, the gearbox delivers high torque across four gear stages, making it suitable for space-constrained installations without sacrificing performance.
Flexible application — Ideal for hygienic zones in food and beverage production, clean rooms in pharmaceutical manufacturing, or caustic processing in chemical plants, where sanitation and gear reliability are paramount.
Optimized for long lifecycle — The use of precision-engineered gear stages and low-friction components extends service intervals and reduces downtime, ensuring a lower total cost of ownership for industrial operations.Clean-Geartech’s X74N bevel gear unit reflects the brand’s commitment to quality, hygienic safety, and operational excellence — tailored for engineers who demand performance without compromise.
High-efficiency transmission — With an efficiency rating of 92%, this 4-stage bevel gear reduces energy loss significantly, making it ideal for continuous-duty operations in efficient manufacturing environments.
Exceptional corrosion resistance — The housing and internal components are made from stainless steel AISI 316L, offering superior protection against aggressive cleaning agents and corrosive materials in hygienic or marine conditions.
Precise speed reduction — The 99.66:1 ratio enables fine control of rotational speed, enhancing performance in conveyor systems, mixers, or dosing pumps where speed regulation is critical.
Robust hollow output shaft — The Ø40H7 stainless steel hollow output shaft allows for easy integration with driven equipment while withstanding high mechanical loads, perfect for use in heavy-duty automation, packaging, and bottling lines.
Standardized motor interface — Equipped with a 90B14 motor flange input, the gearbox ensures seamless assembly with a wide range of IEC motors, supporting modular system designs and simplifying maintenance.
Compact yet powerful — Despite its compact X74N size, the gearbox delivers high torque across four gear stages, making it suitable for space-constrained installations without sacrificing performance.
Flexible application — Ideal for hygienic zones in food and beverage production, clean rooms in pharmaceutical manufacturing, or caustic processing in chemical plants, where sanitation and gear reliability are paramount.
Optimized for long lifecycle — The use of precision-engineered gear stages and low-friction components extends service intervals and reduces downtime, ensuring a lower total cost of ownership for industrial operations.Clean-Geartech’s X74N bevel gear unit reflects the brand’s commitment to quality, hygienic safety, and operational excellence — tailored for engineers who demand performance without compromise.
