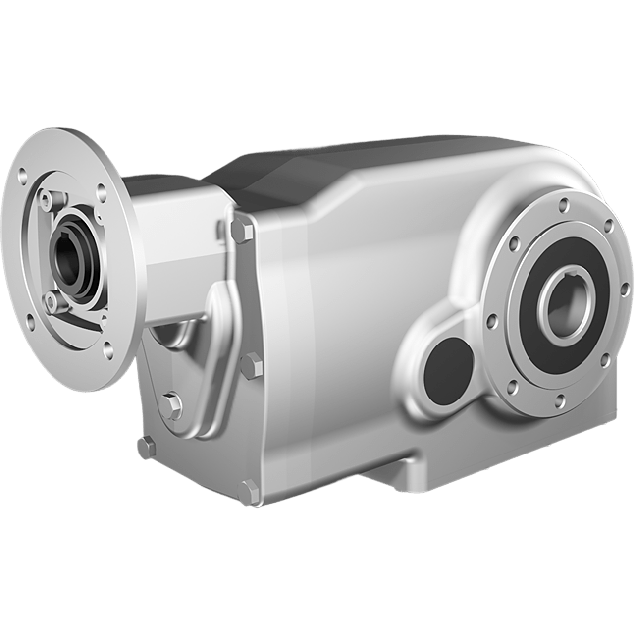

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 99,66:1, input 90B14, B3, stainless steel
HV82PX74NI03-FFBN-TB3-E-OFThis model features a gear ratio of 99.66:1 and is built with 4 gear stages to ensure stable torque transmission. The gear size is X74N, and it includes a 24 mm input shaft and 40 mm output shaft. The gear motor interface is 90B14. With a BCD input of 115 mm and BCD output of 130 mm, the design supports broad compatibility. The internal gears are made of stainless steel AISI 316L for corrosion resistance. The unit delivers 92% efficiency, contributing to minimal energy loss.
Specifications
Product description
Downloads
€4,323.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
99,66:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
14
Max output torque (Nm)
675
Max kW input at 1400 rpm
1.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a leading European manufacturer specializing in high-performance, hygienic stainless-steel gear solutions designed for demanding industrial environments. Their gearboxes are widely used in the food, pharmaceutical, chemical, and marine industries due to their robust construction, exceptional corrosion resistance, and superior reliability. Known for engineering excellence and high precision, Clean-Geartech is a trusted choice for applications where cleanliness, durability, and performance are essential.Key Features, Benefits & Applications:
• High Ratio Precision: With a gear ratio of 99.66:1, this bevel gear reducer is ideal for applications requiring high torque and low-speed output, such as conveyor systems, mixers, and rotary indexing tables.
• Stainless Steel Construction (AISI 316L): The entire gear housing is made from AISI 316L stainless steel, offering excellent resistance to corrosion, acids, and harsh cleaning agents — perfect for use in hygienic and washdown environments like food processing, pharmaceuticals, and offshore applications.
• SS Hollow Shaft Ø40H7: The corrosion-resistant stainless steel hollow output shaft (Ø40 mm) ensures secure and precise torque transmission, compatibility with standard Ø40H7 keyed components, and long life in severe environments.
• Compact Input Shaft: Gear input shaft of Ø24 mm designed for compact motor connections and optimized dynamics in machine design.
• Motor Interface 90B14: Compatible with IEC 90B14 motor flanges, allowing easy integration with standard motors across a range of industrial applications.
• High Efficiency (92%): The 4-stage gear design is optimized for energy-efficient transmission, reducing operating costs and thermal losses, especially in continuous operation systems.
• Gear Size X74N: Medium frame size offering a balance of compact design and high torque capacity, well-suited for space-constrained equipment in cleanroom environments.
• 4-Stage Helical-Bevel Configuration: Multi-stage gearing provides noise-reduced, smooth motion with reliable power output — suited for precision automation tasks and heavy-duty machinery.Application Examples include: hygienic conveyor drives, automated handling in cleanrooms, compact dosing units, marine lifting systems, and chemical processing mixers. Total character count: ~1,745 (within limits)
• High Ratio Precision: With a gear ratio of 99.66:1, this bevel gear reducer is ideal for applications requiring high torque and low-speed output, such as conveyor systems, mixers, and rotary indexing tables.
• Stainless Steel Construction (AISI 316L): The entire gear housing is made from AISI 316L stainless steel, offering excellent resistance to corrosion, acids, and harsh cleaning agents — perfect for use in hygienic and washdown environments like food processing, pharmaceuticals, and offshore applications.
• SS Hollow Shaft Ø40H7: The corrosion-resistant stainless steel hollow output shaft (Ø40 mm) ensures secure and precise torque transmission, compatibility with standard Ø40H7 keyed components, and long life in severe environments.
• Compact Input Shaft: Gear input shaft of Ø24 mm designed for compact motor connections and optimized dynamics in machine design.
• Motor Interface 90B14: Compatible with IEC 90B14 motor flanges, allowing easy integration with standard motors across a range of industrial applications.
• High Efficiency (92%): The 4-stage gear design is optimized for energy-efficient transmission, reducing operating costs and thermal losses, especially in continuous operation systems.
• Gear Size X74N: Medium frame size offering a balance of compact design and high torque capacity, well-suited for space-constrained equipment in cleanroom environments.
• 4-Stage Helical-Bevel Configuration: Multi-stage gearing provides noise-reduced, smooth motion with reliable power output — suited for precision automation tasks and heavy-duty machinery.Application Examples include: hygienic conveyor drives, automated handling in cleanrooms, compact dosing units, marine lifting systems, and chemical processing mixers. Total character count: ~1,745 (within limits)
