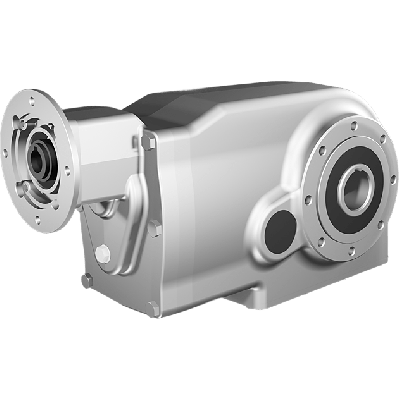

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 99,66:1, input 80B14, V5, stainless steel
HV82PX74NI03-FFBN-RV5-D-OFIt features a gear ratio of 99.66:1 and consists of 4 gear stages. The input shaft diameter is 19 mm and the output shaft is a Ø40 mm hollow shaft (H7 fit). Its gear motor interface conforms to 80B14 standard, and it delivers a mechanical efficiency of 92%.The gear housing is size X74N and the gears are made of stainless steel AISI 316L, ensuring resistance to corrosion. The unit has BCD input of 100 mm and BCD output of 130 mm. Suitable for clean applications in food or pharmaceutical industries.
Specifications
Product description
Downloads
€4,438.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
99,66:1
BCD input
100
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X74N
Output speed at 1400 RPM
14
Max output torque (Nm)
675
Max kW input at 1400 rpm
1.1
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Produced by Clean-Geartech, a recognized brand known for delivering robust drive solutions to food, pharmaceutical, and chemical industries, this X74N bevel gearbox is designed for demanding applications where cleanliness, corrosion resistance, and operational reliability are critical. All gear components are manufactured using AISI 316L stainless steel to support use in aggressive environments requiring high hygiene standards and chemical resistance.Main features and applications:
● Constructed entirely in stainless steel AISI 316L, ensuring excellent corrosion resistance for harsh and sanitary environments such as food processing, chemical plants, marine, and pharmaceutical industries.
● Equipped with a Ø40H7 hollow stainless-steel output shaft, enabling direct shaft-mounting to driven equipment, minimizing the need for additional couplings and reducing assembly complexity.
● Compact X74N gear size with 4-stage reduction and high gear ratio of 99.66:1, ideal for applications that require high torque output and low speed — including conveyors, mixers, and dosing systems.
● High input/output efficiency of 92%, reducing energy losses and contributing to overall system efficiency and reduced operational costs for industrial automation systems.
● Features B14 input flange (size 80), providing standardized motor mounting compatibility, especially for IEC motors, simplifying replacement and integration into new or existing machinery.
● Input shaft diameter of 19 mm supports robust and precise motor coupling, ensuring smooth torque transfer under dynamic load conditions.
● Output is designed to withstand high radial and axial forces, making it suitable for heavy-duty mechanized equipment such as bottling lines or cutting systems where reliability and strength are paramount.
● Gearbox design ensures minimal surface roughness and easy cleaning, essential for cleanroom and hygienically sensitive production zones. Designed for engineers and technical professionals, the Clean-Geartech X74N bevel gearbox delivers rugged performance, sanitary design, and flexible integration capability for industrial drive applications.
● Constructed entirely in stainless steel AISI 316L, ensuring excellent corrosion resistance for harsh and sanitary environments such as food processing, chemical plants, marine, and pharmaceutical industries.
● Equipped with a Ø40H7 hollow stainless-steel output shaft, enabling direct shaft-mounting to driven equipment, minimizing the need for additional couplings and reducing assembly complexity.
● Compact X74N gear size with 4-stage reduction and high gear ratio of 99.66:1, ideal for applications that require high torque output and low speed — including conveyors, mixers, and dosing systems.
● High input/output efficiency of 92%, reducing energy losses and contributing to overall system efficiency and reduced operational costs for industrial automation systems.
● Features B14 input flange (size 80), providing standardized motor mounting compatibility, especially for IEC motors, simplifying replacement and integration into new or existing machinery.
● Input shaft diameter of 19 mm supports robust and precise motor coupling, ensuring smooth torque transfer under dynamic load conditions.
● Output is designed to withstand high radial and axial forces, making it suitable for heavy-duty mechanized equipment such as bottling lines or cutting systems where reliability and strength are paramount.
● Gearbox design ensures minimal surface roughness and easy cleaning, essential for cleanroom and hygienically sensitive production zones. Designed for engineers and technical professionals, the Clean-Geartech X74N bevel gearbox delivers rugged performance, sanitary design, and flexible integration capability for industrial drive applications.
