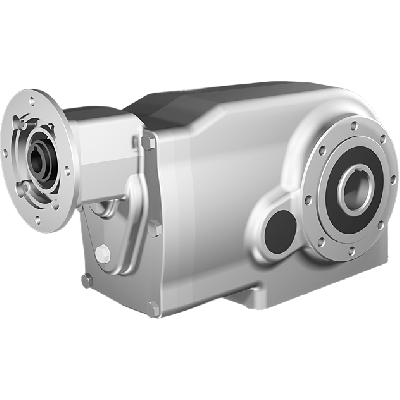

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 99,66:1, input 80B14, B3, stainless steel
HV82PX74NI03-FFBN-RB3-D-OFThis model features a gear ratio of 99.66:1 and delivers a high efficiency of 92%. It is equipped with a Ø19 mm gear input shaft and a Ø40 mm hollow output shaft with Ø40H7 fit. The gear interface follows the 80B14 standard, allowing seamless motor integration. Constructed with gears made of stainless steel AISI 316L, it ensures resistance to aggressive environments. The unit includes 4 gear stages and is built in Gear size X74N. It supports a BCD input of 100 mm and a BCD output of 130 mm.
Specifications
Product description
Downloads
€4,304.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
99,66:1
BCD input
100
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X74N
Output speed at 1400 RPM
14
Max output torque (Nm)
675
Max kW input at 1400 rpm
1.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium European manufacturer specializing in hygienic and corrosion-resistant gear systems for demanding applications in the food, pharmaceutical, chemical, and offshore industries. Their gear units are known for exceptional reliability, precision, and full compliance with stringent hygienic and sanitary requirements.Product: Clean-Geartech X74N bevel gear reducer with Ø40H7 stainless steel hollow output shaft, 99.66:1 ratio, stainless steel AISI 316L housing, 4-stage design, and IEC 80B14 motor interface.Applications and Functional Highlights:
✔ Stainless Steel AISI 316L Housing – Ensures excellent corrosion resistance in aggressive or hygienic environments such as food processing, pharmaceutical production, marine, or chemical sectors. Ideal where frequent washdowns or contact with caustic substances occur.
✔ Stainless Steel Ø40H7 Hollow Output Shaft – Optimal for torque transmission in applications requiring high cleanliness and long life, including agitators, mixers, conveyors, and dosing systems. Simplifies coupling with drive elements.
✔ 99.66:1 High Reduction Ratio – Provides substantial torque multiplication while maintaining precision output. Suitable for low-speed, high-torque applications such as lifting systems, rotary tables, and slow conveyors.
✔ 4 Gear Stages – Achieves high reduction without compromising efficiency or smoothness of motion. Enhances gearbox durability under continuous or cyclic load.
✔ High Efficiency at 92% – Ensures minimal energy loss, contributing to reduced operational costs. Well-suited for 24/7 operations in automation or packaging systems.
✔ Modular IEC 80B14 Gear Motor Interface – Supports standardized electric motor mounting, enabling flexible integration in existing or new technical solutions.
✔ Gear Input Shaft Ø19 mm – Standard dimension ready for customized coupling with shaft-mounted motors or belt/pulley systems.
✔ Compact Gear Size X74N – Minimizes spatial footprint in compact machine layouts or hygienic enclosures.Engineered by Clean-Geartech, the X74N bevel gear unit is built for performance in critical systems that demand reliability, long service life, and uncompromised cleanliness.
✔ Stainless Steel AISI 316L Housing – Ensures excellent corrosion resistance in aggressive or hygienic environments such as food processing, pharmaceutical production, marine, or chemical sectors. Ideal where frequent washdowns or contact with caustic substances occur.
✔ Stainless Steel Ø40H7 Hollow Output Shaft – Optimal for torque transmission in applications requiring high cleanliness and long life, including agitators, mixers, conveyors, and dosing systems. Simplifies coupling with drive elements.
✔ 99.66:1 High Reduction Ratio – Provides substantial torque multiplication while maintaining precision output. Suitable for low-speed, high-torque applications such as lifting systems, rotary tables, and slow conveyors.
✔ 4 Gear Stages – Achieves high reduction without compromising efficiency or smoothness of motion. Enhances gearbox durability under continuous or cyclic load.
✔ High Efficiency at 92% – Ensures minimal energy loss, contributing to reduced operational costs. Well-suited for 24/7 operations in automation or packaging systems.
✔ Modular IEC 80B14 Gear Motor Interface – Supports standardized electric motor mounting, enabling flexible integration in existing or new technical solutions.
✔ Gear Input Shaft Ø19 mm – Standard dimension ready for customized coupling with shaft-mounted motors or belt/pulley systems.
✔ Compact Gear Size X74N – Minimizes spatial footprint in compact machine layouts or hygienic enclosures.Engineered by Clean-Geartech, the X74N bevel gear unit is built for performance in critical systems that demand reliability, long service life, and uncompromised cleanliness.
