Description

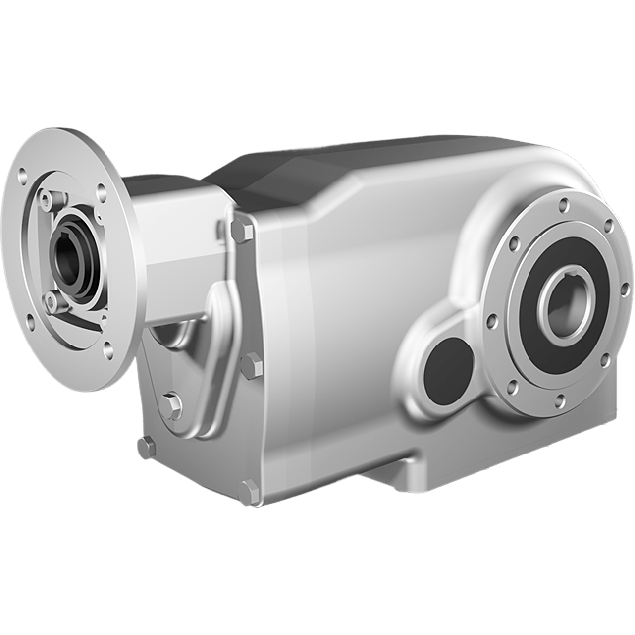

Clean-Geartech is a renowned manufacturer of precision-engineered stainless steel gearboxes, catering to demanding applications in the food, pharmaceutical, and chemical industries. With a rigorous focus on hygiene, durability, and mechanical efficiency, Clean-Geartech delivers optimal performance under the most challenging operating conditions.This specific model – the Clean-Geartech X74N – is a stainless steel bevel gearbox with a hollow output shaft and a high reduction ratio, engineered for corrosion resistance and long life in harsh environments.Key features, benefits, and application insights:
Constructed entirely from AISI 316L stainless steel, including housings and shafts – ensuring excellent resistance to chemical corrosion and aggressive cleaning procedures in hygiene-critical environments.
Equipped with a Ø40H7 stainless steel hollow output shaft – enables direct shaft integration for compact and hygienic machine layouts, reducing contamination risk and installation volume.
Input interface 90B14 flange – standardized mounting pattern for easy integration with IEC motors, minimizing adaptation costs and installation time.
High gear ratio of 85.99:1 distributed over 4 stages – ideal for applications requiring precise torque multiplication, low output speed, and high load capacity, such as conveyors, mixers, and dosing systems.
High efficiency of 92% – minimizes energy losses even under continuous operation, reducing power consumption and heat generation, which is critical in temperature-sensitive processes.
Input shaft dimension Ø24 mm – supports a wide motor range and ensures mechanical compatibility with custom drive systems.
Compact gear size X74N – optimized for enclosure within tight machine designs, enabling reduced footprint without sacrificing torque performance.
Fully enclosed and smooth surface design – prevents bacterial buildup and supports hygienic design principles (EHEDG-compatible environments). Applications include: cleanroom automation, pharmaceutical processing equipment, food-grade conveyor systems, biotech machinery, and chemical dosing stations – wherever hygiene, corrosion resistance, and mechanical reliability are a must.
Constructed entirely from AISI 316L stainless steel, including housings and shafts – ensuring excellent resistance to chemical corrosion and aggressive cleaning procedures in hygiene-critical environments.
Equipped with a Ø40H7 stainless steel hollow output shaft – enables direct shaft integration for compact and hygienic machine layouts, reducing contamination risk and installation volume.
Input interface 90B14 flange – standardized mounting pattern for easy integration with IEC motors, minimizing adaptation costs and installation time.
High gear ratio of 85.99:1 distributed over 4 stages – ideal for applications requiring precise torque multiplication, low output speed, and high load capacity, such as conveyors, mixers, and dosing systems.
High efficiency of 92% – minimizes energy losses even under continuous operation, reducing power consumption and heat generation, which is critical in temperature-sensitive processes.
Input shaft dimension Ø24 mm – supports a wide motor range and ensures mechanical compatibility with custom drive systems.
Compact gear size X74N – optimized for enclosure within tight machine designs, enabling reduced footprint without sacrificing torque performance.
Fully enclosed and smooth surface design – prevents bacterial buildup and supports hygienic design principles (EHEDG-compatible environments). Applications include: cleanroom automation, pharmaceutical processing equipment, food-grade conveyor systems, biotech machinery, and chemical dosing stations – wherever hygiene, corrosion resistance, and mechanical reliability are a must.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
85,99:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
16.3
Max output torque (Nm)
675
Max kW input at 1400 rpm
1.3
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834021
ERP net weight (Kg)
31.00
Country of origin
ITA
