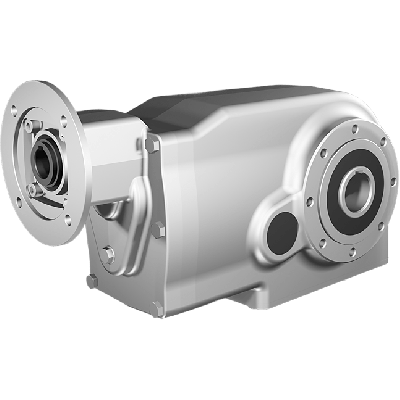

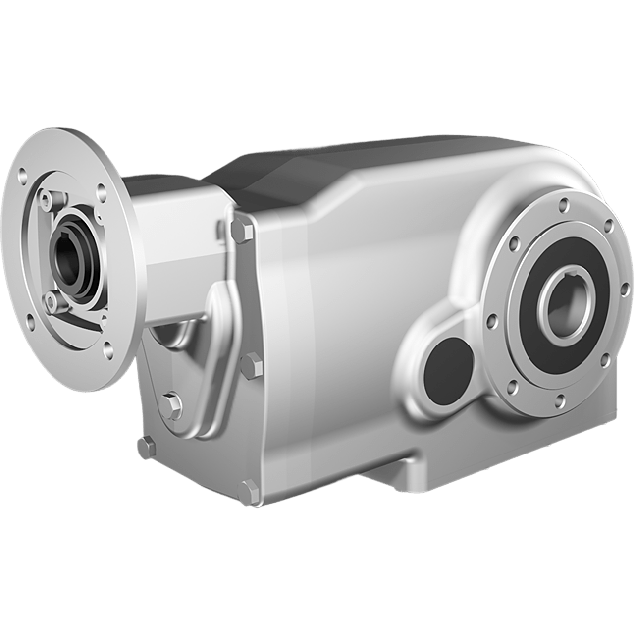

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 85,99:1, input 90B14, B3, stainless steel
HV82PX74NI02-FFBN-TB3-E-OFThis model features a gear ratio of 85.99:1 and a gear size of X74N. It offers a gear input shaft diameter of 24 mm and a gear output shaft diameter of 40 mm. The gear motor interface is 90B14. Internal components include gears made of stainless steel AISI 316L, ensuring compatibility for demanding, washdown environments.With a mechanical efficiency of 92%, the unit supports a BCD input of 115 mm and a BCD output of 130 mm. Ideal for food, pharmaceutical or marine-grade installations requiring a stainless steel hollow shaft solution.
Specifications
Product description
Downloads
€4,323.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
85,99:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
16.3
Max output torque (Nm)
675
Max kW input at 1400 rpm
1.3
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
**Brand Description:** Clean-Geartech is a premium manufacturer specializing in high-performance stainless steel gear solutions for demanding industrial environments. Known for their uncompromising quality, hygienic design, and corrosion-resistant materials, Clean-Geartech products are trusted across industries such as food & beverage, pharmaceuticals, chemical processing, and offshore engineering.**Key Features, Technical Benefits, and Industrial Applications:**
Robust gear housing made from AISI 316L stainless steel ensures maximum corrosion resistance – ideal for hygienic and aggressive environments including food processing lines, pharmaceutical production, and offshore applications.
High gear ratio of 85.99:1 provides precise torque control and slow-speed operation – suitable for conveyor systems, automated mixing equipment, and dosing units requiring accuracy and control.
Hollow output shaft Ø40H7 in stainless steel (SS) allows for seamless integration with application shafts and enables compact assemblies – perfect for cleanroom machinery and space-constrained production setups.
Input flange size 90B14 offers compatibility with standard IEC motors – simplifying integration into existing motor-drive systems in manufacturing automation and OEM machinery.
Input shaft diameter of 24 mm paired with 4 gear stages ensures smooth, multi-stage torque transmission – supporting applications with high load demands like bottling plants and packaging automation.
92% efficiency minimizes energy losses, translating to reduced operational costs and improved system performance – beneficial for energy-sensitive sectors such as sustainable manufacturing and controlled environments.
Compact gear size X74N offers high power density in a reduced footprint – suitable for mobile or modular industrial solutions, including inspection robots and compact production cells.
BCD Input: 115 mm and BCD Output: 130 mm enable secure and stable mounting – ensures mechanical durability in dynamic and heavy-duty industries such as mining or bulk handling systems.Clean-Geartech’s X74N bevel gearbox sets the standard for modern drive solutions where hygiene, durability, and engineering performance are critical.
Robust gear housing made from AISI 316L stainless steel ensures maximum corrosion resistance – ideal for hygienic and aggressive environments including food processing lines, pharmaceutical production, and offshore applications.
High gear ratio of 85.99:1 provides precise torque control and slow-speed operation – suitable for conveyor systems, automated mixing equipment, and dosing units requiring accuracy and control.
Hollow output shaft Ø40H7 in stainless steel (SS) allows for seamless integration with application shafts and enables compact assemblies – perfect for cleanroom machinery and space-constrained production setups.
Input flange size 90B14 offers compatibility with standard IEC motors – simplifying integration into existing motor-drive systems in manufacturing automation and OEM machinery.
Input shaft diameter of 24 mm paired with 4 gear stages ensures smooth, multi-stage torque transmission – supporting applications with high load demands like bottling plants and packaging automation.
92% efficiency minimizes energy losses, translating to reduced operational costs and improved system performance – beneficial for energy-sensitive sectors such as sustainable manufacturing and controlled environments.
Compact gear size X74N offers high power density in a reduced footprint – suitable for mobile or modular industrial solutions, including inspection robots and compact production cells.
BCD Input: 115 mm and BCD Output: 130 mm enable secure and stable mounting – ensures mechanical durability in dynamic and heavy-duty industries such as mining or bulk handling systems.Clean-Geartech’s X74N bevel gearbox sets the standard for modern drive solutions where hygiene, durability, and engineering performance are critical.
