Clean-Geartech is a high-end manufacturer specializing in hygienic gear solutions for demanding industrial environments. Known for their uncompromising approach to material selection and design, all Clean-Geartech gearboxes are engineered for durability, corrosion resistance, and easy integration into machinery used in the food, pharmaceutical, and chemical industries.

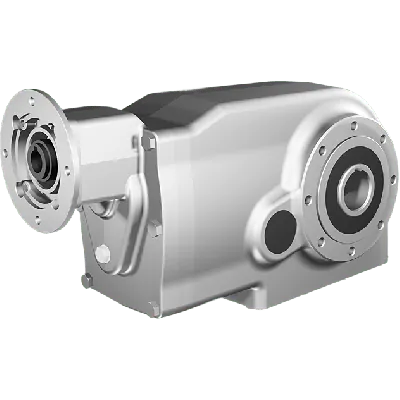

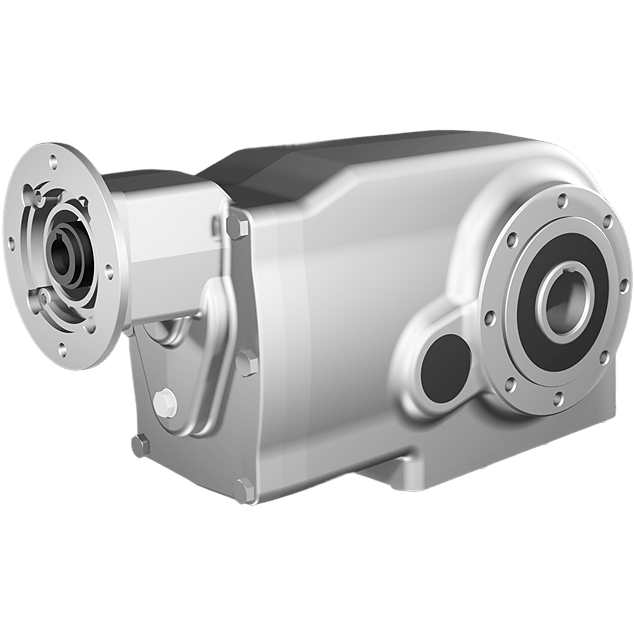

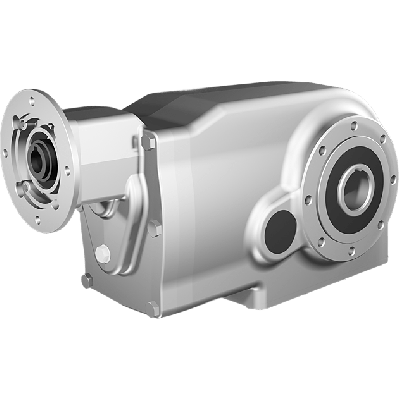

• Made from AISI 316L stainless steel, the gearbox is highly resistant to corrosion and ideal for applications within washdown or hygienic environments such as food processing, biotech, and cleanroom systems.

• Equipped with a Ø40 mm H7 hollow output shaft in stainless steel (SS), which allows direct mounting to driven components, reducing the need for couplings and adapters, and making assembly compact and mechanically efficient.

• Gear input through a standardized 80B14 flange enables seamless motor integration, particularly suitable for IEC standard motors in automation and conveying systems.

• The 4-stage bevel gear design achieves a high reduction ratio of 85.99:1, providing precise torque control and significant speed reduction for situations requiring slow, stable movement — such as dosing systems, mixers, and positioning tables.

• High efficiency rating of 92% ensures minimal energy loss, reducing operating costs and heat generation for long-term, maintenance-free performance in continuous-duty applications.

• Compact gear size X74N makes this gear unit ideal for installations with limited spatial allowance, commonly found in modular systems or retrofitting operations.

• Input shaft diameter of 19 mm is suitable for various motor coupling configurations, enhancing flexibility in system design and integration.

• Output torque and stability are ensured by precision-machined gearing and high-grade materials, supporting heavy-duty industrial tasks, including automated packaging lines and conveyors.
