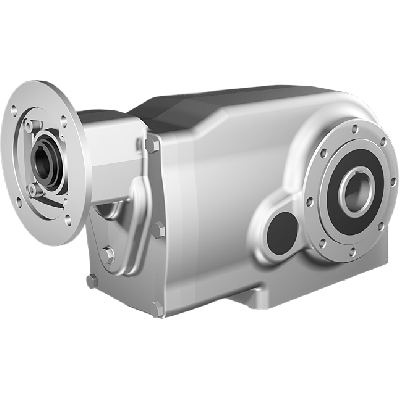

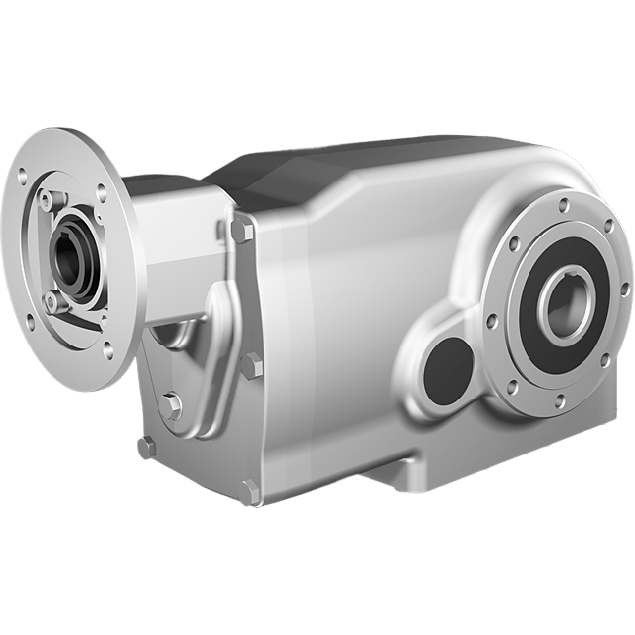

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 74,79:1, input 90B14, V5, stainless steel
HV82PX74NI01-FFBN-TV5-E-OFIt features a gear ratio of 74.79:1 and a 4-stage gear configuration, suitable for applications requiring precise speed reduction. The housing and internal gearing are made from stainless steel AISI 316L, ensuring durability in aggressive or hygienic settings. The unit includes a Ø40 mm output hollow shaft (H7 tolerance) and a 24 mm input shaft. Designed for compatibility with standard motors, it has a gear motor interface of 90B14. The unit efficiency is 92%, contributing to energy-effective operation.Model: X74N. Input BCD: 115 mm, Output BCD: 130 mm.
Specifications
Product description
Downloads
€4,457.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
74,79:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
18.7
Max output torque (Nm)
675
Max kW input at 1400 rpm
1.4
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Introduction: Clean-Geartech is an innovative and trusted manufacturer specializing in stainless steel gear systems engineered for optimal performance in food, pharmaceutical, chemical, and offshore industries. Their solutions are designed to meet stringent hygienic standards, corrosion resistance, and long service life in demanding environments.Key Features, Benefits, and Applications:
Hygienic Design in AISI 316L Stainless Steel: The entire gear housing is constructed from AISI 316L stainless steel, ensuring exceptional corrosion resistance, easy cleaning, and suitability for use in cleanroom, pharmaceutical, food processing, and maritime environments.
High Efficiency of 92%: This gearbox offers energy-efficient power transfer, reducing energy costs and minimizing system losses in continuous operation applications such as conveyor systems or agitators.
Precision Ground Bevel Gears in 4-Stage Construction: The optimized 4-stage gearing provides excellent torque transmission and smooth operation, vital for high-load applications in automation, packaging machinery, and chemical mixers.
Accurate Gear Ratio of 74.79:1: Enables precise speed reduction and torque multiplication, ideal for engineering systems demanding controlled motion such as robotic arms and dosing systems.
Ø40H7 Hollow Output Shaft (Stainless Steel): The stainless steel hollow shaft allows for torque transmission without backlash and simplifies integration into shaft-mounted applications, such as drum motors and shaft-driven conveyors.
Input Shaft: Ø24 mm with 90B14 Flange Interface: Compatible with 90B14 IEC motors, facilitating flexible drive integration and simplifying replacement or upgrading of motors in modular automation lines.
Compact Gear Size X74N: Compact geometry provides high power density and space efficiency, making it ideal for equipment with limited installation space.
Robust SKU Configuration for Easy Identification and Fast Integration: Clearly identifiable under SKU Clean-Geartech X74N facilitates logistics, technical specification compliance, and pre-configured component matching. The Clean-Geartech X74N is engineered for applications requiring durability, washdown compatibility, and mechanical precision – a top-tier choice for technical specialists in demanding industries.
Hygienic Design in AISI 316L Stainless Steel: The entire gear housing is constructed from AISI 316L stainless steel, ensuring exceptional corrosion resistance, easy cleaning, and suitability for use in cleanroom, pharmaceutical, food processing, and maritime environments.
High Efficiency of 92%: This gearbox offers energy-efficient power transfer, reducing energy costs and minimizing system losses in continuous operation applications such as conveyor systems or agitators.
Precision Ground Bevel Gears in 4-Stage Construction: The optimized 4-stage gearing provides excellent torque transmission and smooth operation, vital for high-load applications in automation, packaging machinery, and chemical mixers.
Accurate Gear Ratio of 74.79:1: Enables precise speed reduction and torque multiplication, ideal for engineering systems demanding controlled motion such as robotic arms and dosing systems.
Ø40H7 Hollow Output Shaft (Stainless Steel): The stainless steel hollow shaft allows for torque transmission without backlash and simplifies integration into shaft-mounted applications, such as drum motors and shaft-driven conveyors.
Input Shaft: Ø24 mm with 90B14 Flange Interface: Compatible with 90B14 IEC motors, facilitating flexible drive integration and simplifying replacement or upgrading of motors in modular automation lines.
Compact Gear Size X74N: Compact geometry provides high power density and space efficiency, making it ideal for equipment with limited installation space.
Robust SKU Configuration for Easy Identification and Fast Integration: Clearly identifiable under SKU Clean-Geartech X74N facilitates logistics, technical specification compliance, and pre-configured component matching. The Clean-Geartech X74N is engineered for applications requiring durability, washdown compatibility, and mechanical precision – a top-tier choice for technical specialists in demanding industries.
