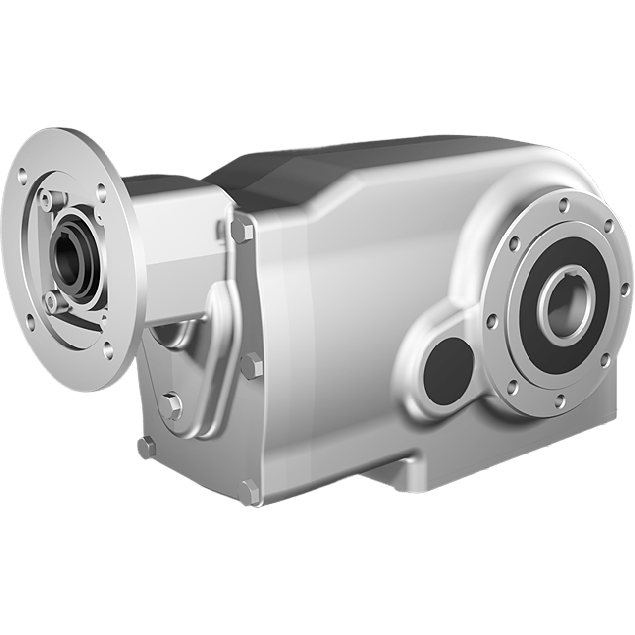

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 74,79:1, input 90B14, B3, stainless steel
HV82PX74NI01-FFBN-TB3-E-OFThis gear unit features a gear ratio of 74.79:1 and operates through 4 gear stages, ensuring effective torque transmission. The efficiency is 92%, which minimizes energy loss during operation. It includes a Ø24 mm gear input shaft and a Ø40 mm hollow output shaft with H7 tolerance for precise shaft fitting.The gear material is stainless steel AISI 316L, providing high corrosion resistance for use in harsh or hygienic environments. The unit uses a 90B14 motor interface and comes in gear size X74N. Input and output BCDs are 115 mm and 130 mm, respectively.
Specifications
Product description
Downloads
€4,323.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
74,79:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
18.7
Max output torque (Nm)
675
Max kW input at 1400 rpm
1.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a renowned manufacturer specializing in high-performance gear solutions engineered for demanding industrial and hygienic environments. Focused on precision, robustness, and long-term durability, Clean-Geartech gearboxes are crafted with premium materials and optimized for efficiency and minimal maintenance downtime.Key Product Features, Benefits & Application Possibilities:
Fully encapsulated housing manufactured in AISI 316L stainless steel guarantees corrosion resistance and excellent suitability for food processing, pharmaceutical, chemical, and offshore industries
High transmission ratio of 74.79:1 allows for powerful torque reduction in compact form, making it ideal for applications requiring precise speed control and heavy-load handling
Output shaft with Ø40H7 hollow bore in stainless steel (SS hollow shaft) enables direct shaft-mounting for simplified assembly and high axial load tolerance in conveyor systems and rotary machines
4-stage gear system optimizes torque conversion and noise reduction, supporting long lifecycle operation in mission-critical automated processes
24 mm input shaft facilitates compatibility with standard motors, easing integration into preconfigured drive systems
90B14 gearmotor interface ensures quick and secure mounting of IEC motors, reducing commissioning time in industrial automation setups
92% mechanical efficiency enhances energy conservation, reduces operational costs, and supports eco-design requirements in large-scale manufacturing
Robust X74N gear size profile and bevel gear configuration ensure stable performance under high radial and axial loads, critical for lifting mechanisms, agitators, and packaging lines
Optimal for cleanroom, CIP/SIP cleaning, and hygienic zone installations due to smooth surface design and non-corrosive materials
Suitable for industries such as marine, renewable energy, and biotechnological equipment where exposure to harsh environments and regulatory compliance are essential
Fully encapsulated housing manufactured in AISI 316L stainless steel guarantees corrosion resistance and excellent suitability for food processing, pharmaceutical, chemical, and offshore industries
High transmission ratio of 74.79:1 allows for powerful torque reduction in compact form, making it ideal for applications requiring precise speed control and heavy-load handling
Output shaft with Ø40H7 hollow bore in stainless steel (SS hollow shaft) enables direct shaft-mounting for simplified assembly and high axial load tolerance in conveyor systems and rotary machines
4-stage gear system optimizes torque conversion and noise reduction, supporting long lifecycle operation in mission-critical automated processes
24 mm input shaft facilitates compatibility with standard motors, easing integration into preconfigured drive systems
90B14 gearmotor interface ensures quick and secure mounting of IEC motors, reducing commissioning time in industrial automation setups
92% mechanical efficiency enhances energy conservation, reduces operational costs, and supports eco-design requirements in large-scale manufacturing
Robust X74N gear size profile and bevel gear configuration ensure stable performance under high radial and axial loads, critical for lifting mechanisms, agitators, and packaging lines
Optimal for cleanroom, CIP/SIP cleaning, and hygienic zone installations due to smooth surface design and non-corrosive materials
Suitable for industries such as marine, renewable energy, and biotechnological equipment where exposure to harsh environments and regulatory compliance are essential
