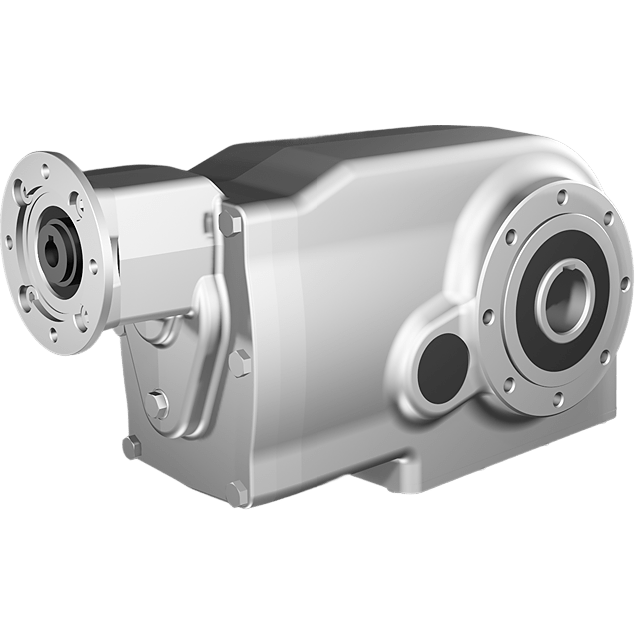

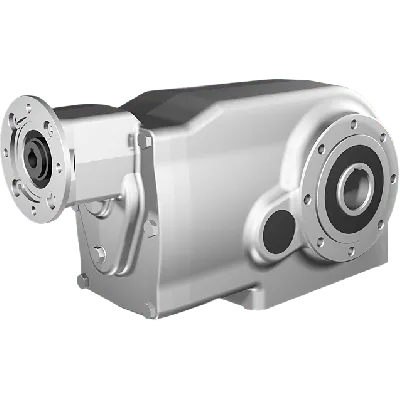

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 248,76:1, input 71B14, B3, stainless steel
HV82PX74NI12-FFBN-QB3-C-OFIt features a gear ratio of 248.76:1 across 4 gear stages, delivering a mechanical efficiency of 92%. The input shaft diameter is 14 mm and connects via a 71B14 motor interface. The Ø40 mm H7 hollow output shaft supports stable torque transmission. Constructed with stainless steel AISI 316L gears and a robust X74N gear size, it ensures operational durability in corrosive environments. The unit has a BCD input of 85 mm and a BCD output of 130 mm.
Specifications
Product description
Downloads
€4,298.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
248,76:1
BCD input
85
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X74N
Output speed at 1400 RPM
5.6
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.43
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium European manufacturer renowned for its high-performance, corrosion-resistant stainless steel gearbox solutions. Designed to meet the strictest hygiene, durability, and operational requirements across the food processing, pharmaceutical, chemical, and marine industries, Clean-Geartech gearboxes offer optimal performance, reliability, and maintenance-friendly operation in harsh environments.The X74N is a robust bevel gear reducer engineered for technical specialists and industrial engineers demanding precision, efficiency, and longevity.
100% Stainless Steel AISI 316L Housing and Shaft – Ensures maximum corrosion resistance for use in aggressive environments such as food, pharmaceutical, and marine industries.
Ø40H7 Hollow Output Shaft (Stainless Steel) – Designed for compact direct coupling to driven equipment, ideal for applications where space is critical and hygiene is a priority.
Standardized Motor Interface 71B14 – Offers quick and easy integration with IEC standard motors, optimizing project flexibility and reducing installation time.
4-Stage Precision Ground Bevel Gearing – Delivers a high reduction ratio of 248.76:1 while maintaining compact dimensions and ensuring low vibration and noise under load.
High Output Torque & Low Backlash – Suitable for demanding positioning systems, process automation, and conveyors requiring consistent torque at low speeds.
Efficient Power Transmission (92% Efficiency) – Minimizes energy loss, resulting in lower operating costs and reduced thermal stress during continuous-duty operation.
Ideal for Washdown and CIP Applications – Hygienic design with no paint or coatings minimizes contamination risks and supports sanitary processing environments. Recommended for industries such as: food & beverage, biotechnology, packaging, chemical handling, offshore drilling automation, and all applications where reliability and cleanliness are critical.SKU: Clean-Geartech X74N, Bevel Gearbox Ø40H7 Hollow Shaft, 248.76:1, 71B14 Input, Stainless Steel.
100% Stainless Steel AISI 316L Housing and Shaft – Ensures maximum corrosion resistance for use in aggressive environments such as food, pharmaceutical, and marine industries.
Ø40H7 Hollow Output Shaft (Stainless Steel) – Designed for compact direct coupling to driven equipment, ideal for applications where space is critical and hygiene is a priority.
Standardized Motor Interface 71B14 – Offers quick and easy integration with IEC standard motors, optimizing project flexibility and reducing installation time.
4-Stage Precision Ground Bevel Gearing – Delivers a high reduction ratio of 248.76:1 while maintaining compact dimensions and ensuring low vibration and noise under load.
High Output Torque & Low Backlash – Suitable for demanding positioning systems, process automation, and conveyors requiring consistent torque at low speeds.
Efficient Power Transmission (92% Efficiency) – Minimizes energy loss, resulting in lower operating costs and reduced thermal stress during continuous-duty operation.
Ideal for Washdown and CIP Applications – Hygienic design with no paint or coatings minimizes contamination risks and supports sanitary processing environments. Recommended for industries such as: food & beverage, biotechnology, packaging, chemical handling, offshore drilling automation, and all applications where reliability and cleanliness are critical.SKU: Clean-Geartech X74N, Bevel Gearbox Ø40H7 Hollow Shaft, 248.76:1, 71B14 Input, Stainless Steel.
