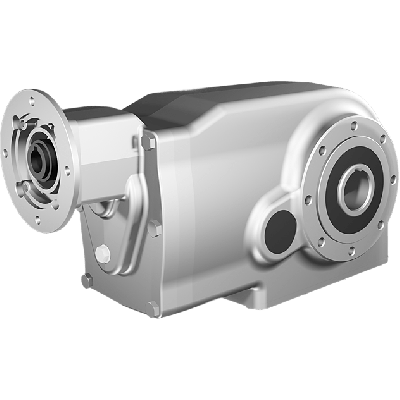

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 222,52:1, input 80B14, V5, stainless steel
HV82PX74NI11-FFBN-RV5-D-OFThis model features a gear ratio of 222.52:1 across 4 gear stages, enabling effective torque conversion. It offers a gear input shaft diameter of 19 mm and a gear output shaft of Ø40H7 mm. The gear motor interface is 80B14, ensuring compatibility with standard motor sizes. Constructed with a stainless steel AISI 316L gear housing, this unit is built to withstand harsh environments. The gear size is X74N, and it supports operational efficiency with a Bearing Center Distance (BCD) input of 100 and BCD output of 130, achieving a mechanical efficiency of 92%.
Specifications
Product description
Downloads
€4,438.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
222,52:1
BCD input
100
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X74N
Output speed at 1400 RPM
6.3
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.48
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium manufacturer specializing in hygienic, corrosion-resistant power transmission solutions. Renowned for combining efficiency and longevity, the brand is particularly recognized in the food, pharmaceutical, and chemical industries, where equipment must comply with strict sanitary and durability standards. Their gearboxes are engineered with long-term reliability in mind, even under aggressive cleaning and harsh environmental conditions.Key Features, Benefits & Applications:
High Gear Ratio of 222.52:1 – Enables high torque transmission with extremely precise speed reduction, ideal for applications requiring slow, controlled motion such as conveyor systems, mixers, and automated dosing mechanisms.
Constructed entirely from Stainless Steel AISI 316L – Provides exceptional resistance to corrosion and chemical exposure, making the gearbox suitable for demanding environments like food processing plants, cleanrooms, offshore, and chemical production.
Ø40H7 Stainless Steel Hollow Output Shaft – Facilitates easy integration with driven components and ensures hygienic, corrosion-resistant performance in washdown environments.
Input Shaft Diameter 19 mm with interface 80B14 – Standard motor interface ensures compatibility with a wide range of IEC motors, simplifying design and reducing installation time across machinery platforms.
92% Mechanical Efficiency – Ensures minimized power losses during operation, leading to energy savings and lower heat generation, which contributes to longer service life and reduced maintenance intervals.
Compact Gear Size X74N with 4-Stage Transmission – Optimized to deliver high torque in space-constrained installations. Perfect for use in conveyors, lifting devices, and packaging units where physical footprint matters.
BCD input/output dimensions: 100 / 130 mm – Facilitates direct mechanical mounting onto standardized frames and transmission assemblies for seamless system integration.The Clean-Geartech X74N gearbox is the premium choice for engineers seeking hygienic, high-performance, and mechanically robust gear solutions across demanding industrial sectors.
High Gear Ratio of 222.52:1 – Enables high torque transmission with extremely precise speed reduction, ideal for applications requiring slow, controlled motion such as conveyor systems, mixers, and automated dosing mechanisms.
Constructed entirely from Stainless Steel AISI 316L – Provides exceptional resistance to corrosion and chemical exposure, making the gearbox suitable for demanding environments like food processing plants, cleanrooms, offshore, and chemical production.
Ø40H7 Stainless Steel Hollow Output Shaft – Facilitates easy integration with driven components and ensures hygienic, corrosion-resistant performance in washdown environments.
Input Shaft Diameter 19 mm with interface 80B14 – Standard motor interface ensures compatibility with a wide range of IEC motors, simplifying design and reducing installation time across machinery platforms.
92% Mechanical Efficiency – Ensures minimized power losses during operation, leading to energy savings and lower heat generation, which contributes to longer service life and reduced maintenance intervals.
Compact Gear Size X74N with 4-Stage Transmission – Optimized to deliver high torque in space-constrained installations. Perfect for use in conveyors, lifting devices, and packaging units where physical footprint matters.
BCD input/output dimensions: 100 / 130 mm – Facilitates direct mechanical mounting onto standardized frames and transmission assemblies for seamless system integration.The Clean-Geartech X74N gearbox is the premium choice for engineers seeking hygienic, high-performance, and mechanically robust gear solutions across demanding industrial sectors.
