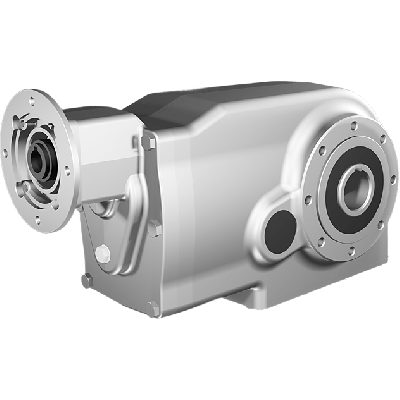

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 205,95:1, input 80B14, V5, stainless steel
HV82PX74NI10-FFBN-RV5-D-OFIt features a gear ratio of 205.95:1 and an efficiency of 92%. The gear input shaft is 19 mm, and the output shaft is Ø40H7 mm. The gearbox utilizes stainless steel AISI 316L gears, making it highly durable in aggressive and hygienic applications. The device integrates with motors via an 80B14 interface, and its gear size is X74N. Built with 4 gear stages, and a BCD input of 100 and BCD output of 130, the unit is suited for precision mechanical systems requiring robust, corrosion-resistant drivetrain solutions.
Specifications
Product description
Downloads
€4,438.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
205,95:1
BCD input
100
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X74N
Output speed at 1400 RPM
6.8
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.52
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Product: Clean-Geartech X74N, Bevel Gearbox, Stainless Steel Hollow Shaft Ø40H7, 205.95:1 Ratio, B14 Input FlangeMain Specifications:- Gear Ratio: 205.95:1 - Input BCD: 100 - Output BCD: 130 - Gear Input Shaft: Ø19 mm - Gear Output Shaft: Ø40H7 mm (Stainless Steel Hollow Shaft) - Gear Motor Interface: 80B14 - Gear Size: X74N - Gear Stages: 4-stage reduction - Material: Full stainless steel AISI 316L - Efficiency: Up to 92% - Manufacturer: Clean-Geartech Key Features and Application Possibilities:
- High gear ratio of 205.95:1 enables precise speed reduction and torque multiplication, ideal for processes requiring slow and steady motion such as conveyor systems, mixers, and dosing units.
- Excellent efficiency rating of 92% ensures minimal energy loss, improving system performance in demanding 24/7 industrial operations such as automated packaging lines or material handling systems.
- Constructed entirely of AISI 316L stainless steel, the unit offers outstanding corrosion resistance in aggressive environments, making it suitable for CIP/SIP systems, and exposure to salts, acids, or alkaline cleanings.
- The Ø40H7 stainless steel hollow output shaft allows direct mounting over driven shafts, reducing need for intermediate couplings while enhancing hygienic design and mechanical alignment.
- Compact 4-stage gearbox design ensures high torque transmission within a small footprint, ideal for restricted installations in machinery frameworks or process equipment.
- B14 motor interface (Ø80 mm) offers broad compatibility with IEC standard motors, enabling simple integration or retrofitting within existing systems.
- High structural and surface-grade finish minimizes bacterial adhesion and facilitates easy washdown, meeting stringent hygienic requirements in food-grade or pharmaceutical production lines.
- X74N size category balances performance and space optimization across diverse automation and mechanical drive applications, from filling machines to rotary process equipment.
- High gear ratio of 205.95:1 enables precise speed reduction and torque multiplication, ideal for processes requiring slow and steady motion such as conveyor systems, mixers, and dosing units.
- Excellent efficiency rating of 92% ensures minimal energy loss, improving system performance in demanding 24/7 industrial operations such as automated packaging lines or material handling systems.
- Constructed entirely of AISI 316L stainless steel, the unit offers outstanding corrosion resistance in aggressive environments, making it suitable for CIP/SIP systems, and exposure to salts, acids, or alkaline cleanings.
- The Ø40H7 stainless steel hollow output shaft allows direct mounting over driven shafts, reducing need for intermediate couplings while enhancing hygienic design and mechanical alignment.
- Compact 4-stage gearbox design ensures high torque transmission within a small footprint, ideal for restricted installations in machinery frameworks or process equipment.
- B14 motor interface (Ø80 mm) offers broad compatibility with IEC standard motors, enabling simple integration or retrofitting within existing systems.
- High structural and surface-grade finish minimizes bacterial adhesion and facilitates easy washdown, meeting stringent hygienic requirements in food-grade or pharmaceutical production lines.
- X74N size category balances performance and space optimization across diverse automation and mechanical drive applications, from filling machines to rotary process equipment.
