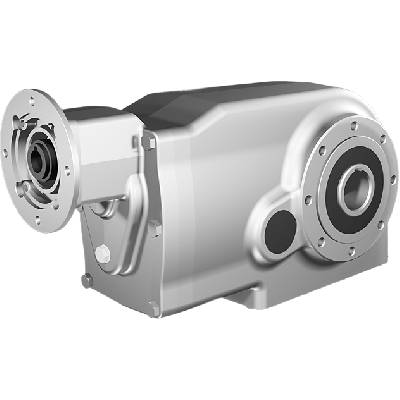

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 205,95:1, input 80B14, B3, stainless steel
HV82PX74NI10-FFBN-RB3-D-OFIt features a gear ratio of 205.95:1 and four gear stages for torque-intensive applications. The gear size is X74N and the interface is 80B14, allowing standard gear motor integration. The gear input shaft diameter is 19 mm, while the output shaft is a Ø40 mm H7 hollow shaft. With a mechanical efficiency of 92% and BCD input/output of 100/130, it delivers reliable performance. The gears are made from AISI 316L stainless steel for high corrosion resistance, suitable for hygienic and industrial applications.
Specifications
Product description
Downloads
€4,304.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
205,95:1
BCD input
100
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X74N
Output speed at 1400 RPM
6.8
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.52
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a trusted manufacturer specializing in high-performance stainless steel gearboxes for demanding industrial applications. Known for durability, hygiene, and engineering precision, Clean-Geartech’s products are widely used in industries such as food processing, pharmaceuticals, and chemical handling. Their gear systems combine corrosion resistance with optimized mechanical design for maximum operational reliability and long service life.Key Features and Application Benefits:
High corrosion resistance with AISI 316L stainless steel housing and internal components – ideal for cleanroom, hygiene-sensitive, and harsh chemical environments.
Bevel gear design ensures high torque transfer efficiency and quiet operation – excellent for conveyors, packaging machinery, and processing systems.
Hollow output shaft Ø40H7 made from stainless steel offers easy assembly and maximum compatibility with various driven elements – supports rigid and hygienic shaft mounting options.
Large gear ratio of 205.95:1 allows for significant torque multiplication with lower output speed – suitable for controlled motion in dosing systems, mixers, and agitators.
Four-stage gear configuration ensures smooth torque conversion and reduced backlash – supports precision applications in automation and material handling industries.
BCD input 100 mm and BCD output 130 mm provide installation flexibility with wide integration compatibility – facilitates mounting in legacy systems or OEM setups.
High efficiency of 92% minimizes energy loss and improves overall system performance – supports energy-saving objectives in continuous-operation environments.
Compatible with 80B14 motor interface – allows easy integration with IEC standard motors for rapid system setup and replacement.
Input shaft Ø19 mm supports high input speed and robustness – ideal for high-duty cycles and continuous operation processes.
Compact gear size (X74N) delivers a high-performing power transfer in limited-space installations – optimal for mobile equipment or compact machinery frames. Engineered for technical specialists, engineers, and system integrators, the Clean-Geartech X74N gearbox provides enduring reliability, low-maintenance operation, and mechanical precision critical for industrial performance.
High corrosion resistance with AISI 316L stainless steel housing and internal components – ideal for cleanroom, hygiene-sensitive, and harsh chemical environments.
Bevel gear design ensures high torque transfer efficiency and quiet operation – excellent for conveyors, packaging machinery, and processing systems.
Hollow output shaft Ø40H7 made from stainless steel offers easy assembly and maximum compatibility with various driven elements – supports rigid and hygienic shaft mounting options.
Large gear ratio of 205.95:1 allows for significant torque multiplication with lower output speed – suitable for controlled motion in dosing systems, mixers, and agitators.
Four-stage gear configuration ensures smooth torque conversion and reduced backlash – supports precision applications in automation and material handling industries.
BCD input 100 mm and BCD output 130 mm provide installation flexibility with wide integration compatibility – facilitates mounting in legacy systems or OEM setups.
High efficiency of 92% minimizes energy loss and improves overall system performance – supports energy-saving objectives in continuous-operation environments.
Compatible with 80B14 motor interface – allows easy integration with IEC standard motors for rapid system setup and replacement.
Input shaft Ø19 mm supports high input speed and robustness – ideal for high-duty cycles and continuous operation processes.
Compact gear size (X74N) delivers a high-performing power transfer in limited-space installations – optimal for mobile equipment or compact machinery frames. Engineered for technical specialists, engineers, and system integrators, the Clean-Geartech X74N gearbox provides enduring reliability, low-maintenance operation, and mechanical precision critical for industrial performance.
