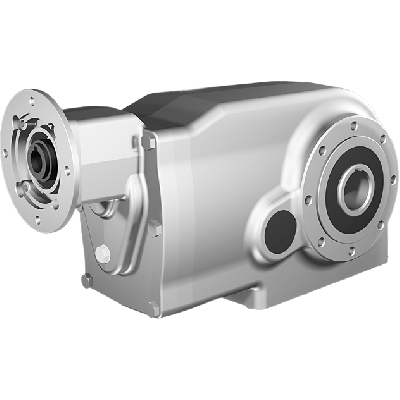

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 177,69:1, input 80B14, V5, stainless steel
HV82PX74NI09-FFBN-RV5-D-OFIt features a gear ratio of 177.69:1 and a gear efficiency of 92%, ensuring reliable torque transmission. The gear input shaft diameter is 19 mm and the gear output shaft is a Ø40H7 hollow shaft, supporting efficient mechanical coupling. The unit is configured with a gear motor interface of 80B14.All gear components are made from stainless steel AISI 316L, including the SS hollow output shaft, ensuring corrosion resistance in hygienic or aggressive environments. The gear size is X74N. It offers BCD input: 100 and BCD output: 130.
Specifications
Product description
Downloads
€4,438.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
177,69:1
BCD input
100
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X74N
Output speed at 1400 RPM
7.9
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.61
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer of premium-grade hygienic gear solutions tailored for the food, pharmaceutical, and chemical industries. With a commitment to durability, washdown resistance, and performance in sterile environments, Clean-Geartech designs gear units for maximum efficiency and compliance with strict industry standards.Product: Clean-Geartech X74N Bevel Gearbox Ratio: 177.69:1 Output Shaft: Ø40H7 Hollow Shaft, Stainless Steel Input Interface: IEC 80B14 Flange Material: AISI 316L Stainless Steel Efficiency: 92% Gear Stages: 4 Input Shaft Diameter: 19 mm Key Features and Application Benefits:
• The X74N gearbox features a high reduction ratio of 177.69:1, ideal for low-speed, high-torque operations in automated processing lines and material handling systems.
• Constructed from AISI 316L stainless steel, the housing provides exceptional corrosion resistance, making it ideal for harsh washdown environments such as food and dairy production zones.
• Equipped with a Ø40H7 stainless steel hollow output shaft, this gear unit allows for easy integration with drive shafts and ensures long-term durability under dynamic loads.
• The integrated IEC 80B14 motor interface enables flexible motor mounting compatibility and simplified mechanical integration into existing systems.
• With an energy efficiency rating of 92%, this gearbox supports sustainability goals while minimizing energy loss in precision motion applications.
• The 4-stage bevel gear system allows for compact, high-performance torque transmission, suitable for conveyor systems, mixers, and processing equipment in clean room or aseptic conditions.
• Clean-Geartech's hygiene-centric product design supports compliance with EHEDG and FDA guidelines where required, contributing to food safety and contamination control.
• Its robust mechanical structure and precision manufacturing ensure quiet operation and minimal maintenance, reducing downtime in industrial environments.
• The X74N gearbox features a high reduction ratio of 177.69:1, ideal for low-speed, high-torque operations in automated processing lines and material handling systems.
• Constructed from AISI 316L stainless steel, the housing provides exceptional corrosion resistance, making it ideal for harsh washdown environments such as food and dairy production zones.
• Equipped with a Ø40H7 stainless steel hollow output shaft, this gear unit allows for easy integration with drive shafts and ensures long-term durability under dynamic loads.
• The integrated IEC 80B14 motor interface enables flexible motor mounting compatibility and simplified mechanical integration into existing systems.
• With an energy efficiency rating of 92%, this gearbox supports sustainability goals while minimizing energy loss in precision motion applications.
• The 4-stage bevel gear system allows for compact, high-performance torque transmission, suitable for conveyor systems, mixers, and processing equipment in clean room or aseptic conditions.
• Clean-Geartech's hygiene-centric product design supports compliance with EHEDG and FDA guidelines where required, contributing to food safety and contamination control.
• Its robust mechanical structure and precision manufacturing ensure quiet operation and minimal maintenance, reducing downtime in industrial environments.
