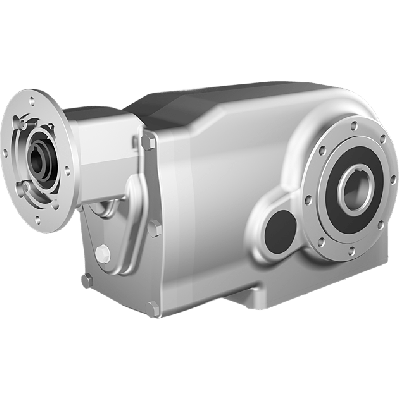

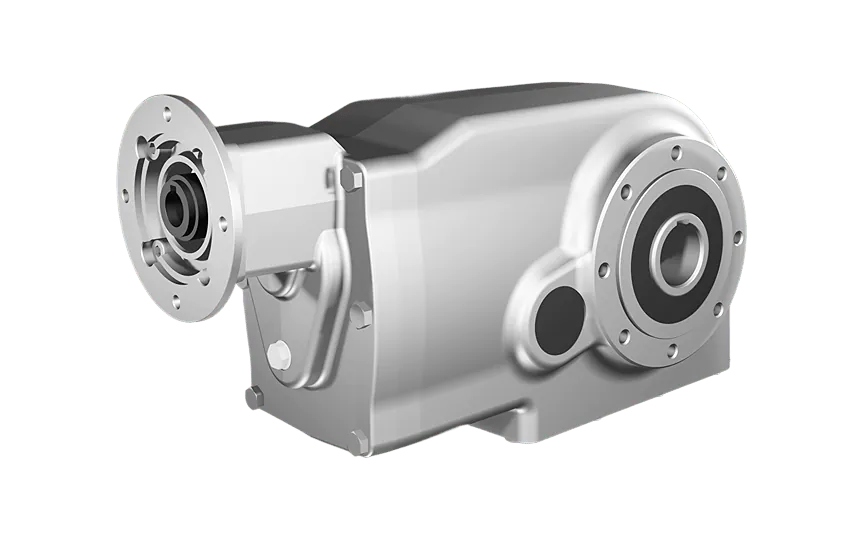

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 163,02:1, input 80B14, V5, stainless steel
HV82PX74NI08-FFBN-RV5-D-OFFeaturing a gear ratio of 163.02:1 and 4 gear stages, this unit delivers reliable torque conversion with a high efficiency of 92%. The gear input shaft is 19 mm and connects via a standardized 80B14 motor interface, enabling straightforward integration. The gear output shaft is Ø40 mm H7 hollow design for versatility.Built with AISI 316L stainless steel gears, it offers excellent resistance to corrosion and is suited for hygienic or aggressive environments. The gear size is X74N and the overall unit supports BCD input of 100 and BCD output of 130.
Specifications
Product description
Downloads
€4,438.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
163,02:1
BCD input
100
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X74N
Output speed at 1400 RPM
8.6
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.66
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand description: Clean-Geartech is a recognized industry leader specializing in the design and production of high-performance stainless steel gear units. With a strong focus on demanding industrial environments such as food processing, pharmaceuticals, and marine applications, Clean-Geartech products offer superior durability, hygiene compliance, and corrosion resistance. Their advanced engineering solutions are trusted by technical professionals who require highly reliable, clean-duty drive systems for mission-critical applications.Key Features, Benefits, and Industrial Applications:
• Fully stainless steel construction (AISI 316L) – delivers outstanding corrosion resistance, ideal for aggressive washdown environments such as food & beverage processing, chemical handling, and pharmaceutical manufacturing.
• Precision-machined Ø40H7 hollow output shaft in stainless steel – allows for direct torque transmission, saves space, supports easy integration with driven components in hygienically critical equipment.
• 163.02:1 gear ratio – optimized for applications that require high torque and low output speed, such as agitators, mixers, conveyors, and dosing systems.
• High efficiency (92%) – ensures excellent energy utilization with reduced heat generation, improving overall system performance in continuous-duty operations.
• 4 gear stages – allows for compact torque multiplication and smooth power transmission, supporting machinery that requires high mechanical advantage in limited space.
• Gear motor interface type 80B14 – compatible with standard IEC flange motors, enabling flexible motor selection and easy retrofitting.
• Input shaft ø19 mm – ensures robust connection to motor or drive system, supporting mechanical compatibility in industrial gearboxes, mixers, and automation drives.
• Gear Size X74N – compact footprint suitable for space-constrained industrial systems without compromising performance.
• Designed for technical specialists – ideal for engineers focused on hygienic design, reliable torque transmission, and optimized gear performance in regulated industrial sectors.
• Fully stainless steel construction (AISI 316L) – delivers outstanding corrosion resistance, ideal for aggressive washdown environments such as food & beverage processing, chemical handling, and pharmaceutical manufacturing.
• Precision-machined Ø40H7 hollow output shaft in stainless steel – allows for direct torque transmission, saves space, supports easy integration with driven components in hygienically critical equipment.
• 163.02:1 gear ratio – optimized for applications that require high torque and low output speed, such as agitators, mixers, conveyors, and dosing systems.
• High efficiency (92%) – ensures excellent energy utilization with reduced heat generation, improving overall system performance in continuous-duty operations.
• 4 gear stages – allows for compact torque multiplication and smooth power transmission, supporting machinery that requires high mechanical advantage in limited space.
• Gear motor interface type 80B14 – compatible with standard IEC flange motors, enabling flexible motor selection and easy retrofitting.
• Input shaft ø19 mm – ensures robust connection to motor or drive system, supporting mechanical compatibility in industrial gearboxes, mixers, and automation drives.
• Gear Size X74N – compact footprint suitable for space-constrained industrial systems without compromising performance.
• Designed for technical specialists – ideal for engineers focused on hygienic design, reliable torque transmission, and optimized gear performance in regulated industrial sectors.
