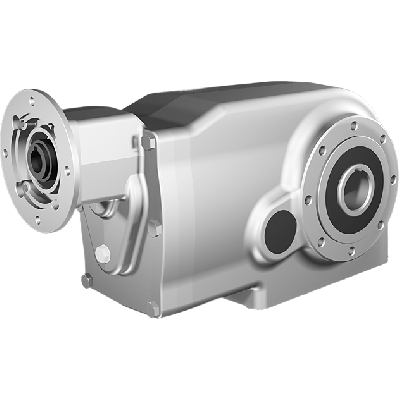

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 152,21:1, input 80B14, V5, stainless steel
HV82PX74NI07-FFBN-RV5-D-OFThis gearbox features a gear ratio of 152.21:1 and a 4-stage gear configuration, supporting torque transmission where high reduction is needed. It includes a Ø40 mm output hollow shaft and a Ø19 mm input shaft. The gear material is stainless steel AISI 316L, ensuring longevity in harsh environments. The gear motor interface is 80B14, allowing standardized mounting. With a BCD input of 100 mm and a BCD output of 130 mm, it integrates efficiently into machine assemblies. Overall efficiency is 92%, and the compact gear size is X74N.
Specifications
Product description
Downloads
€4,438.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
152,21:1
BCD input
100
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X74N
Output speed at 1400 RPM
9.2
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.71
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X74N is a high-performance bevel gearbox engineered for industrial applications requiring reliable torque transmission with a compact design and superior environmental resistance. Manufactured by Clean-Geartech – a premium European brand specializing in hygienic and corrosion-resistant gear solutions – this unit is tailored for demanding sectors such as food & beverage, pharmaceuticals, marine, and chemical processing.With a four-stage reduction and a high gear ratio of 152.21:1, the X74N supports robust torque conversion at high efficiency. The materials and interface options are optimized for custom machinery, automation systems, and cleanroom environments.Main Features and Application Benefits:
● Gear housing and components made from AISI 316L stainless steel ensure exceptional corrosion resistance, ideal for Clean-In-Place (CIP) processes and harsh washdown environments.
● Hollow output shaft Ø40H7 in stainless steel allows for easy and secure connection to drive elements in conveyor systems, mixers, or augers, minimizing the need for additional couplings.
● Input flange standardized to IEC 80B14 supports direct mounting of compatible IEC motors without custom adaptors, streamlining system integration.
● High gear ratio of 152.21:1 enables smooth torque delivery in low-speed, high-load applications such as dosing equipment, meat processing machines, or pharmaceutical rotary systems.
● Four-stage reduction architecture provides optimal balance between torque output and space efficiency, supporting compact machine layouts in tight production lines.
● 92% mechanical efficiency reduces energy consumption and heat generation, catering to energy-conscious facilities and reducing the need for additional cooling components.
● 19 mm input shaft dimension allows standardized motor coupling, enhancing modularity for OEM machinery builders and integrators.
● X74N gear size provides a consistent mounting footprint for scalability or multi-axis systems, improving serviceability and replacement planning.
● Clean-Geartech’s precision engineering and commitment to hygienic design make this gearbox a trusted choice for environments with stringent contamination control standards.
● Gear housing and components made from AISI 316L stainless steel ensure exceptional corrosion resistance, ideal for Clean-In-Place (CIP) processes and harsh washdown environments.
● Hollow output shaft Ø40H7 in stainless steel allows for easy and secure connection to drive elements in conveyor systems, mixers, or augers, minimizing the need for additional couplings.
● Input flange standardized to IEC 80B14 supports direct mounting of compatible IEC motors without custom adaptors, streamlining system integration.
● High gear ratio of 152.21:1 enables smooth torque delivery in low-speed, high-load applications such as dosing equipment, meat processing machines, or pharmaceutical rotary systems.
● Four-stage reduction architecture provides optimal balance between torque output and space efficiency, supporting compact machine layouts in tight production lines.
● 92% mechanical efficiency reduces energy consumption and heat generation, catering to energy-conscious facilities and reducing the need for additional cooling components.
● 19 mm input shaft dimension allows standardized motor coupling, enhancing modularity for OEM machinery builders and integrators.
● X74N gear size provides a consistent mounting footprint for scalability or multi-axis systems, improving serviceability and replacement planning.
● Clean-Geartech’s precision engineering and commitment to hygienic design make this gearbox a trusted choice for environments with stringent contamination control standards.
