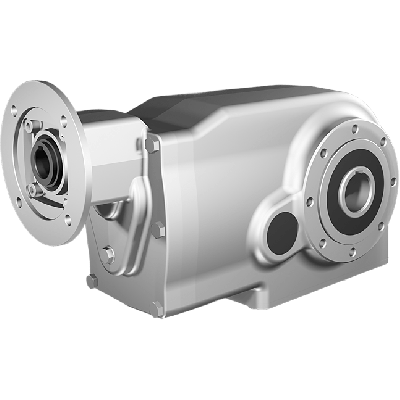

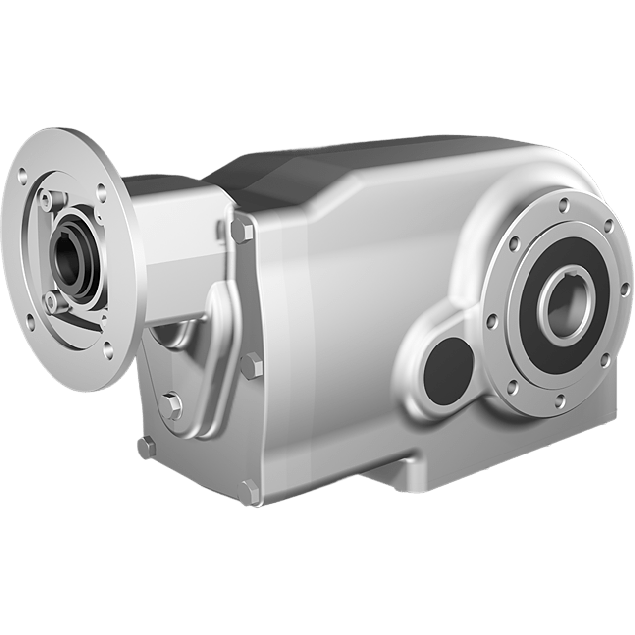

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 139,64:1, input 90B14, V5, stainless steel
HV82PX74NI06-FFBN-TV5-E-OFThis gear unit features a gear size of X74N and is built with 4 gear stages to support a gear ratio of 139.64:1. With a gear input shaft diameter of 24 mm and a gear output shaft diameter of 40 mm, it ensures reliable torque transmission. The gear motor interface is 90B14, making it compatible with standard motor mounts.Constructed with stainless steel AISI 316L gears, it offers excellent resistance to corrosion. It has a mechanical efficiency of 92%. The unit supports a BCD input of 115 and a BCD output of 130.
Specifications
Product description
Downloads
€4,457.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
139,64:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
10
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.77
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned European manufacturer specializing in high-performance gear units designed for demanding industrial and hygienic applications. Known for their use of premium materials such as AISI 316L stainless steel and precision-engineered components, Clean-Geartech products are synonymous with reliability, efficiency, and clean design – ideal for food, pharmaceutical, chemical, and marine industries.Key Features, Functional Advantages, and Applications:
Stainless Steel AISI 316L Gear Housing – Provides exceptional resistance to corrosion and aggressive cleaning agents, making it suitable for hygienic environments such as food processing and pharmaceutical production.
Hollow Output Shaft Ø40H7 in Stainless Steel – Enables direct drive coupling with driven components, ensuring compact installation and optimal torque transmission with minimal backlash.
Input Interface 90B14 – Standardized flange mounting supports compatibility with various IEC motor configurations, streamlining integration into existing systems.
High Gear Ratio of 139.64:1 – Delivers significant torque multiplication, ideal for applications requiring precise speed reduction and power control, such as conveyor systems and indexing mechanisms.
Gear Size X74N, Four-Stage Design – Multi-stage gear reduction structure ensures smooth transmission operation and durability under continuous cycle loads.
Input Shaft Diameter 24 mm – Supports high torque inputs while maintaining vibration-free operation through precision machining and dynamic balancing.
Efficiency of 92% – High-performance bevel gear design ensures minimal power loss, supporting energy efficiency and lower operational costs.
Compact, Sealed Construction – Hermetically sealed body reduces contamination risks and allows for installation in cleanrooms or wet environments without additional enclosures.
Ideal for Use in Harsh or Regulated Environments – Suitable for clean-in-place (CIP) processes, chemical handling installations, offshore platforms, or high-humidity zones.Clean-Geartech’s X74N bevel gearbox delivers robust performance, hygienic compliance, and high adaptability for precision-driven mechanical systems.
Stainless Steel AISI 316L Gear Housing – Provides exceptional resistance to corrosion and aggressive cleaning agents, making it suitable for hygienic environments such as food processing and pharmaceutical production.
Hollow Output Shaft Ø40H7 in Stainless Steel – Enables direct drive coupling with driven components, ensuring compact installation and optimal torque transmission with minimal backlash.
Input Interface 90B14 – Standardized flange mounting supports compatibility with various IEC motor configurations, streamlining integration into existing systems.
High Gear Ratio of 139.64:1 – Delivers significant torque multiplication, ideal for applications requiring precise speed reduction and power control, such as conveyor systems and indexing mechanisms.
Gear Size X74N, Four-Stage Design – Multi-stage gear reduction structure ensures smooth transmission operation and durability under continuous cycle loads.
Input Shaft Diameter 24 mm – Supports high torque inputs while maintaining vibration-free operation through precision machining and dynamic balancing.
Efficiency of 92% – High-performance bevel gear design ensures minimal power loss, supporting energy efficiency and lower operational costs.
Compact, Sealed Construction – Hermetically sealed body reduces contamination risks and allows for installation in cleanrooms or wet environments without additional enclosures.
Ideal for Use in Harsh or Regulated Environments – Suitable for clean-in-place (CIP) processes, chemical handling installations, offshore platforms, or high-humidity zones.Clean-Geartech’s X74N bevel gearbox delivers robust performance, hygienic compliance, and high adaptability for precision-driven mechanical systems.
