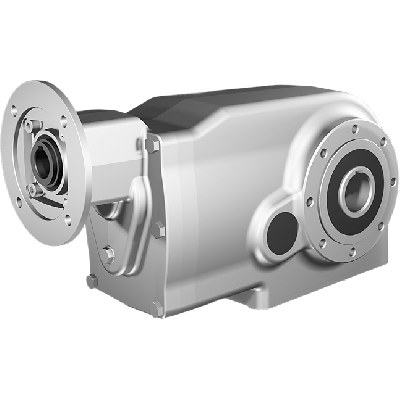

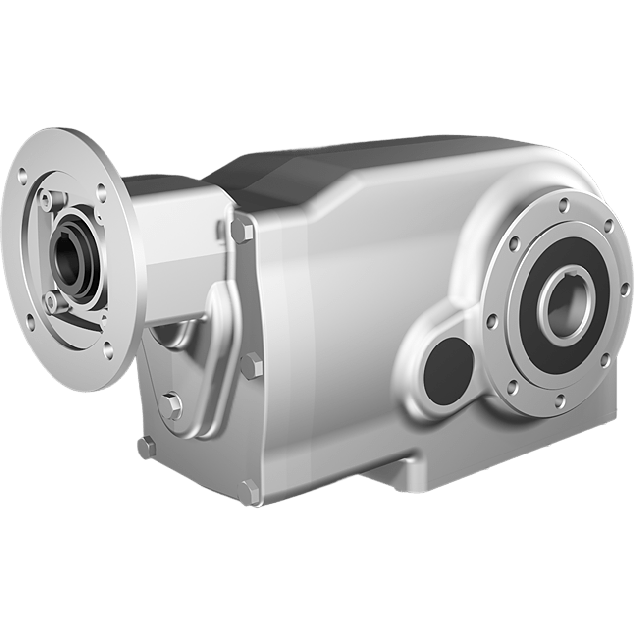

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 139,64:1, input 90B14, B3, stainless steel
HV82PX74NI06-FFBN-TB3-E-OFThis unit features a gear ratio of 139.64:1 and efficiency of 92%, making it suitable for applications where torque multiplication is critical. The AISI 316L stainless steel gear material ensures corrosion resistance and long service life in harsh environments. It has a gear input shaft diameter of 24 mm and a gear output shaft diameter of 40 mm. The gear motor interface is 90B14, and the unit's gear size is X74N. With 4 gear stages, it provides stable performance for complex setups. Input BCD is 115 mm, and output BCD is 130 mm.
Specifications
Product description
Downloads
€4,323.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
139,64:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
10
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.77
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer: Clean-GeartechBrand Overview: As a trusted manufacturer specializing in hygienic and corrosion-resistant power transmission solutions, Clean-Geartech delivers premium stainless steel gear units engineered for demanding industrial environments. Their products are designed to meet the highest standards in the pharmaceutical, food processing, marine, and chemical industries, where hygiene, durability, and precision are critical.Key Features and Applications – Technical Overview:
Robust Housing in AISI 316L Stainless Steel: Delivers exceptional resistance to corrosion in aggressive and washdown environments; ideal for food & beverage, marine, and pharmaceutical processing.
High Torque Bevel Gear Design with 4 Stages: Multi-stage gearing enables large reduction ratios with smooth torque transmission, suitable for precise positioning systems and heavy-duty automation.
Hollow Output Shaft Ø40H7 in Stainless Steel (SS Hollow Shaft): Ensures direct connection to driven components while maintaining corrosion resistance in sanitary or corrosive settings; eliminates the need for output couplings.
Efficient Power Transfer at 92% Efficiency: Optimized gear geometry and mechanical design maximize energy use, reducing heat generation and operating costs in continuous-duty processes.
Compact Gear Size (X74N) with High Ratio 139.64:1: Allows for high torque output in limited installation spaces, ideal for integration in compact equipment layouts or retrofit projects.
Input Interface 90B14 Flange with 24mm Input Shaft: Compatible with a wide range of standard IEC motors, simplifying installation and maintenance in modular drive systems.
Precision Manufacturing and Alignment: Guarantees low backlash and high positional accuracy, critical in robotics, packaging machinery, and instrumentation applications.
BCD Input 115 mm / BCD Output 130 mm: Standard bolt pattern interfaces ensure compatibility with a variety of motor and output mounting configurations.This bevel gear unit from Clean-Geartech merges hygiene-friendly design with mechanical precision, making it the optimal drivetrain component for technical specialists working in environments with strict sanitary and reliability demands.
Robust Housing in AISI 316L Stainless Steel: Delivers exceptional resistance to corrosion in aggressive and washdown environments; ideal for food & beverage, marine, and pharmaceutical processing.
High Torque Bevel Gear Design with 4 Stages: Multi-stage gearing enables large reduction ratios with smooth torque transmission, suitable for precise positioning systems and heavy-duty automation.
Hollow Output Shaft Ø40H7 in Stainless Steel (SS Hollow Shaft): Ensures direct connection to driven components while maintaining corrosion resistance in sanitary or corrosive settings; eliminates the need for output couplings.
Efficient Power Transfer at 92% Efficiency: Optimized gear geometry and mechanical design maximize energy use, reducing heat generation and operating costs in continuous-duty processes.
Compact Gear Size (X74N) with High Ratio 139.64:1: Allows for high torque output in limited installation spaces, ideal for integration in compact equipment layouts or retrofit projects.
Input Interface 90B14 Flange with 24mm Input Shaft: Compatible with a wide range of standard IEC motors, simplifying installation and maintenance in modular drive systems.
Precision Manufacturing and Alignment: Guarantees low backlash and high positional accuracy, critical in robotics, packaging machinery, and instrumentation applications.
BCD Input 115 mm / BCD Output 130 mm: Standard bolt pattern interfaces ensure compatibility with a variety of motor and output mounting configurations.This bevel gear unit from Clean-Geartech merges hygiene-friendly design with mechanical precision, making it the optimal drivetrain component for technical specialists working in environments with strict sanitary and reliability demands.
