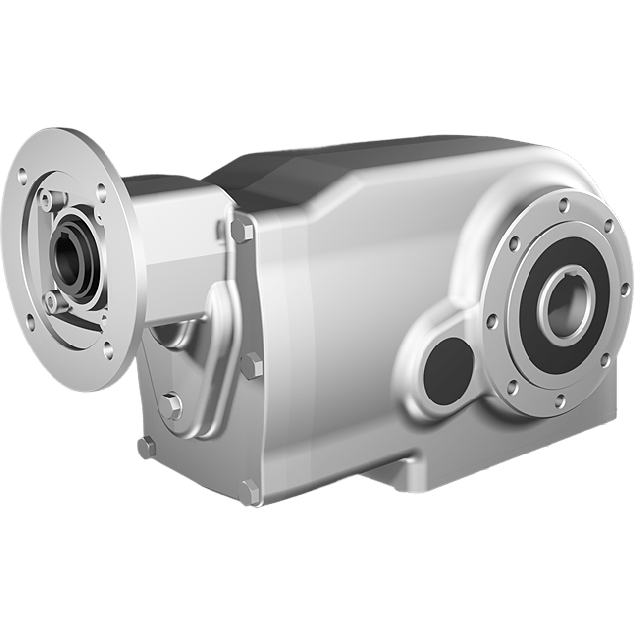

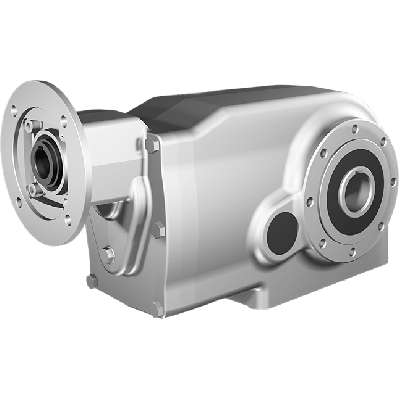

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 121,45:1, input 90B14, V5, stainless steel
HV82PX74NI05-FFBN-TV5-E-OFIt features a gear ratio of 121.45:1 and a 4-stage gear configuration, ensuring reliable torque transmission. The gear size is X74N, with a 24 mm input shaft and a Ø40 mm H7 output hollow shaft. Constructed with GEAR material: stainless steel AISI 316L, all major load-carrying components are corrosion resistant. The input interface is 90B14 for standard motor compatibility. System specifications include 92% mechanical efficiency, BCD input: 115 mm and BCD output: 130 mm. This setup provides both robust mechanical performance and hygiene-focused material compliance.
Specifications
Product description
Downloads
€4,457.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
121,45:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
11.5
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.89
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a recognized manufacturer specializing in high-performance stainless-steel gearboxes for demanding environments in the food, pharmaceutical, marine, and chemical industries. All products are engineered for maximum reliability, washdown resistance, and hygiene, making them ideal for applications where corrosion resistance and compliance with strict cleanliness standards are required.Product Description:
Highly corrosion-resistant AISI 316L stainless steel housing ensures durability in aggressive environments, such as pharmaceutical production, chemical handling or food processing.
The 121.45:1 gear ratio and four-stage design provide high torque output and precision reduction, ideal for applications requiring low-speed, high-force rotary motion like mixers, conveyors, and automated processing lines.
Integrated Ø40H7 stainless steel hollow output shaft (SS hollow shaft) allows space-saving direct integration with driven components, reducing the need for couplings and minimizing mechanical complexity.
90B14 motor interface supports standard IEC electric motors, simplifying system integration and allowing flexible motor selection across industrial applications.
24 mm input shaft sized for compact power transmission setups enables mechanical compatibility with a wide range of drive systems in process and manufacturing plants.
92% mechanical efficiency contributes to reduced energy consumption and less heat generation, making it optimal for continuous-duty applications and sustainable system design.
Compact X74N gear size eases installation in tight spaces, which is essential for cleanroom environments or machinery with limited mounting areas.
Bevel gear design supports angular power transfer, enabling 90° direction changes—ideal for modular conveyor systems or automation lines with geometric constraints.
Engineered to operate reliably under frequent washdowns with caustic cleaning agents, maintaining mechanical performance without compromising hygiene requirements in regulated sectors.
Clean-Geartech’s robust manufacturing and compliance with international standards make this gearbox ideal for OEMs and engineers focused on long-term operational stability and low total cost of ownership in demanding sector environments.
Highly corrosion-resistant AISI 316L stainless steel housing ensures durability in aggressive environments, such as pharmaceutical production, chemical handling or food processing.
The 121.45:1 gear ratio and four-stage design provide high torque output and precision reduction, ideal for applications requiring low-speed, high-force rotary motion like mixers, conveyors, and automated processing lines.
Integrated Ø40H7 stainless steel hollow output shaft (SS hollow shaft) allows space-saving direct integration with driven components, reducing the need for couplings and minimizing mechanical complexity.
90B14 motor interface supports standard IEC electric motors, simplifying system integration and allowing flexible motor selection across industrial applications.
24 mm input shaft sized for compact power transmission setups enables mechanical compatibility with a wide range of drive systems in process and manufacturing plants.
92% mechanical efficiency contributes to reduced energy consumption and less heat generation, making it optimal for continuous-duty applications and sustainable system design.
Compact X74N gear size eases installation in tight spaces, which is essential for cleanroom environments or machinery with limited mounting areas.
Bevel gear design supports angular power transfer, enabling 90° direction changes—ideal for modular conveyor systems or automation lines with geometric constraints.
Engineered to operate reliably under frequent washdowns with caustic cleaning agents, maintaining mechanical performance without compromising hygiene requirements in regulated sectors.
Clean-Geartech’s robust manufacturing and compliance with international standards make this gearbox ideal for OEMs and engineers focused on long-term operational stability and low total cost of ownership in demanding sector environments.
