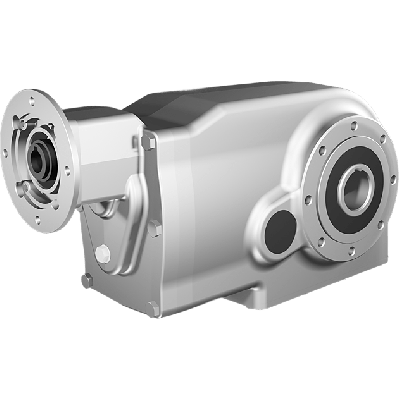

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 121,45:1, input 80B14, V5, stainless steel
HV82PX74NI05-FFBN-RV5-D-OFThis unit features a gear ratio of 121.45:1 and delivers efficiency of 92%. It is built with stainless steel AISI 316L gears for enhanced durability. The gear output shaft measures 40 mm (Ø40H7 hollow), and the input shaft diameter is 19 mm. The gear size is X74N and it incorporates 4 gear stages for torque management. The gear motor interface is 80B14, facilitating integration in standard motor setups. The Clean-Geartech X74N offers a BCD input of 100 and BCD output of 130. All key components are stainless to ensure resistance to aggressive media and washdown processes.
Specifications
Product description
Downloads
€4,438.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
121,45:1
BCD input
100
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X74N
Output speed at 1400 RPM
11.5
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.89
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description: Clean-Geartech is a trusted European manufacturer specializing in hygienic and highly durable gear solutions for demanding environments. Their product lines are engineered with premium materials, offering reliable performance in industries such as food processing, pharmaceuticals, chemical processing, and marine applications.Key Features, Benefits & Applications:
• Built with full AISI 316L stainless steel housing, the X74N gearbox offers exceptional corrosion resistance, making it ideal for hygienic environments including food & beverage, pharma, and offshore applications.
• High gear ratio of 121.45:1 enables significant torque multiplication and smooth speed reduction, providing precision in handling heavy loads and slow-speed processes.
• The Ø40H7 hollow output shaft in stainless steel allows easy integration with standard industrial shafts and high compatibility in washdown areas where durability and hygiene are critical.
• Designed with a Gear Motor Interface 80B14, facilitating quick and standardized mounting to IEC motors for modular setup and reduced installation time.
• With a compact input shaft of Ø19 mm stainless steel, this gearbox ensures stable operation, even in constrained mechanical assemblies.
• Four-stage bevel gear design guarantees efficient torque transmission while maintaining a compact footprint—ideal for space-limited installations.
• Achieves an efficiency rating of up to 92%, reducing energy loss and operational costs, especially important in 24/7 industrial operations.
• Gear size X74N balances a robust mechanical structure with optimized weight, delivering long service life under continuous duty cycles.
• Suitable for CIP (Clean-In-Place) systems and environments with aggressive cleaning agents, thanks to its sealed and hygienic design.
• The reliable, low-maintenance operation and stainless steel build make this bevel gearbox perfect for critical drive systems in conveyors, mixers, pumps, and dosing units. This Clean-Geartech solution reflects engineering excellence tailored for high-demand industrial environments where material integrity, performance, and maintainability are paramount.
• Built with full AISI 316L stainless steel housing, the X74N gearbox offers exceptional corrosion resistance, making it ideal for hygienic environments including food & beverage, pharma, and offshore applications.
• High gear ratio of 121.45:1 enables significant torque multiplication and smooth speed reduction, providing precision in handling heavy loads and slow-speed processes.
• The Ø40H7 hollow output shaft in stainless steel allows easy integration with standard industrial shafts and high compatibility in washdown areas where durability and hygiene are critical.
• Designed with a Gear Motor Interface 80B14, facilitating quick and standardized mounting to IEC motors for modular setup and reduced installation time.
• With a compact input shaft of Ø19 mm stainless steel, this gearbox ensures stable operation, even in constrained mechanical assemblies.
• Four-stage bevel gear design guarantees efficient torque transmission while maintaining a compact footprint—ideal for space-limited installations.
• Achieves an efficiency rating of up to 92%, reducing energy loss and operational costs, especially important in 24/7 industrial operations.
• Gear size X74N balances a robust mechanical structure with optimized weight, delivering long service life under continuous duty cycles.
• Suitable for CIP (Clean-In-Place) systems and environments with aggressive cleaning agents, thanks to its sealed and hygienic design.
• The reliable, low-maintenance operation and stainless steel build make this bevel gearbox perfect for critical drive systems in conveyors, mixers, pumps, and dosing units. This Clean-Geartech solution reflects engineering excellence tailored for high-demand industrial environments where material integrity, performance, and maintainability are paramount.
