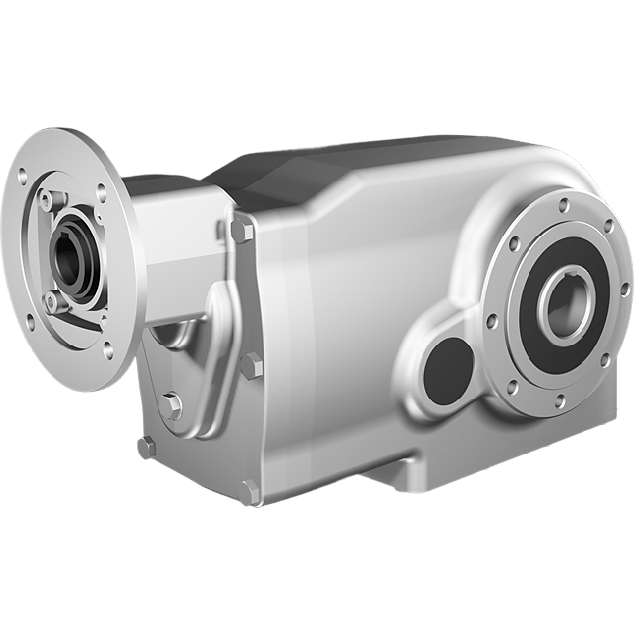

Clean-Geartech X74N, helical bevel gear Ø40H7 hollow shaft, 116,35:1, input 90B14, B3, stainless steel
HV82PX74NI04-FFBN-TB3-E-OFThis gearbox features a gear size: X74N and 4 gear stages for reliable torque transmission. The gear material: stainless steel AISI 316L ensures high resistance to corrosion. It has a gear ratio of 116.35:1 and delivers an operational efficiency of 92%. The input shaft diameter is 24 mm, and the output shaft is a Ø40 mm H7 hollow shaft. Compatible with motor interface 90B14, it supports input and output BCDs of 115 mm and 130 mm respectively.
Specifications
Product description
Downloads
€4,323.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
116,35:1
BCD input
115
BCD output
130
Gear stages
4
Efficiency (%)
92
Gear output shaft (mm)
40
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X74N
Output speed at 1400 RPM
12
Max output torque (Nm)
675
Max kW input at 1400 rpm
0.92
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted manufacturer known for its premium stainless steel gear solutions tailored for use in demanding industrial sectors. Leveraging high-quality materials like AISI 316L stainless steel and precision-engineered components, Clean-Geartech products are ideal for food processing, pharmaceutical environments, marine applications, and other industries requiring hygiene, corrosion resistance, and long life.Product Attributes and Application Features:
Robust housing and components made entirely of AISI 316L stainless steel ensure maximum corrosion resistance, ideal for aggressive cleaning procedures or operation in corrosive environments (e.g., chemical processing or offshore applications).
Gear ratio of 116.35:1 provides high torque output, making it suitable for low-speed, high-load applications such as conveyors, mixers, and lifting mechanisms.
SS Ø40H7 hollow output shaft enables direct shaft mounting, optimizing installation in limited space or hygienic environments by reducing coupling components.
High mechanical efficiency of 92% reduces energy consumption and heat build-up, improving system performance in continuous-duty applications such as automation systems or processing lines.
4-stage bevel gear configuration ensures smooth, quiet operation with high load capacity — optimal for precision equipment and cleanroom machinery.
Input shaft diameter of 24 mm supports versatile motor integration, particularly suitable for medium to large-sized electric motors in various industrial drive systems.
90B14 motor interface ensures seamless compatibility with standard IEC motors, offering simplified motor replacement or upgrades without custom adapters.
Input BCD of 115 mm and output BCD of 130 mm makes it easy to align this gearbox with standard industrial flanges or couplings.
Gear size X74N provides a compact yet powerful footprint that fits into tight spaces without compromising performance. This precision-engineered gearbox is the optimal solution for engineers and system specialists requiring reliability, hygiene, and high mechanical performance in challenging industrial environments.
Robust housing and components made entirely of AISI 316L stainless steel ensure maximum corrosion resistance, ideal for aggressive cleaning procedures or operation in corrosive environments (e.g., chemical processing or offshore applications).
Gear ratio of 116.35:1 provides high torque output, making it suitable for low-speed, high-load applications such as conveyors, mixers, and lifting mechanisms.
SS Ø40H7 hollow output shaft enables direct shaft mounting, optimizing installation in limited space or hygienic environments by reducing coupling components.
High mechanical efficiency of 92% reduces energy consumption and heat build-up, improving system performance in continuous-duty applications such as automation systems or processing lines.
4-stage bevel gear configuration ensures smooth, quiet operation with high load capacity — optimal for precision equipment and cleanroom machinery.
Input shaft diameter of 24 mm supports versatile motor integration, particularly suitable for medium to large-sized electric motors in various industrial drive systems.
90B14 motor interface ensures seamless compatibility with standard IEC motors, offering simplified motor replacement or upgrades without custom adapters.
Input BCD of 115 mm and output BCD of 130 mm makes it easy to align this gearbox with standard industrial flanges or couplings.
Gear size X74N provides a compact yet powerful footprint that fits into tight spaces without compromising performance. This precision-engineered gearbox is the optimal solution for engineers and system specialists requiring reliability, hygiene, and high mechanical performance in challenging industrial environments.
