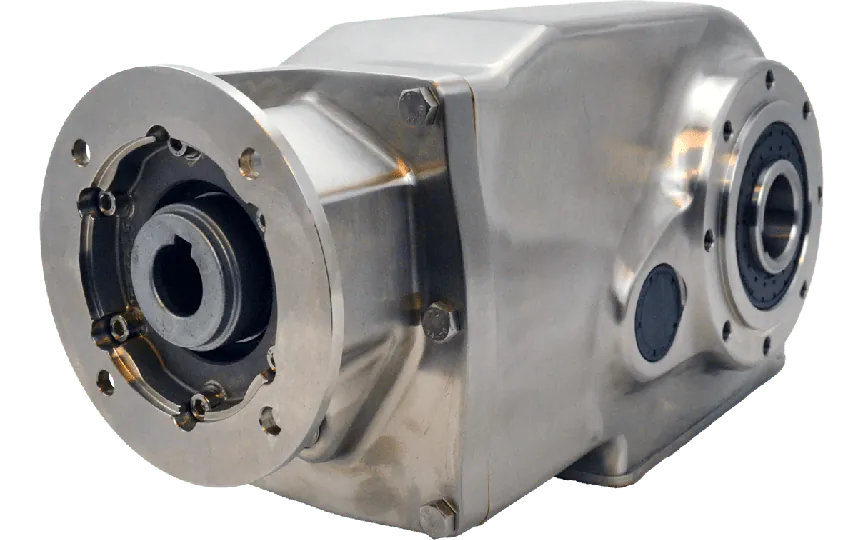

Clean-Geartech X73N, helical bevel gear Ø40H7 hollow shaft, 7,94:1, input 80B14, V5, stainless steel
HV82PX73NI01-FFBN-RV5-D-OFWith a gear ratio of 7.94:1 and three gear stages, it ensures controlled speed reduction and mechanical efficiency. The gear housing and components are made of stainless steel AISI 316L, providing resistance to aggressive environments. It features a Ø19 mm input shaft and Ø40 mm hollow output shaft, compatible with 80B14 motor interfaces. This unit offers an efficiency of 94% and supports a BCD input of 100 mm and BCD output of 130 mm for mounting flexibility. The gear size is X73N.
Specifications
Product description
Downloads
€4,276.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
Supplier product ID
PX73NI01-FFBN-RV5-D
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
7,94:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X73N
Output speed at 1400 RPM
176
Max output torque (Nm)
380
Max kW input at 1400 rpm
7.5
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech stands as a trusted manufacturer of advanced drive solutions engineered specifically for critical industrial sectors. Renowned for their durable designs, Clean-Geartech combines corrosion-resistant materials with application-specific high-performance mechanics—making them the preferred choice for hygienic environments, aggressive chemical applications, and demanding mechanical processes.
Made entirely of AISI 316L stainless steel, the gearbox housing and hollow output shaft offer excellent corrosion resistance, ideal for food & beverage, pharmaceutical, and offshore installations where hygiene and resistance to harsh environments are critical.
The gear ratio of 7.94:1 enables controlled speed reduction and optimized torque output—suited for conveyors, mixers, and process automation in sectors requiring high-load continuous operation.
Three-stage gearing enhances torque handling capacity while maintaining compact dimensions and high mechanical efficiency, making this unit applicable in space-restricted installations without compromising performance.
The Ø40H7 hollow output shaft in stainless steel (SS hollow shaft) allows direct shaft installation with minimal need for couplings—ideal for system integration in machinery with frequent washdowns or exposed to corrosive atmospheres.
The gear motor interface 80B14 enables easy integration with standardized IEC flange motors, facilitating modular system design and easy retrofit or component interchangeability.
High-precision helical-bevel gear architecture ensures smooth, low-vibration operation and 94% transmission efficiency, translating to reduced energy consumption in electrically driven applications.
19 mm input shaft in rust-free construction supports robust power transmission and is suitable for coupling with compact motor systems, improving compatibility with various drive configurations.
Designed with BCD input of 100 mm and BCD output of 130 mm, the X73N allows easy mounting on standardized equipment frames and process modules across automation lines and heavy-duty mechanical structures.
With its X73N size classification, this gearbox is configured for medium-duty applications balancing compact form factor with strong torque delivery—ideal for OEM machinery and modular plant designs.
Made entirely of AISI 316L stainless steel, the gearbox housing and hollow output shaft offer excellent corrosion resistance, ideal for food & beverage, pharmaceutical, and offshore installations where hygiene and resistance to harsh environments are critical.
The gear ratio of 7.94:1 enables controlled speed reduction and optimized torque output—suited for conveyors, mixers, and process automation in sectors requiring high-load continuous operation.
Three-stage gearing enhances torque handling capacity while maintaining compact dimensions and high mechanical efficiency, making this unit applicable in space-restricted installations without compromising performance.
The Ø40H7 hollow output shaft in stainless steel (SS hollow shaft) allows direct shaft installation with minimal need for couplings—ideal for system integration in machinery with frequent washdowns or exposed to corrosive atmospheres.
The gear motor interface 80B14 enables easy integration with standardized IEC flange motors, facilitating modular system design and easy retrofit or component interchangeability.
High-precision helical-bevel gear architecture ensures smooth, low-vibration operation and 94% transmission efficiency, translating to reduced energy consumption in electrically driven applications.
19 mm input shaft in rust-free construction supports robust power transmission and is suitable for coupling with compact motor systems, improving compatibility with various drive configurations.
Designed with BCD input of 100 mm and BCD output of 130 mm, the X73N allows easy mounting on standardized equipment frames and process modules across automation lines and heavy-duty mechanical structures.
With its X73N size classification, this gearbox is configured for medium-duty applications balancing compact form factor with strong torque delivery—ideal for OEM machinery and modular plant designs.
