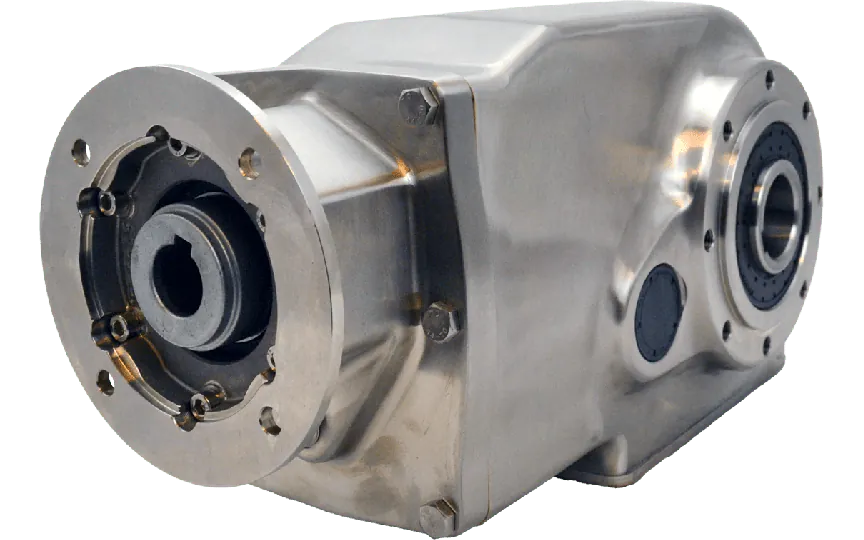

Clean-Geartech X73N, helical bevel gear Ø40H7 hollow shaft, 62,52:1, input 80B14, stainless steel
HV82PX73NI15-FFBN-RB3-D-OFKey specifications include a gear ratio of 62.52:1 and 3 gear stages, enabling effective torque conversion. The unit delivers a mechanical efficiency of 94%. It features an input shaft diameter of 19 mm and a Ø40 H7 hollow output shaft. The gearbox size is X73N and has a gear motor interface of 80B14. Constructed from AISI 316L stainless steel gears, it ensures corrosion resistance and is suitable for demanding washdown environments. Additionally, BCD dimensions are BCD input: 100 mm and BCD output: 130 mm.
Specifications
Product description
Downloads
€4,092.00
In stock
Expected shipment:
Loading...
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
62,52:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X73N
Output speed at 1400 RPM
22.4
Max output torque (Nm)
675
Max kW input at 1400 rpm
1.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned European manufacturer of high-performance hygienic gearboxes specifically built for demanding industrial applications where cleanliness, reliability, and corrosion resistance are critical. With a strong emphasis on precision engineering and durable materials, Clean-Geartech products are developed for industries such as food processing, pharmaceuticals, biotechnology, and marine engineering. All products are designed for easy cleaning and long service life in aggressive environments.Below are the key features and application benefits of the Clean-Geartech X73N bevel gear unit:
Manufactured entirely in high-grade stainless steel AISI 316L, ensuring maximum corrosion resistance and optimal hygiene—especially suitable for washdown environments in the food, pharmaceutical, and chemical industries.
The Ø40 mm H7 hollow output shaft, made of stainless steel (SS), enables easy integration with drive shafts, reducing the need for additional couplings and supports compact system design.
Three-stage gear design with a 62.52:1 reduction ratio allows high torque transmission at low output speeds—ideal for conveying systems, mixers, and dosing equipment requiring precise speed control.
High mechanical efficiency of 94% reduces energy losses during power transmission, making it perfect for energy-efficient automation systems in continuous operation.
Input flange designed according to B14 size 80 specification ensures compatibility with standard IEC electric motors, facilitating rapid and flexible motor integration across various installations.
Compact housing size (X73N) minimizes the unit footprint, enabling installation in tight spaces and modular machine layouts without compromising on performance.
Conical-bevel gear geometry provides smooth and quiet torque transfer between input and output shafts, ensuring stable motion control in environments sensitive to vibration and noise.
Designed for a 19 mm input shaft, making it compatible with a wide range of motors and coupling systems for versatile application across industries.
Perfectly suited for applications in hygienic production lines, marine drives, chemical mixing systems, beverage bottling plants, and other critical operation environments requiring durable, cleanable drive systems.
Manufactured entirely in high-grade stainless steel AISI 316L, ensuring maximum corrosion resistance and optimal hygiene—especially suitable for washdown environments in the food, pharmaceutical, and chemical industries.
The Ø40 mm H7 hollow output shaft, made of stainless steel (SS), enables easy integration with drive shafts, reducing the need for additional couplings and supports compact system design.
Three-stage gear design with a 62.52:1 reduction ratio allows high torque transmission at low output speeds—ideal for conveying systems, mixers, and dosing equipment requiring precise speed control.
High mechanical efficiency of 94% reduces energy losses during power transmission, making it perfect for energy-efficient automation systems in continuous operation.
Input flange designed according to B14 size 80 specification ensures compatibility with standard IEC electric motors, facilitating rapid and flexible motor integration across various installations.
Compact housing size (X73N) minimizes the unit footprint, enabling installation in tight spaces and modular machine layouts without compromising on performance.
Conical-bevel gear geometry provides smooth and quiet torque transfer between input and output shafts, ensuring stable motion control in environments sensitive to vibration and noise.
Designed for a 19 mm input shaft, making it compatible with a wide range of motors and coupling systems for versatile application across industries.
Perfectly suited for applications in hygienic production lines, marine drives, chemical mixing systems, beverage bottling plants, and other critical operation environments requiring durable, cleanable drive systems.
