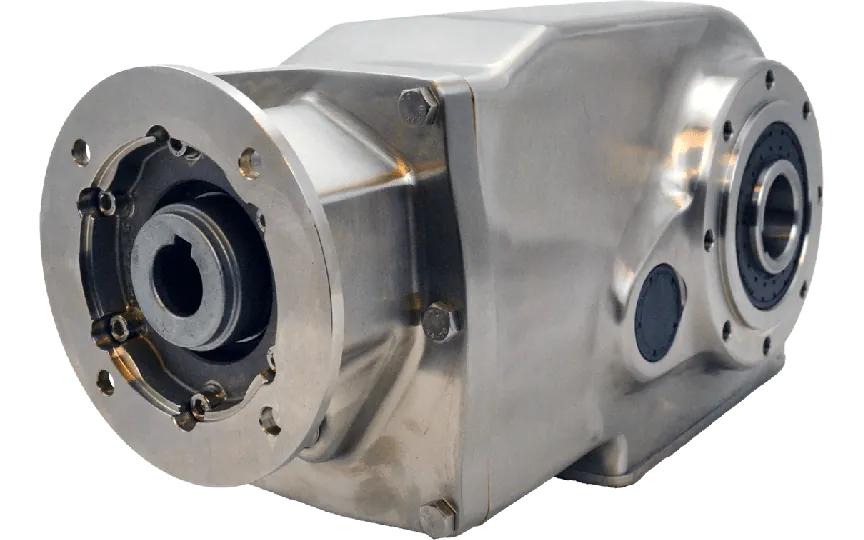

Clean-Geartech X73N, helical bevel gear Ø40H7 hollow shaft, 46,58:1, input 100/112B14, stainless steel
HV82PX73NI13-FFBN-UB3-F-OFIt features a gear ratio of 46.58:1 and efficiency of 94%, supporting energy-effective mechanical transmission. The gear size is X73N, with three gear stages for optimized torque conversion. The input shaft diameter is 28 mm and the output is a Ø40H7 hollow shaft.The gearing is made of stainless steel AISI 316L, making it suitable for hygienic and corrosive environments. The input/output interface is B14 (100/112). The unit has BCD input and output of 130 mm.
Specifications
Product description
Downloads
€4,120.00
In stock
Expected shipment:
Loading...
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
46,58:1
BCD input
130
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
40
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
X73N
Output speed at 1400 RPM
30.1
Max output torque (Nm)
675
Max kW input at 1400 rpm
2.3
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description:Clean-Geartech is a leading European manufacturer of hygienic and corrosion-resistant gear solutions designed specifically for demanding environments in food processing, pharmaceutical, chemical, and marine industries. Their products are known for reliability, superior build quality, and compliance with strict hygiene standards. Every Clean-Geartech gearbox is engineered with precision to ensure maximum operational lifespan and performance under challenging industrial conditions.Key Features, Advantages, and Applications:
• Housing, shaft, and gear components made from AISI 316L stainless steel ensure high corrosion resistance — ideal for hygienic and aggressive environments like food processing, pharmaceutical production, and offshore installations.
• High output torque through compact 3-stage design supports applications requiring slow-speed drive with high torque, such as mixers, conveyors, and agitators in industrial processing lines.
• Hollow output shaft Ø40H7 in stainless steel offers flexible and space-saving mounting directly onto driven shafts – reducing the need for couplings and minimizing installation space.
• High gear efficiency of 94% results in reduced energy consumption and lower operational costs, making it suitable for continuous-duty applications.
• Input shaft Ø28 mm with 100/112B14 motor interface allows easy integration with IEC-standard motors, enabling standardized automation setups across industries.
• Precision-machined spiral bevel gears provide quiet, reliable transmission with minimal backlash, essential in pharmaceutical and robotic systems requiring accuracy and repeatability.
• The 46.58:1 gear ratio effectively translates high-speed motor input into the required low-speed, high-torque output suitable for dosing pumps, lifting mechanisms, and slow-rotation mixers.
• Gear size X73N offers a compact footprint for installations where space is limited but performance cannot be compromised.
• Suitable for CIP (Clean-In-Place) environments due to full stainless steel construction with smooth surfaces that prevent accumulation of particles and bacteria.
• Designed for demanding technical specialists who require robust, maintenance-reducing, and hygienic gear solutions in critical industrial applications.
• Housing, shaft, and gear components made from AISI 316L stainless steel ensure high corrosion resistance — ideal for hygienic and aggressive environments like food processing, pharmaceutical production, and offshore installations.
• High output torque through compact 3-stage design supports applications requiring slow-speed drive with high torque, such as mixers, conveyors, and agitators in industrial processing lines.
• Hollow output shaft Ø40H7 in stainless steel offers flexible and space-saving mounting directly onto driven shafts – reducing the need for couplings and minimizing installation space.
• High gear efficiency of 94% results in reduced energy consumption and lower operational costs, making it suitable for continuous-duty applications.
• Input shaft Ø28 mm with 100/112B14 motor interface allows easy integration with IEC-standard motors, enabling standardized automation setups across industries.
• Precision-machined spiral bevel gears provide quiet, reliable transmission with minimal backlash, essential in pharmaceutical and robotic systems requiring accuracy and repeatability.
• The 46.58:1 gear ratio effectively translates high-speed motor input into the required low-speed, high-torque output suitable for dosing pumps, lifting mechanisms, and slow-rotation mixers.
• Gear size X73N offers a compact footprint for installations where space is limited but performance cannot be compromised.
• Suitable for CIP (Clean-In-Place) environments due to full stainless steel construction with smooth surfaces that prevent accumulation of particles and bacteria.
• Designed for demanding technical specialists who require robust, maintenance-reducing, and hygienic gear solutions in critical industrial applications.
