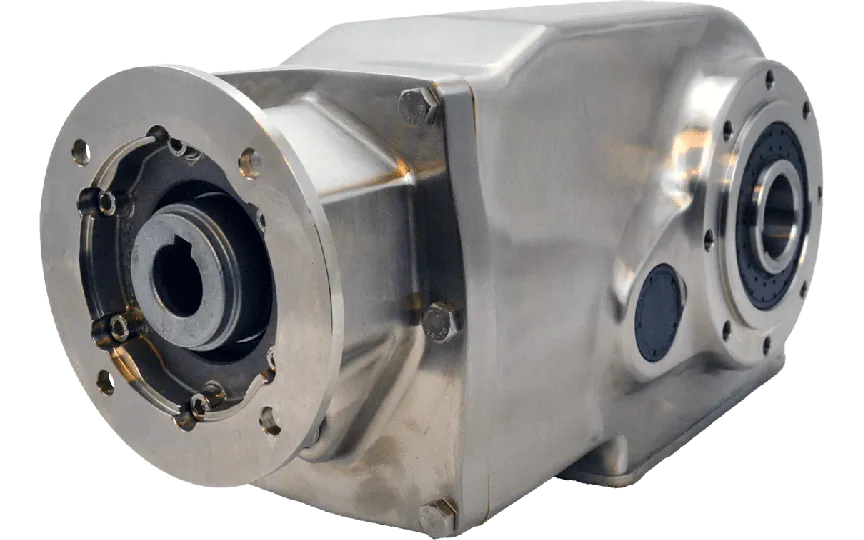

Clean-Geartech X73N, helical bevel gear Ø40H7 hollow shaft, 37,03:1, input 80B14, B3, stainless steel
HV82PX73NI11-FFBN-RB3-D-OFFeaturing a gear ratio of 37.03:1, the unit transmits power efficiently with a 94% efficiency rating. It includes a Ø19 mm input shaft and a Ø40 mm output hollow shaft. The gear motor interface is 80B14, compatible with standard motors. The housing and internal components are made from stainless steel AISI 316L, ensuring durability in harsh or washdown environments. Built in a 3-stage configuration, the gear unit supports torque transmission through a compact X73N size gear housing. Input and output BCDs are 100 mm and 130 mm, respectively.
Specifications
Product description
Downloads
€4,092.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
Supplier product ID
PX73NI11-FFBN-RB3-D
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
37,03:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X73N
Output speed at 1400 RPM
37.8
Max output torque (Nm)
675
Max kW input at 1400 rpm
2.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Overview Clean-Geartech is a premium manufacturer of hygienic gear solutions tailored to demanding environments such as the food, pharmaceutical, and chemical processing industries. Renowned for its use of high-grade materials and precision engineering, Clean-Geartech delivers products that prioritize reliability, cleanability, and industrial robustness. Main Product Features and Application Benefits:
Constructed entirely of stainless steel AISI 316L – ensuring excellent resistance to corrosion, ideal for CIP/SIP processes in food and pharmaceutical industries.
Features a precision-machined Ø40H7 stainless steel hollow output shaft – perfect for torque transmission in compact format and for applications requiring direct shaft mounting.
Three-stage, right-angle bevel gearbox design – allows for significant gear reduction (ratio: 37.03:1) within minimal footprint, making it suitable for automated conveyor systems and robotic axes.
High mechanical efficiency of 94% – contributes to optimal energy usage, reduced heat generation, and extended service life in continuous operation environments.
Equipped with a standardized 80B14 gear motor interface – ensures easy and seamless integration with IEC motors, reducing installation time and increasing interchangeability.
Robust 19 mm input shaft – suitable for handling high input speeds while maintaining torque stability, supporting applications with variable load demands.
Compact housing size X73N – supports installation in restricted plant spaces, enabling flexible machine designs in hygiene-critical production areas.
Designed for high-load, washdown, and hygienic environments – ideal for use in food packaging, dairy processing, meat handling, and pharmaceutical belt systems.
Highest grade surface finish and no paint construction – minimizes bacterial accumulation and supports compliance with FDA and EHEDG standards. Overall, the Clean-Geartech X73N bevel gearbox is engineered to deliver performance, hygiene, and reliability where standard gearboxes simply aren’t sufficient. Its design focuses on integration versatility, hygienic capability, and long service life in demanding process environments.
Constructed entirely of stainless steel AISI 316L – ensuring excellent resistance to corrosion, ideal for CIP/SIP processes in food and pharmaceutical industries.
Features a precision-machined Ø40H7 stainless steel hollow output shaft – perfect for torque transmission in compact format and for applications requiring direct shaft mounting.
Three-stage, right-angle bevel gearbox design – allows for significant gear reduction (ratio: 37.03:1) within minimal footprint, making it suitable for automated conveyor systems and robotic axes.
High mechanical efficiency of 94% – contributes to optimal energy usage, reduced heat generation, and extended service life in continuous operation environments.
Equipped with a standardized 80B14 gear motor interface – ensures easy and seamless integration with IEC motors, reducing installation time and increasing interchangeability.
Robust 19 mm input shaft – suitable for handling high input speeds while maintaining torque stability, supporting applications with variable load demands.
Compact housing size X73N – supports installation in restricted plant spaces, enabling flexible machine designs in hygiene-critical production areas.
Designed for high-load, washdown, and hygienic environments – ideal for use in food packaging, dairy processing, meat handling, and pharmaceutical belt systems.
Highest grade surface finish and no paint construction – minimizes bacterial accumulation and supports compliance with FDA and EHEDG standards. Overall, the Clean-Geartech X73N bevel gearbox is engineered to deliver performance, hygiene, and reliability where standard gearboxes simply aren’t sufficient. Its design focuses on integration versatility, hygienic capability, and long service life in demanding process environments.
