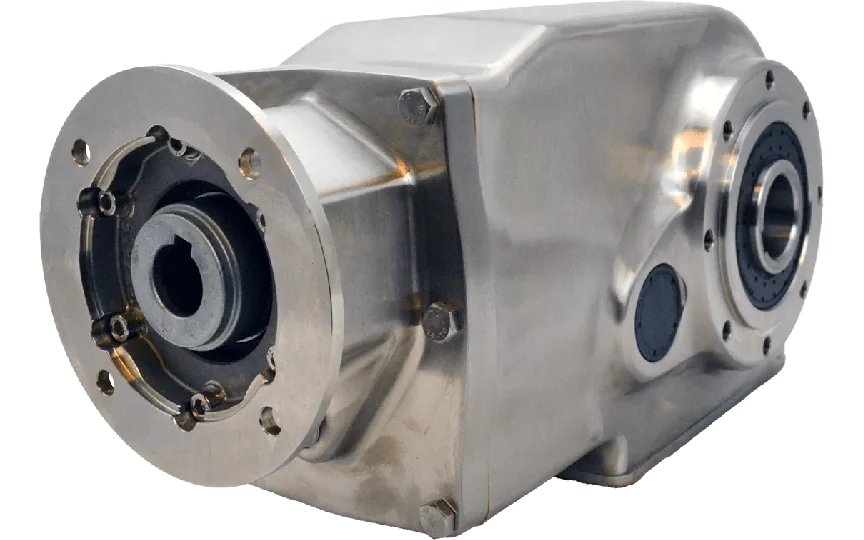

Clean-Geartech X73N, helical bevel gear Ø40H7 hollow shaft, 26,31:1, input 80B14, V5, stainless steel
HV82PX73NI08-FFBN-RV5-D-OFThis model features a gear ratio of 26.31:1 and delivers 94% efficiency through its three-stage transmission. The input shaft diameter is 19 mm, while the output shaft is a Ø40H7 hollow shaft, enabling flexible integration in various setups.The gear housing and internal gears are made from stainless steel AISI 316L, ensuring corrosion resistance for hygienic or harsh environments. It is compatible with a motor interface of 80B14 and sized as X73N, with BCD input 100 mm and BCD output 130 mm. Suitable for applications requiring durability and cleanability.
Specifications
Product description
Downloads
€4,276.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
Supplier product ID
PX73NI08-FFBN-RV5-D
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
26,31:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
40
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X73N
Output speed at 1400 RPM
53
Max output torque (Nm)
675
Max kW input at 1400 rpm
4
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted manufacturer of high-performance gearboxes made specifically for demanding industrial applications. Known for its premium use of materials and hygienic design, Clean-Geartech delivers robust and easy-to-clean drive solutions ideal for harsh environments, including food & beverage, pharmaceutical, and chemical processing industries. Their gear units are engineered for reliability, corrosion resistance, and long service life to support continuous process stability.Key Features and Applications of the Clean-Geartech X73N:
Hygienic design in AISI 316L stainless steel ensures excellent corrosion resistance and easy cleaning, making the gearbox ideal for environments requiring strict hygiene such as food production, dairy processing, and pharmaceutical manufacturing.
High efficiency of 94% increases operational performance while reducing energy consumption, beneficial for continuous operations in automated production lines and conveying systems.
26.31:1 gear ratio with three-stage bevel gearing provides precise speed reduction and high torque transmission, supporting applications like mixers, filling machines, screw conveyors, and rotary packaging systems.
Equipped with Ø40H7 hollow output shaft in stainless steel, allowing secure, backlash-free mechanical integration with driven components such as drums, shafts, and rollers in transport and processing equipment.
Input via standardized 80B14 flange makes the gear unit highly compatible with IEC electric motors, simplifying motor selection and mounting for engineers across industries.
19 mm input shaft enables straightforward coupling with a wide range of drive systems, making it a flexible choice for custom machinery builders and automation integrators.
Gear size X73N offers a compact footprint yet supports high load capacity, ideal for machines where space efficiency and mechanical robustness are both critical.
Durable three-stage gearing ensures consistent torque output and long-term reliability under variable loads, especially in batch-intensive or washdown-prone production environments.Choose the Clean-Geartech X73N gearbox when you need a compact, stainless steel gear solution that meets hygiene demands without compromising mechanical performance.
Hygienic design in AISI 316L stainless steel ensures excellent corrosion resistance and easy cleaning, making the gearbox ideal for environments requiring strict hygiene such as food production, dairy processing, and pharmaceutical manufacturing.
High efficiency of 94% increases operational performance while reducing energy consumption, beneficial for continuous operations in automated production lines and conveying systems.
26.31:1 gear ratio with three-stage bevel gearing provides precise speed reduction and high torque transmission, supporting applications like mixers, filling machines, screw conveyors, and rotary packaging systems.
Equipped with Ø40H7 hollow output shaft in stainless steel, allowing secure, backlash-free mechanical integration with driven components such as drums, shafts, and rollers in transport and processing equipment.
Input via standardized 80B14 flange makes the gear unit highly compatible with IEC electric motors, simplifying motor selection and mounting for engineers across industries.
19 mm input shaft enables straightforward coupling with a wide range of drive systems, making it a flexible choice for custom machinery builders and automation integrators.
Gear size X73N offers a compact footprint yet supports high load capacity, ideal for machines where space efficiency and mechanical robustness are both critical.
Durable three-stage gearing ensures consistent torque output and long-term reliability under variable loads, especially in batch-intensive or washdown-prone production environments.Choose the Clean-Geartech X73N gearbox when you need a compact, stainless steel gear solution that meets hygiene demands without compromising mechanical performance.
