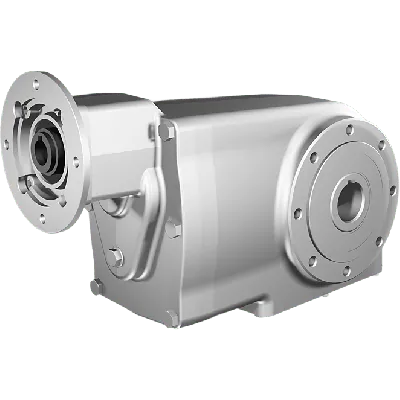

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 92,18:1, input 80B14, B3, stainless steel
HV82PX63NI05-EFBN-RB3-D-OFThis model features a gear ratio of 92.18:1 and three gear stages, optimizing torque transmission and speed reduction. It includes a Ø35 mm H7 hollow output shaft and a Ø19 mm input shaft, compatible with a IEC 80B14 motor interface. The housing and gears are made of stainless steel AISI 316L, ensuring corrosion resistance and suitability for aggressive environments. With a gear size of X63N and a mechanical efficiency of 94%, this unit is designed for reliability and minimal energy loss. Input/output bore codes are BCD 100 input and BCD 130 output.
Specifications
Product description
Downloads
€3,255.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
92,18:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
15.2
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.69
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is renowned for manufacturing premium-grade gear solutions designed exclusively for advanced industrial applications, especially in demanding environments where hygiene, corrosion resistance, and reliability are critical. Their gearboxes are engineered with precision and built using high-grade materials like AISI 316L stainless steel, making them ideal for deployment in sectors such as food processing, pharma, marine, and chemical industries.Key Features, Benefits & Applications:
Precision-engineered with a 92.18:1 gear ratio, making it highly suitable for torque-intensive low-speed applications such as conveyors, mixers, and lifting systems in automated processes.
Constructed fully in AISI 316L stainless steel, including the housing and hollow shaft, granting exceptional corrosion resistance and hygiene compliance—perfect for aggressive wash-down environments in the food & beverage or pharmaceutical sectors.
Equipped with a Ø35 mm H7 hollow output shaft (SS Hollow Shaft), ensuring easy integration with shafts and reducing maintenance needs thanks to stainless steel durability in harsh environments.
Designed with a 3-stage bevel gear system, ensuring compact design with high torque output and smooth, reliable transmission ideal for packaging, bottling, or marine deck applications.
High efficiency of up to 94%, lowering energy consumption while maintaining consistent performance across a wide range of industrial automation equipment.
Input shaft diameter of Ø19 mm and motor interface B14 (IEC 80), simplifying motor compatibility and speeding up setup with standardized connection—the ideal match for small to mid-sized electric motors in integrated systems.
Compact gear size (X63N) makes it an optimal choice for installations with limited space without compromising on power density and operational endurance.
BCD input/output dimensions (100/130 mm) align with standard mechanical interfaces, enabling quick integration in existing assemblies or machinery upgrades.The Clean-Geartech X63N is a robust, low-maintenance solution tailored for technical specialists and engineers who demand performance, hygiene, and longevity in one compact gearbox. Designed to meet stringent industrial standards, it provides true value in mission-critical roles across various sectors.
Precision-engineered with a 92.18:1 gear ratio, making it highly suitable for torque-intensive low-speed applications such as conveyors, mixers, and lifting systems in automated processes.
Constructed fully in AISI 316L stainless steel, including the housing and hollow shaft, granting exceptional corrosion resistance and hygiene compliance—perfect for aggressive wash-down environments in the food & beverage or pharmaceutical sectors.
Equipped with a Ø35 mm H7 hollow output shaft (SS Hollow Shaft), ensuring easy integration with shafts and reducing maintenance needs thanks to stainless steel durability in harsh environments.
Designed with a 3-stage bevel gear system, ensuring compact design with high torque output and smooth, reliable transmission ideal for packaging, bottling, or marine deck applications.
High efficiency of up to 94%, lowering energy consumption while maintaining consistent performance across a wide range of industrial automation equipment.
Input shaft diameter of Ø19 mm and motor interface B14 (IEC 80), simplifying motor compatibility and speeding up setup with standardized connection—the ideal match for small to mid-sized electric motors in integrated systems.
Compact gear size (X63N) makes it an optimal choice for installations with limited space without compromising on power density and operational endurance.
BCD input/output dimensions (100/130 mm) align with standard mechanical interfaces, enabling quick integration in existing assemblies or machinery upgrades.The Clean-Geartech X63N is a robust, low-maintenance solution tailored for technical specialists and engineers who demand performance, hygiene, and longevity in one compact gearbox. Designed to meet stringent industrial standards, it provides true value in mission-critical roles across various sectors.
