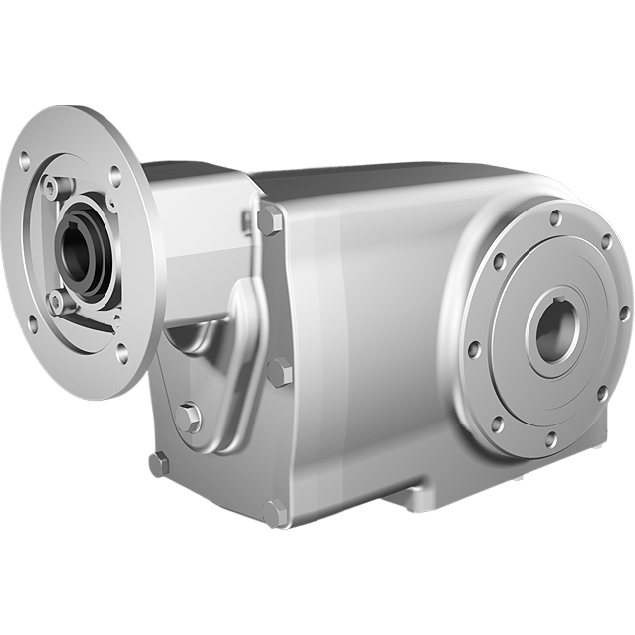

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 87,23:1, input 90B14, V5, stainless steel
HV82PX63NI04-EFBN-TV5-E-OFThis unit features a gear ratio of 87.23:1 with three gear stages, delivering efficient torque transmission. The gear input shaft is Ø24 mm, and the output shaft is Ø35H7 mm. Designed for compatibility, it includes a 90B14 gear motor interface.The housing is built in stainless steel AISI 316L for durability in harsh or hygienic conditions. The unit demonstrates a high efficiency of 94%, with a configuration of BCD input: 115 and BCD output: 130. Gear size: X63N.
Specifications
Product description
Downloads
€3,357.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
87,23:1
BCD input
115
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X63N
Output speed at 1400 RPM
16
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.73
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Produced by Clean-Geartech, a leading manufacturer specializing in hygienic stainless steel gear solutions for demanding industrial environments. Their gearboxes are widely respected for their corrosion resistance, durability, and compatibility with sanitary applications in sectors such as food processing, pharmaceutical production, and marine engineering.Highlights of the Clean-Geartech X63N Bevel Gearbox:
• Manufactured from corrosion-resistant AISI 316L stainless steel, making it ideal for aggressive and hygienic environments like food, pharmaceutical, and chemical processing industries
• Bevel gear design ensures smooth and efficient power transmission with compact construction – suitable for constrained installation spaces
• High gear ratio of 87.23:1 provides precise speed reduction for low-speed, high-torque applications requiring controlled movement
• Equipped with a Ø35H7 hollow output shaft made of stainless steel – supports direct shaft mounting, simplifies mechanical design and reduces component count
• Input interface is designed for IEC 90B14 motors, ensuring easy integration with standard electric motor drives used in industrial settings
• Features a robust Ø24 mm input shaft, supporting reliable power input under heavy-duty operating conditions
• 3-stage gear configuration allows for efficient torque multiplication while maintaining compact housing size (Gear size: X63N)
• Exceptional efficiency rating of 94% – minimizes energy losses and heat generation, optimizing overall system performance
• Ideal for uses in washdown areas due to the fully enclosed stainless steel housing with smooth surfaces that prevent bacterial growth and are easy to clean
• Well-suited for precision machinery, conveyors, automated material handling systems, and any strategic application where durability, hygiene, and corrosion resistance are crucial The Clean-Geartech X63N represents the optimal balance between high mechanical performance and resistance to harsh operating environments, meeting stringent standards for industrial and hygienic equipment.
• Manufactured from corrosion-resistant AISI 316L stainless steel, making it ideal for aggressive and hygienic environments like food, pharmaceutical, and chemical processing industries
• Bevel gear design ensures smooth and efficient power transmission with compact construction – suitable for constrained installation spaces
• High gear ratio of 87.23:1 provides precise speed reduction for low-speed, high-torque applications requiring controlled movement
• Equipped with a Ø35H7 hollow output shaft made of stainless steel – supports direct shaft mounting, simplifies mechanical design and reduces component count
• Input interface is designed for IEC 90B14 motors, ensuring easy integration with standard electric motor drives used in industrial settings
• Features a robust Ø24 mm input shaft, supporting reliable power input under heavy-duty operating conditions
• 3-stage gear configuration allows for efficient torque multiplication while maintaining compact housing size (Gear size: X63N)
• Exceptional efficiency rating of 94% – minimizes energy losses and heat generation, optimizing overall system performance
• Ideal for uses in washdown areas due to the fully enclosed stainless steel housing with smooth surfaces that prevent bacterial growth and are easy to clean
• Well-suited for precision machinery, conveyors, automated material handling systems, and any strategic application where durability, hygiene, and corrosion resistance are crucial The Clean-Geartech X63N represents the optimal balance between high mechanical performance and resistance to harsh operating environments, meeting stringent standards for industrial and hygienic equipment.
