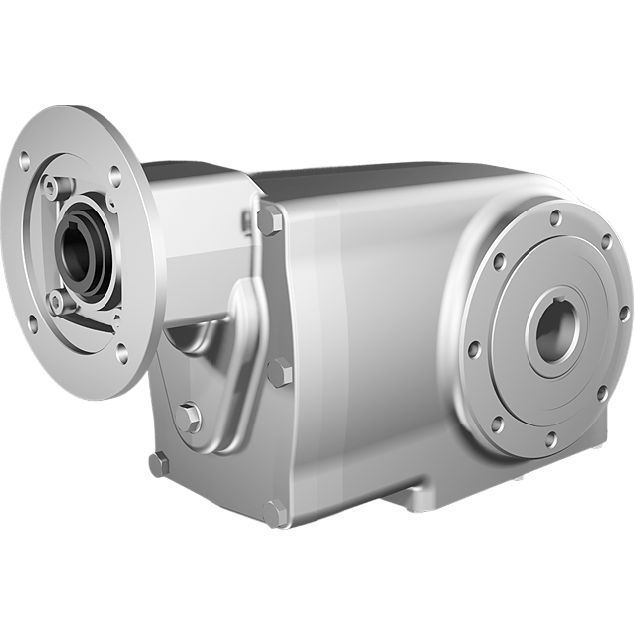

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 87,23:1, input 90B14, B3, stainless steel
HV82PX63NI04-EFBN-TB3-E-OFThis unit features a gear ratio of 87.23:1 and an efficiency of 94%. It includes a gear input shaft diameter of 24 mm and a gear output shaft diameter of 35 mm, with a Ø35H7 hollow shaft for precise mechanical fitment. The gear size is X63N and it has 3 gear stages, ensuring reliable torque transmission.Built for harsh conditions, the gear material is stainless steel AISI 316L, offering high corrosion resistance. The unit supports a gear motor interface of 90B14 for streamlined integration.Input and output BCDs are 115 mm (input) and 130 mm (output).
Specifications
Product description
Downloads
€3,274.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
87,23:1
BCD input
115
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X63N
Output speed at 1400 RPM
16
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.73
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X63N is a high-performance bevel gearbox engineered for reliable operation in hygienic and corrosive environments. Manufactured by Clean-Geartech, a leading producer of stainless steel gear technology, the X63N gearbox is designed for demanding industrial applications, ensuring maximum efficiency, durability, and ease of integration with other components.
Designed with a high-performance gear ratio of 87.23:1, enabling efficient torque conversion for applications requiring low output speed and high torque. Ideal for conveyors, agitators, and lifting systems.
Exceptional efficiency of 94% reduces energy consumption while maintaining consistent performance under load. Supports sustainability initiatives while lowering operational costs in continuous processes.
Constructed entirely from AISI 316L stainless steel, including housing and gear components. Perfect for food, pharmaceutical, and chemical industries where resistance to corrosion, sanitization, and aggressive cleaning agents is critical.
Equipped with a Ø35H7 hollow output shaft in stainless steel, ensuring precise alignment and strong torque transfer in modular systems. Simplifies integration with drive shafts, sprockets, or pulleys.
Features a 24 mm input shaft and B14 flange interface (size 90), enabling easy motor mounting and compatibility with various IEC-standard electric motors.
Three-stage gear configuration supports excellent torque amplification with smooth and quiet operation. Well-suited for mission-critical applications where uptime and reliability are paramount.
Gear size X63N provides a compact design that balances footprint and power, ideal for constrained installations or mobile processing units.
Clean, crevice-free design minimizes contamination risk and facilitates thorough washdown. Developed specifically for hygienic zones within food processing, cleanroom, and biotech facilities.
Backed by Clean-Geartech’s reputation for precision engineering and long-lasting stainless steel gear solutions, trusted by engineers across sectors for quality and performance.
Designed with a high-performance gear ratio of 87.23:1, enabling efficient torque conversion for applications requiring low output speed and high torque. Ideal for conveyors, agitators, and lifting systems.
Exceptional efficiency of 94% reduces energy consumption while maintaining consistent performance under load. Supports sustainability initiatives while lowering operational costs in continuous processes.
Constructed entirely from AISI 316L stainless steel, including housing and gear components. Perfect for food, pharmaceutical, and chemical industries where resistance to corrosion, sanitization, and aggressive cleaning agents is critical.
Equipped with a Ø35H7 hollow output shaft in stainless steel, ensuring precise alignment and strong torque transfer in modular systems. Simplifies integration with drive shafts, sprockets, or pulleys.
Features a 24 mm input shaft and B14 flange interface (size 90), enabling easy motor mounting and compatibility with various IEC-standard electric motors.
Three-stage gear configuration supports excellent torque amplification with smooth and quiet operation. Well-suited for mission-critical applications where uptime and reliability are paramount.
Gear size X63N provides a compact design that balances footprint and power, ideal for constrained installations or mobile processing units.
Clean, crevice-free design minimizes contamination risk and facilitates thorough washdown. Developed specifically for hygienic zones within food processing, cleanroom, and biotech facilities.
Backed by Clean-Geartech’s reputation for precision engineering and long-lasting stainless steel gear solutions, trusted by engineers across sectors for quality and performance.
