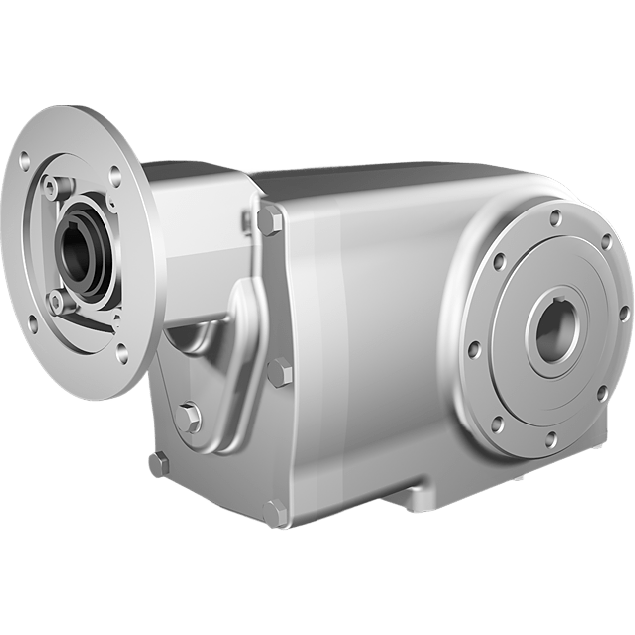

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 77,23:1, input 90B14, B3, stainless steel
HV82PX63NI03-EFBN-TB3-E-OFThis unit features a gear ratio of 77.23:1 and a gear size X63N with 3 gear stages, offering stable speed reduction in compact installations. It is equipped with a Ø24 mm input shaft and a Ø35H7 output hollow shaft, ensuring compatibility and high torque transfer. The 90B14 input flange provides a standardized motor interface. Constructed with stainless steel AISI 316L gears, it delivers high corrosion resistance. The unit achieves an efficiency of 94%, with BCD input 115 mm and BCD output 130 mm, making it suitable for hygienic and industrial environments.
Specifications
Product description
Downloads
€3,274.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
77,23:1
BCD input
115
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X63N
Output speed at 1400 RPM
18.1
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.83
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
**Brand Description:** Clean-Geartech is a premium manufacturer specializing in corrosion-resistant power transmission solutions. Designed specifically for demanding environments, Clean-Geartech gearboxes are known for their hygienic design, robust performance, and precision engineering. The gear units are ideal for industries with rigorous hygiene and durability requirements, such as food processing, pharmaceuticals, and chemical manufacturing.**Key Features, Benefits & Applications:**
• High resistance to corrosion due to full gearbox construction in AISI 316L stainless steel — ideal for hygienic environments such as cleanrooms, wet zones, and aggressive chemical processing areas.
• Gear ratio of 77.23:1 enables high torque output with low-speed motion — suited for applications requiring speed reduction and precision control, such as automated conveying, dosing, and packaging systems.
• Three-stage bevel gear transmission ensures smooth, reliable torque conversion — supports high performance in continuous and cyclic duty operations under varying load conditions.
• Hollow output shaft Ø35H7 in stainless steel (SS) allows for direct shaft-mount integration with driven systems — simplifies installation and minimizes radial play for precise torque delivery.
• Input shaft interface Ø24 mm with standard B14 flange (IEC 90B14) — offers seamless compatibility with IEC motors and facilitates quick exchange or upgrading of drive motors.
• High mechanical efficiency at 94% — reduces energy loss and heat generation, making it suitable for energy-conscious installations and temperature-sensitive environments.
• Compact gear size X63N enables integration into systems with limited installation space — excellent for modular machine designs and retrofit scenarios in industrial automation.
• Precisely machined stainless steel surfaces offer easy cleaning and low bacterial retention — ensures compliance with EHEDG and FDA hygiene standards in food and pharma operations.
• Robust construction and sealed design allow operation in high washdown zones — ensures long operational life in CIP (Clean-In-Place) and SIP (Steam-In-Place) systems. This unit is a top-tier choice for engineers seeking hygienic, energy-efficient, and maintenance-friendly gear solutions in demanding industrial applications.
• High resistance to corrosion due to full gearbox construction in AISI 316L stainless steel — ideal for hygienic environments such as cleanrooms, wet zones, and aggressive chemical processing areas.
• Gear ratio of 77.23:1 enables high torque output with low-speed motion — suited for applications requiring speed reduction and precision control, such as automated conveying, dosing, and packaging systems.
• Three-stage bevel gear transmission ensures smooth, reliable torque conversion — supports high performance in continuous and cyclic duty operations under varying load conditions.
• Hollow output shaft Ø35H7 in stainless steel (SS) allows for direct shaft-mount integration with driven systems — simplifies installation and minimizes radial play for precise torque delivery.
• Input shaft interface Ø24 mm with standard B14 flange (IEC 90B14) — offers seamless compatibility with IEC motors and facilitates quick exchange or upgrading of drive motors.
• High mechanical efficiency at 94% — reduces energy loss and heat generation, making it suitable for energy-conscious installations and temperature-sensitive environments.
• Compact gear size X63N enables integration into systems with limited installation space — excellent for modular machine designs and retrofit scenarios in industrial automation.
• Precisely machined stainless steel surfaces offer easy cleaning and low bacterial retention — ensures compliance with EHEDG and FDA hygiene standards in food and pharma operations.
• Robust construction and sealed design allow operation in high washdown zones — ensures long operational life in CIP (Clean-In-Place) and SIP (Steam-In-Place) systems. This unit is a top-tier choice for engineers seeking hygienic, energy-efficient, and maintenance-friendly gear solutions in demanding industrial applications.
