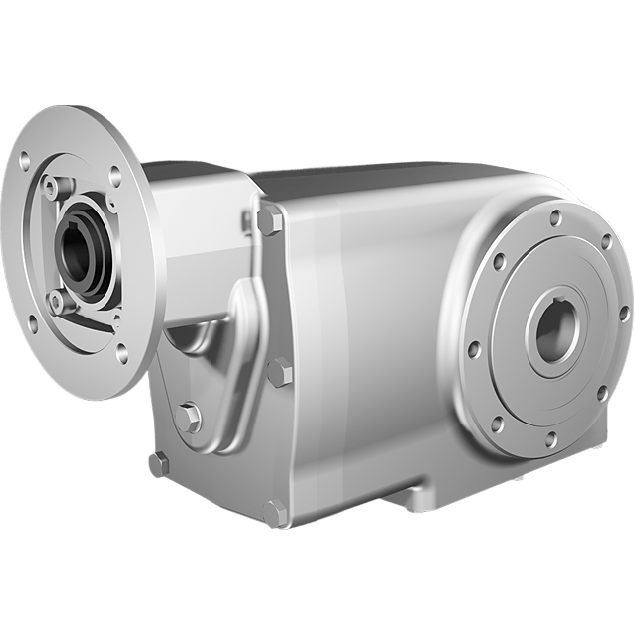

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 65,79:1, input 90B14, V5, stainless steel
HV82PX63NI02-EFBN-TV5-E-OFIt features a gear ratio of 65.79:1 and a compact gear size X63N with three gear stages. The unit includes a Ø24 mm gear input shaft and a Ø35H7 gear output shaft, supporting standard industrial coupling methods. The input interface is 90B14 for motor compatibility.Constructed with AISI 316L stainless steel gears and a stainless steel hollow output shaft, it meets demanding environmental requirements. With an efficiency of 94%, it ensures minimal energy loss. The output torque and input speed correspond to a BCD input of 115 and a BCD output of 130.
Specifications
Product description
Downloads
€3,357.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
65,79:1
BCD input
115
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X63N
Output speed at 1400 RPM
21.3
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.97
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Product Name: Clean-Geartech X63N, Bevel Gearbox Ø35H7 Hollow Shaft, 65.79:1 Ratio, Input 90B14, Stainless SteelKey Features & Application Benefits:
Constructed from AISI 316L stainless steel, the gearbox housing offers outstanding resistance to corrosion and aggressive cleaning agents, making it ideal for hygienic environments like food and beverage processing, pharmaceuticals, and marine applications.
Output shaft Ø35 mm H7 stainless steel (SS hollow shaft) ensures precise torque transmission and long service life even during frequent washdowns.
High-precision bevel gear configuration with a 3-stage reduction provides a compact 65.79:1 gear ratio, suitable for applications requiring low output speed and high torque in confined spaces such as conveyor systems, mixers, and packaging lines.
90B14 motor interface allows seamless integration with standard IEC motors, enhancing modularity and simplifying replacement or system upgrades in legacy industrial setups.
Input shaft Ø24 mm enables flexible coupling with various motor types, supporting custom drive setups for automation and mechanical handling systems.
Efficiency rating of 94% reduces energy consumption and supports sustainable industrial design, resulting in lower total cost of ownership for automated operations.
Gear size X63N and compact bevel design afford exceptional torque density while minimizing overall installation footprint, especially important in robotics, filling machinery, or cleanroom environments where space is limited.
BCD input 115 mm and BCD output 130 mm mounting compatibility simplifies integration into proprietary equipment or standardized frame mounts across industries.
Three-stage configuration ensures smooth transmission with minimal vibration, improving system accuracy and reducing component wear in precision-driven environments such as test rigs or batch processing systems.
Constructed from AISI 316L stainless steel, the gearbox housing offers outstanding resistance to corrosion and aggressive cleaning agents, making it ideal for hygienic environments like food and beverage processing, pharmaceuticals, and marine applications.
Output shaft Ø35 mm H7 stainless steel (SS hollow shaft) ensures precise torque transmission and long service life even during frequent washdowns.
High-precision bevel gear configuration with a 3-stage reduction provides a compact 65.79:1 gear ratio, suitable for applications requiring low output speed and high torque in confined spaces such as conveyor systems, mixers, and packaging lines.
90B14 motor interface allows seamless integration with standard IEC motors, enhancing modularity and simplifying replacement or system upgrades in legacy industrial setups.
Input shaft Ø24 mm enables flexible coupling with various motor types, supporting custom drive setups for automation and mechanical handling systems.
Efficiency rating of 94% reduces energy consumption and supports sustainable industrial design, resulting in lower total cost of ownership for automated operations.
Gear size X63N and compact bevel design afford exceptional torque density while minimizing overall installation footprint, especially important in robotics, filling machinery, or cleanroom environments where space is limited.
BCD input 115 mm and BCD output 130 mm mounting compatibility simplifies integration into proprietary equipment or standardized frame mounts across industries.
Three-stage configuration ensures smooth transmission with minimal vibration, improving system accuracy and reducing component wear in precision-driven environments such as test rigs or batch processing systems.
