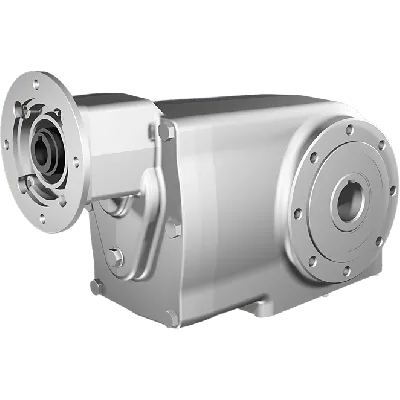

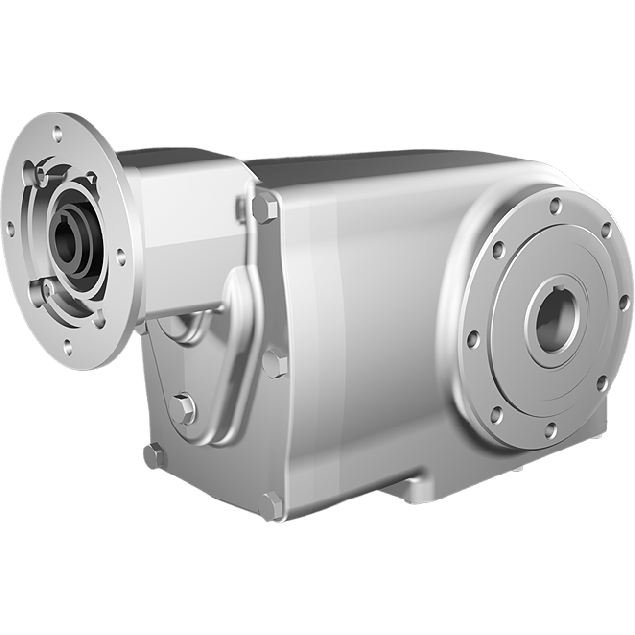

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 65,79:1, input 80B14, V5, stainless steel
HV82PX63NI02-EFBN-RV5-D-OFThis unit features a gear ratio of 65.79:1 across 3 gear stages, providing consistent torque transfer. The input shaft diameter is 19 mm, and the output shaft is a Ø35H7 hollow shaft, suitable for applications requiring through-shaft mounting.With its efficiency of 94%, the X63N supports energy-efficient operation. The GEAR material is AISI 316L stainless steel, ensuring durability in corrosive environments. Compatible with IEC motor interface 80B14 and built in gear size X63N, it offers reliable mechanical interfacing.Input/output torques: BCD input: 100, BCD output: 130.
Specifications
Product description
Downloads
€3,338.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
65,79:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
21.3
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.97
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of high-performance gearbox solutions specifically designed for demanding industrial environments. Known for their innovation in hygienic design and their use of high-grade stainless steel materials, Clean-Geartech products are ideal for food processing, chemical, pharmaceutical, and marine industries where corrosion resistance and cleanability are critical.Product: Clean-Geartech X63N Bevel Gearbox Gear Material: Stainless Steel AISI 316L Ratio: 65.79:1 Efficiency: 94% Input Shaft Diameter: 19 mm Output Shaft: Ø35H7 Hollow Shaft (Stainless Steel) Gear Motor Interface: 80B14 Gear Stages: 3 Gear Size: X63NMain Features and Advantages:
Robust housing made of Stainless Steel AISI 316L — ensures maximum corrosion resistance and hygienic operation in aggressive or washdown environments such as food, pharmaceutical, and marine sectors.
High transmission ratio of 65.79:1 in compact 3-stage gear system — ideal for applications requiring high torque output and low speed, such as conveyors, mixers, and lifting systems.
94% mechanical efficiency — delivers excellent power transmission with minimal energy loss, supporting sustainability and reduced operational costs.
Ø35H7 stainless steel hollow output shaft — enables direct coupling to driven shafts without the need for additional couplings; optimal for limited-space applications or hygienic zones.
Standardized 80B14 motor flange interface — allows quick and flexible integration with IEC motor types commonly used in industrial automation setups.
Input shaft Ø19 mm — provides compatibility with various coupling and drive configurations for diverse industrial implementations.
CleanGear design — smooth surface finish and crevice-free construction prevents bacterial accumulation; suitable for CIP/SIP cleaning protocols.
Designed and manufactured by Clean-Geartech — a trusted brand specializing in stainless gear solutions for industries that demand uncompromised hygiene, durability, and performance.This gearbox is optimized for engineering professionals who prioritize precision, cleanliness, and longevity in mission-critical installations. Ideal for use in hygienic conveyors, process equipment, and washdown environments.
Robust housing made of Stainless Steel AISI 316L — ensures maximum corrosion resistance and hygienic operation in aggressive or washdown environments such as food, pharmaceutical, and marine sectors.
High transmission ratio of 65.79:1 in compact 3-stage gear system — ideal for applications requiring high torque output and low speed, such as conveyors, mixers, and lifting systems.
94% mechanical efficiency — delivers excellent power transmission with minimal energy loss, supporting sustainability and reduced operational costs.
Ø35H7 stainless steel hollow output shaft — enables direct coupling to driven shafts without the need for additional couplings; optimal for limited-space applications or hygienic zones.
Standardized 80B14 motor flange interface — allows quick and flexible integration with IEC motor types commonly used in industrial automation setups.
Input shaft Ø19 mm — provides compatibility with various coupling and drive configurations for diverse industrial implementations.
CleanGear design — smooth surface finish and crevice-free construction prevents bacterial accumulation; suitable for CIP/SIP cleaning protocols.
Designed and manufactured by Clean-Geartech — a trusted brand specializing in stainless gear solutions for industries that demand uncompromised hygiene, durability, and performance.This gearbox is optimized for engineering professionals who prioritize precision, cleanliness, and longevity in mission-critical installations. Ideal for use in hygienic conveyors, process equipment, and washdown environments.
