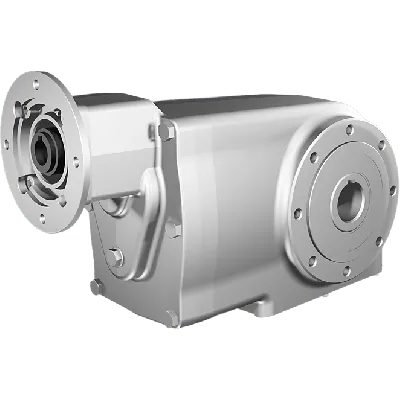

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 65,79:1, input 80B14, B3, stainless steel
HV82PX63NI02-EFBN-RB3-D-OFThis bevel gear unit features a gear size of X63N and a gear ratio of 65.79:1, provided through 3 gear stages. The input shaft diameter is 19 mm and the output shaft is a Ø35H7 hollow shaft. With a BCD input of 100 mm and BCD output of 130 mm, it integrates with standard motor interfaces via a 80B14 flange. Constructed with stainless steel AISI 316L gears, it offers excellent durability in hygienic or corrosive environments. The unit achieves an operational efficiency of 94%, supporting energy-effective transmission with robust, stainless steel components.
Specifications
Product description
Downloads
€3,255.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
65,79:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
21.3
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.97
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X63N bevel gear unit is a highly efficient, industrial-grade transmission solution engineered specifically for demanding technical environments where durability, hygiene, and performance are paramount. Manufactured by Clean-Geartech—a trusted provider of precision stainless steel gear systems—the X63N series exemplifies superior quality, corrosion resistance, and compact integration for sectors such as food processing, pharmaceuticals, chemical engineering, and marine applications.Clean-Geartech specializes in the design and production of advanced stainless steel gearboxes, offering innovative gearing solutions that meet the strictest industry standards for hygiene, mechanical robustness, and operational longevity. Their gear units are widely recognized among engineers for cleanability and resistance in corrosive or washdown-prone environments.Key Features, Functional Benefits & Applications:
⦁ Engineered with stainless steel AISI 316L, the housing and components offer extraordinary corrosion resistance — crucial for applications in aggressive environments like saltwater, disinfectant exposure, and cleanrooms.
⦁ High-efficiency output (94%) ensures minimal energy loss, making the unit ideal for continuous duty operations in process automation or conveyor systems.
⦁ 3-stage gear arrangement delivers a high torque output with a 65.79:1 gear ratio — perfectly suited for low-speed, high-load tasks such as mixers, agitators, or barrel turning systems.
⦁ Integrated Ø35 mm H7 hollow shaft in stainless steel (SS) allows direct mounting to driven shafts — reducing the need for couplings and enhancing system compactness.
⦁ Input shaft Ø19 mm standard and compatibility with 80B14 flange interface enables seamless integration with IEC motors or servo systems.
⦁ Compact X63N gear size facilitates installation in space-constrained environments like compact equipment panels or skid-based process systems.
⦁ Smooth surface design limits contamination risk and simplifies washdown, aiding in compliance with HACCP and GMP regulations in food and pharma sectors.
⦁ Suitable for demanding industries including wastewater treatment, marine drives, chemical agitation, and heavily sanitized automation equipment.
⦁ Manufacturer: Clean-Geartech – known for hygienic, robust stainless steel gear systems engineered for demanding industrial applications.
⦁ Engineered with stainless steel AISI 316L, the housing and components offer extraordinary corrosion resistance — crucial for applications in aggressive environments like saltwater, disinfectant exposure, and cleanrooms.
⦁ High-efficiency output (94%) ensures minimal energy loss, making the unit ideal for continuous duty operations in process automation or conveyor systems.
⦁ 3-stage gear arrangement delivers a high torque output with a 65.79:1 gear ratio — perfectly suited for low-speed, high-load tasks such as mixers, agitators, or barrel turning systems.
⦁ Integrated Ø35 mm H7 hollow shaft in stainless steel (SS) allows direct mounting to driven shafts — reducing the need for couplings and enhancing system compactness.
⦁ Input shaft Ø19 mm standard and compatibility with 80B14 flange interface enables seamless integration with IEC motors or servo systems.
⦁ Compact X63N gear size facilitates installation in space-constrained environments like compact equipment panels or skid-based process systems.
⦁ Smooth surface design limits contamination risk and simplifies washdown, aiding in compliance with HACCP and GMP regulations in food and pharma sectors.
⦁ Suitable for demanding industries including wastewater treatment, marine drives, chemical agitation, and heavily sanitized automation equipment.
⦁ Manufacturer: Clean-Geartech – known for hygienic, robust stainless steel gear systems engineered for demanding industrial applications.
