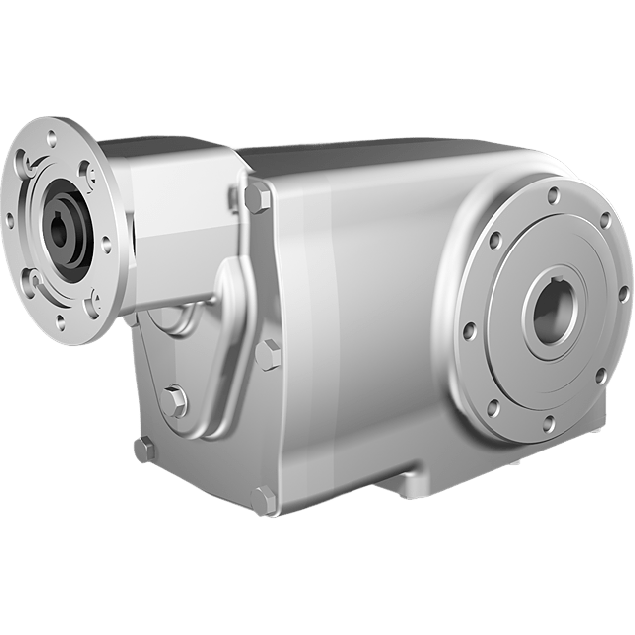

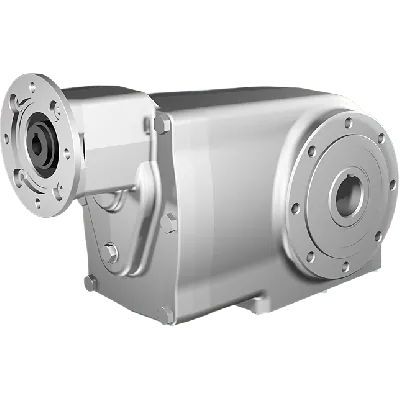

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 65,79:1, input 71B14, B3, stainless steel
HV82PX63NI02-EFBN-QB3-C-OFThis model features a gear ratio of 65.79:1 across 3 gear stages, enabling torque multiplication with minimal space requirements. The input interface is IEC 71B14 compatible, and the input shaft measures 14 mm. The output shaft is a Ø35H7 hollow shaft for easy integration into existing setups. Built with stainless steel AISI 316L gear material, the unit ensures durability in corrosive environments. The gearbox offers 94% efficiency, with a gear size classification of X63N. The BCD input is 85 mm, and the BCD output is 130 mm.
Specifications
Product description
Downloads
€3,250.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
65,79:1
BCD input
85
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X63N
Output speed at 1400 RPM
21.3
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.97
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of hygienic and corrosion-resistant drive solutions, specializing in stainless steel gearboxes designed to meet the stringent requirements of demanding industrial applications. Focused on high durability, chemical resistance, and easy cleanability, Clean-Geartech gear units are widely used in the food, pharmaceutical, chemical, and maritime sectors, where hygiene and long service life are crucial.Key Features and Benefits of the Clean-Geartech X63N Stainless Steel Gearbox:
Robust AISI 316L Stainless Steel Construction – Offers superior resistance to corrosion, acids, and aggressive cleaning agents, making it ideal for washdown environments in the food and pharmaceutical industries.
High Efficiency (94%) – Maximizes energy transfer while minimizing power loss, contributing to sustainable and cost-effective operation over long duty cycles.
Bevel Gear Design with 3 Stages – Ensures precise torque transmission and stable performance in demanding mechanical systems requiring compact yet powerful torque solutions.
High Gear Ratio (65.79:1) – Delivers substantial speed reduction and torque multiplication, ideal for heavy-duty applications such as conveyors, mixers, and processing machinery.
Ø35H7 Hollow Output Shaft in Stainless Steel – Guarantees precise fitment and corrosion resistance in aggressive or hygienic environments, suited for both standard and customized shaft connections.
Input Shaft 14 mm with 71B14 Motor Interface – Enables easy coupling with IEC-standard motors, increasing flexibility in system design and integration workflows.
Output BCD 130 mm and Input BCD 85 mm – Compatible with common flange dimensions for reliable and predictable mounting in OEM systems.
Gear Size X63N – Compact footprint ensures optimal space utilization in machinery with limited installation space.Typical Applications:
Food and Beverage Processing Equipment – Suitable for use in meat, dairy, and beverage plants where hygiene and frequent washdowns are essential.
Pharmaceutical Manufacturing Lines – Provides clean design and resistance to chemical sanitizers, supporting GMP-compliant environments.
Chemical and Marine Industries – Performs reliably in corrosive or saline conditions where conventional gearboxes would degrade rapidly.
Packaging and Conveying Solutions – Enables precision motion control in high-throughput logistics or automated packaging systems.
Robust AISI 316L Stainless Steel Construction – Offers superior resistance to corrosion, acids, and aggressive cleaning agents, making it ideal for washdown environments in the food and pharmaceutical industries.
High Efficiency (94%) – Maximizes energy transfer while minimizing power loss, contributing to sustainable and cost-effective operation over long duty cycles.
Bevel Gear Design with 3 Stages – Ensures precise torque transmission and stable performance in demanding mechanical systems requiring compact yet powerful torque solutions.
High Gear Ratio (65.79:1) – Delivers substantial speed reduction and torque multiplication, ideal for heavy-duty applications such as conveyors, mixers, and processing machinery.
Ø35H7 Hollow Output Shaft in Stainless Steel – Guarantees precise fitment and corrosion resistance in aggressive or hygienic environments, suited for both standard and customized shaft connections.
Input Shaft 14 mm with 71B14 Motor Interface – Enables easy coupling with IEC-standard motors, increasing flexibility in system design and integration workflows.
Output BCD 130 mm and Input BCD 85 mm – Compatible with common flange dimensions for reliable and predictable mounting in OEM systems.
Gear Size X63N – Compact footprint ensures optimal space utilization in machinery with limited installation space.Typical Applications:
Food and Beverage Processing Equipment – Suitable for use in meat, dairy, and beverage plants where hygiene and frequent washdowns are essential.
Pharmaceutical Manufacturing Lines – Provides clean design and resistance to chemical sanitizers, supporting GMP-compliant environments.
Chemical and Marine Industries – Performs reliably in corrosive or saline conditions where conventional gearboxes would degrade rapidly.
Packaging and Conveying Solutions – Enables precision motion control in high-throughput logistics or automated packaging systems.
