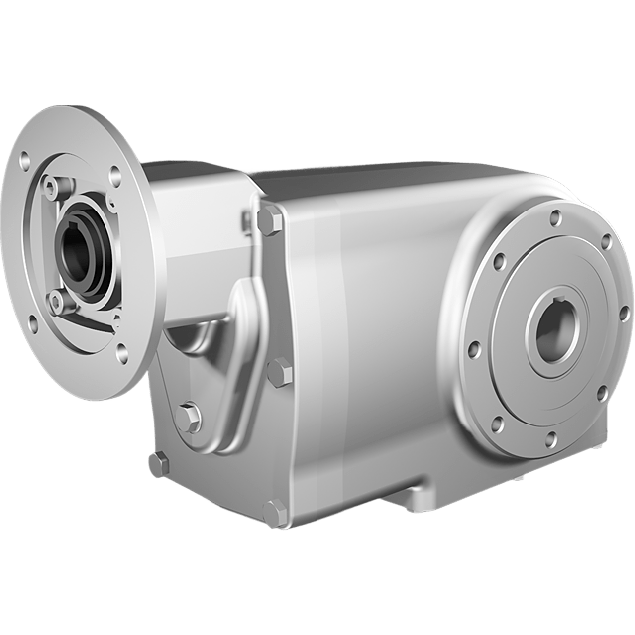

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 56,76:1, input 90B14, V5, stainless steel
HV82PX63NI01-EFBN-TV5-E-OFIt features a gear ratio of 56.76:1 and a 94% efficiency, ensuring optimal torque transmission and minimal energy loss. The unit has a gear size X63N with 3 gear stages, providing reliable performance in high-load applications. The input shaft is 24 mm, while the output shaft is a Ø35H7 hollow shaft. The gear interface follows the 90B14 standard for motor connection. Constructed with stainless steel AISI 316L gears and a stainless steel hollow shaft, it is suited for washdown and hygienic zones. The BCD values are 115 mm input and 130 mm output.
Specifications
Product description
Downloads
€3,357.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
56,76:1
BCD input
115
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X63N
Output speed at 1400 RPM
24.7
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.1
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is synonymous with high-performance gear solutions engineered for demanding industrial environments. Known for precision, durability, and hygiene, Clean-Geartech specializes in stainless steel gearboxes built to withstand corrosive, high-washdown, and sterile environments often found in food processing, pharmaceutical, and chemical industries.Applications & Key Features:
High-grade stainless steel AISI 316L housing ensures superior resistance to corrosion, ideal for hygienic applications such as food & beverage, pharmaceuticals, and marine installations.
Hygienically designed Ø35 mm H7 hollow output shaft in stainless steel (SS hollow shaft) allows for easy integration into drive assemblies while resisting oxidation and chemical exposure.
The 90B14 motor mounting interface guarantees quick and standardized coupling with IEC motors, minimizing downtime and simplifying maintenance in industrial automation systems.
The 3-stage bevel gear configuration delivers a precise reduction ratio of 56.76:1, enabling high torque transmission with smooth and silent operation across sectors such as packaging, process automation, and bottling lines.
94% efficiency rating minimizes energy loss, resulting in lower operating costs and reduced thermal buildup—vital in enclosed or thermally sensitive locations.
The 24 mm input shaft supports robust mechanical coupling, enhancing transmission stability in dynamic load conditions like conveyor systems or robotic actuation modules.
Compact gear size X63N offers installation flexibility in constrained spaces without sacrificing power output, useful in modular equipment designs.
BCD dimensions Input: 115 mm / Output: 130 mm offer a standardized footprint for consistent compatibility across engineering layouts and retrofitting projects.
Built for CIP (Clean-In-Place) and high-pressure washdown compatibility, this gearbox is suitable for environments where cleanliness and contamination control are paramount.
Optimized for long-life and maintenance-free operation, reducing lifecycle costs in automated production lines, wastewater treatment systems, or cleanroom-grade machinery.
High-grade stainless steel AISI 316L housing ensures superior resistance to corrosion, ideal for hygienic applications such as food & beverage, pharmaceuticals, and marine installations.
Hygienically designed Ø35 mm H7 hollow output shaft in stainless steel (SS hollow shaft) allows for easy integration into drive assemblies while resisting oxidation and chemical exposure.
The 90B14 motor mounting interface guarantees quick and standardized coupling with IEC motors, minimizing downtime and simplifying maintenance in industrial automation systems.
The 3-stage bevel gear configuration delivers a precise reduction ratio of 56.76:1, enabling high torque transmission with smooth and silent operation across sectors such as packaging, process automation, and bottling lines.
94% efficiency rating minimizes energy loss, resulting in lower operating costs and reduced thermal buildup—vital in enclosed or thermally sensitive locations.
The 24 mm input shaft supports robust mechanical coupling, enhancing transmission stability in dynamic load conditions like conveyor systems or robotic actuation modules.
Compact gear size X63N offers installation flexibility in constrained spaces without sacrificing power output, useful in modular equipment designs.
BCD dimensions Input: 115 mm / Output: 130 mm offer a standardized footprint for consistent compatibility across engineering layouts and retrofitting projects.
Built for CIP (Clean-In-Place) and high-pressure washdown compatibility, this gearbox is suitable for environments where cleanliness and contamination control are paramount.
Optimized for long-life and maintenance-free operation, reducing lifecycle costs in automated production lines, wastewater treatment systems, or cleanroom-grade machinery.
