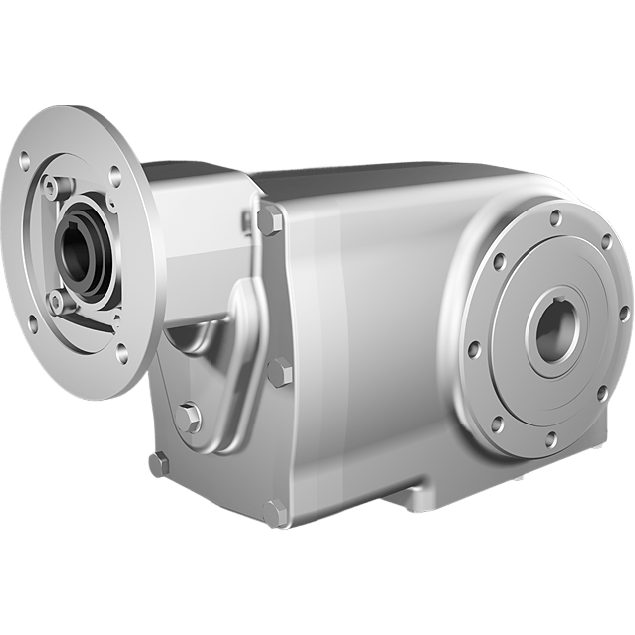

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 56,76:1, input 90B14, B3, stainless steel
HV82PX63NI01-EFBN-TB3-E-OFThis gear unit offers a gear ratio of 56.76:1 over 3 gear stages, delivering efficient torque transmission with 94% efficiency. It features a Ø35 mm hollow output shaft (H7 tolerance) and a Ø24 mm input shaft. The gear material is stainless steel AISI 316L, ensuring resistance to aggressive environments. The unit mounts via a 90B14 motor interface and is configured in the X63N gear size.With a BCD input of 115 mm and a BCD output of 130 mm, the Clean-Geartech X63N fits standard mounting patterns. Suitable for hygienic or corrosive applications.
Specifications
Product description
Downloads
€3,274.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
56,76:1
BCD input
115
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X63N
Output speed at 1400 RPM
24.7
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Product: Clean-Geartech X63N, Bevel Gearbox with Ø35H7 Hollow Shaft, 56.76:1 Ratio, Input 90B14, Stainless SteelKey Features, Benefits, and Applications:
✓ Fully constructed from AISI 316L stainless steel, including SS hollow output shaft (Ø35H7), ensuring maximum resistance to corrosion in washdown environments.
✓ Precision-machined 3-stage bevel gear configuration delivering a high gear ratio of 56.76:1, ideal for high torque, low-speed applications in processing and packaging machinery.
✓ High mechanical efficiency of 94% optimizes energy consumption and reduces operational costs in continuous-duty industrial systems.
✓ Compact gearbox size X63N and a standardized 90B14 motor interface simplify integration into new or existing motor configurations, especially in space-constrained automation lines.
✓ Input shaft diameter of 24 mm matched with 130 mm BCD output and 115 mm BCD input flange dimensions allows seamless implementation across a wide range of OEM and MRO setups.
✓ Designed for industries requiring strict hygiene compliance including food & beverage, chemical processing, and wastewater treatment – supports clean-in-place (CIP) protocols.
✓ The stainless steel SS hollow output shaft simplifies shaft mounting, enabling easy assembly and disassembly while minimizing contamination risk through smooth, sealed surfaces.
✓ Excellent resistance to aggressive cleaning agents, saltwater, and extreme temperatures make it especially suitable for marine installations and chemical washdown zones.
✓ Reliability and low maintenance requirements lower total cost of ownership, while preserving operational uptime in mission-critical processes.
✓ Fully constructed from AISI 316L stainless steel, including SS hollow output shaft (Ø35H7), ensuring maximum resistance to corrosion in washdown environments.
✓ Precision-machined 3-stage bevel gear configuration delivering a high gear ratio of 56.76:1, ideal for high torque, low-speed applications in processing and packaging machinery.
✓ High mechanical efficiency of 94% optimizes energy consumption and reduces operational costs in continuous-duty industrial systems.
✓ Compact gearbox size X63N and a standardized 90B14 motor interface simplify integration into new or existing motor configurations, especially in space-constrained automation lines.
✓ Input shaft diameter of 24 mm matched with 130 mm BCD output and 115 mm BCD input flange dimensions allows seamless implementation across a wide range of OEM and MRO setups.
✓ Designed for industries requiring strict hygiene compliance including food & beverage, chemical processing, and wastewater treatment – supports clean-in-place (CIP) protocols.
✓ The stainless steel SS hollow output shaft simplifies shaft mounting, enabling easy assembly and disassembly while minimizing contamination risk through smooth, sealed surfaces.
✓ Excellent resistance to aggressive cleaning agents, saltwater, and extreme temperatures make it especially suitable for marine installations and chemical washdown zones.
✓ Reliability and low maintenance requirements lower total cost of ownership, while preserving operational uptime in mission-critical processes.
