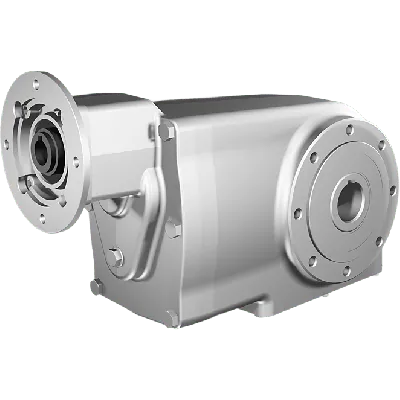

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 56,76:1, input 80B14, B3, stainless steel
HV82PX63NI01-EFBN-RB3-D-OFIt features a 19 mm input shaft and a Ø35 mm output hollow shaft. With a gear ratio of 56.76:1, this 3-stage unit delivers high torque transmission. The gear housing and internal components are made of stainless steel AISI 316L, ensuring resistance to aggressive cleaning agents and corrosion. The input flange is compatible with IEC 80B14 motors. With a BCD input of 100 mm and BCD output of 130 mm, installation is straightforward. The unit achieves 94% efficiency and is classified as Gear size X63N.
Specifications
Product description
Downloads
€3,255.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
56,76:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
24.7
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Overview: Clean-Geartech is a renowned European manufacturer specializing in hygienic, stainless steel gear solutions designed for the most demanding industrial environments. Built from high-grade stainless materials, Clean-Geartech gear units are engineered for durability, corrosion resistance, and easy integration into automation systems within food, pharmaceutical, and cleanroom applications. Technical Overview: Clean-Geartech X63N is a 3-stage bevel gearbox engineered from AISI 316L stainless steel, tailored for rigorous technical environments where hygiene and mechanical efficiency are paramount. Key Features and Application Capabilities:
● Fully stainless steel AISI 316L housing offers excellent corrosion resistance, ideal for food & beverage, marine, and chemical industries.
● High mechanical efficiency of 94% improves energy utilization and minimizes operating costs in precision-driven systems.
● Stainless steel Ø35H7 hollow output shaft (SS hollow shaft) provides both structural robustness and hygienic design, perfect for applications with CIP (clean-in-place) requirements.
● Precisely engineered gear ratio of 56.76:1 allows for accurate speed reduction in conveyor systems, mixers, and dosing machinery.
● Compact gear size X63N enables easy integration in tight mechanical setups without compromising performance.
● 3-stage gear configuration ensures smooth power transmission and extended lifetime, suitable for continuous and heavy-duty operations.
● 80B14 input motor interface facilitates seamless coupling with IEC-standard motors for plug-and-play installations.
● Input shaft Ø19 mm ensures compatibility with a range of motor types and torque delivery standards.
● Output torque and load-handling capacity supported by the larger Ø35 mm output shaft, enhancing operational resilience under load.
● Exceptional cleanliness and smooth surface finish complies with EHEDG and FDA hygienic design requirements, reducing the risk of bacterial accumulation.
● Ideal for use in automated packaging, pharmaceutical forming lines, dairy processing, or any engineering environment demanding robust, hygienic mechanical motion. Engineered for reliability, precision, and extreme environmental conditions, the Clean-Geartech X63N bevel gearbox stands as a premium solution for engineers requiring performance and durability in stainless steel gear systems.
● Fully stainless steel AISI 316L housing offers excellent corrosion resistance, ideal for food & beverage, marine, and chemical industries.
● High mechanical efficiency of 94% improves energy utilization and minimizes operating costs in precision-driven systems.
● Stainless steel Ø35H7 hollow output shaft (SS hollow shaft) provides both structural robustness and hygienic design, perfect for applications with CIP (clean-in-place) requirements.
● Precisely engineered gear ratio of 56.76:1 allows for accurate speed reduction in conveyor systems, mixers, and dosing machinery.
● Compact gear size X63N enables easy integration in tight mechanical setups without compromising performance.
● 3-stage gear configuration ensures smooth power transmission and extended lifetime, suitable for continuous and heavy-duty operations.
● 80B14 input motor interface facilitates seamless coupling with IEC-standard motors for plug-and-play installations.
● Input shaft Ø19 mm ensures compatibility with a range of motor types and torque delivery standards.
● Output torque and load-handling capacity supported by the larger Ø35 mm output shaft, enhancing operational resilience under load.
● Exceptional cleanliness and smooth surface finish complies with EHEDG and FDA hygienic design requirements, reducing the risk of bacterial accumulation.
● Ideal for use in automated packaging, pharmaceutical forming lines, dairy processing, or any engineering environment demanding robust, hygienic mechanical motion. Engineered for reliability, precision, and extreme environmental conditions, the Clean-Geartech X63N bevel gearbox stands as a premium solution for engineers requiring performance and durability in stainless steel gear systems.
