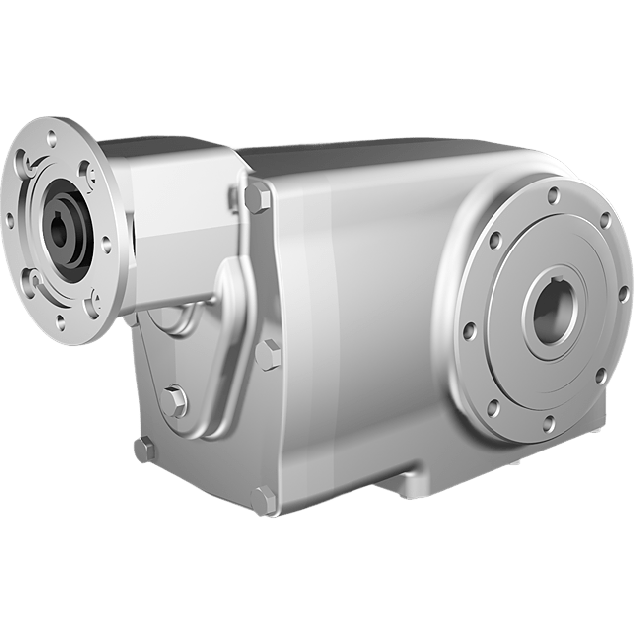

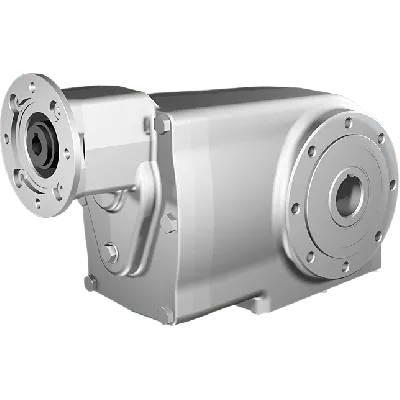

Clean-Geartech X63N Bevel Gearbox Ø35H7 Hollow Shaft, 252.36:1 Ratio, Input 71B14, Stainless Steel Clean-Geartech is a leading manufacturer specialized in developing high-performance gearboxes designed for heavy-duty industrial applications. With a strong focus on hygiene, durability, and corrosion resistance, Clean-Geartech products are ideal for use in food processing, pharmaceuticals, marine, and chemical industries. All housings and mechanical interfaces are engineered using top-tier materials to ensure long-lasting stability even in the most demanding environments.Key Features and Benefits:
• High corrosion resistance due to stainless steel AISI 316L gear housing – enables operation in aggressive or hygienic environments such as food processing or offshore industries.

• Ø35H7 stainless steel hollow output shaft (SS hollow shaft) – provides excellent resistance to wear and corrosion while ensuring precise torque transmission in washdown areas or chemical exposure zones.

• Compact housing size (Gear Size: X63N) – optimized footprint for installations where space is limited, such as automation units or conveyor drives.

• High gear ratio of 252.36:1 – delivers significant torque multiplication for low-speed, high-force applications like conveyor indexing, mixers and rotary valves.

• 3-stage gear transmission – ensures superior torque output and smooth power transfer ideal for precision-driven machines in manufacturing processes.

• Gear input shaft Ø14 mm (input BCD 85) with interface 71B14 – enables easy connection to IEC-standard motors, increasing compatibility and flexibility in drive system configurations.

• Output BCD of 130 mm – allows easy mounting integration with standardized output flanges or custom-designed couplings.

• Exceptional efficiency rating of 94% – minimizes energy loss, supporting sustainable and cost-effective operation in continuous-use systems.

• Made by Clean-Geartech – renowned for quality and reliability in hygienic and corrosion-resistant gearing solutions globally, ensuring customer confidence and long-term performance.
Applications:
• Ideal for use in food and beverage machinery, where hygiene and stainless steel construction are mandatory.

• Suitable for marine and offshore applications requiring high corrosion resistance and compact torque-heavy drive systems.

• Excellent for use in chemical or pharmaceutical production environments, where resistance to cleaning agents and contaminants is critical.

• Perfect for integration into automated warehousing or robotic handling systems, where precision and reliability are required.
