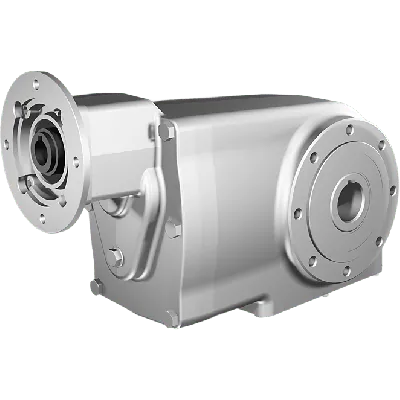

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 193,36:1, input 80B14, V5, stainless steel
HV82PX63NI12-EFBN-RV5-D-OFFeaturing a gear ratio of 193.36:1 and three gear stages, this configuration ensures reliable torque conversion. The Ø35 mm H7 hollow output shaft and Ø19 mm input shaft are dimensioned for consistent mechanical integration. The input flange is 80B14, allowing standard motor interface compatibility.Built with AISI 316L stainless steel gears, the unit offers high corrosion resistance. The gear housing size is X63N and operation achieves an efficiency of 94%. The gearbox features a BCD input of 100 mm and a BCD output of 130 mm.
Specifications
Product description
Downloads
€3,338.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
193,36:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
7.2
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.33
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted European manufacturer specializing in stainless steel gearboxes tailored for demanding industrial environments. Known for their durability, hygiene-friendly design, and corrosion resistance, Clean-Geartech products meet high standards in industries such as food and beverage, pharmaceuticals, and marine applications.Key Features and Application Advantages:
High Gear Ratio of 193.36:1 – Enables precise speed reduction and high torque output ideal for applications requiring controlled movement and heavy-load performance, such as conveyors, filling systems, and mixers.
Efficiency of 94% – Maximizes energy transmission with minimal losses, reducing operational costs over time while supporting high-performance cycles in automation systems and processing machinery.
3-Stage Gear Design – Provides enhanced reliability and increased torque transmission, especially beneficial in high-duty, continuous operations such as packaging lines or high-torque rotary actuators.
Gear Housing in AISI 316L Stainless Steel – Offers outstanding corrosion resistance, supporting use in aggressive or high-humidity environments like chemical processing or marine-grade applications.
Ø35H7 Hollow Output Shaft in Stainless Steel – Facilitates easy integration with drive systems through shrink disk or keyway connections, ideal for conveyor systems and rotating drums in food processing setups.
19 mm Input Shaft Diameter – A standardized dimension for direct coupling with a variety of motor types, enabling flexible integration in modular automation cells and robotic applications.
IEC B14 Motor Interface (Size 80) – Ensures easy and standardized motor mounting and replacement, simplifying maintenance and enhancing compatibility with a wide range of geared motors.
Compact Gear Size: X63N – Minimal footprint for low-space installations while maintaining high-performance output, suitable for OEM machine builders and tight enclosures in stainless steel equipment.The Clean-Geartech X63N gearbox is specifically engineered for industries demanding uncompromising hygiene, robustness, and reliability — making it ideal for food processing lines, pharmaceutical bottling, and chemical dosing systems. Its premium design supports prolonged use in harsh or hygienically sensitive environments with minimal maintenance requirements.
High Gear Ratio of 193.36:1 – Enables precise speed reduction and high torque output ideal for applications requiring controlled movement and heavy-load performance, such as conveyors, filling systems, and mixers.
Efficiency of 94% – Maximizes energy transmission with minimal losses, reducing operational costs over time while supporting high-performance cycles in automation systems and processing machinery.
3-Stage Gear Design – Provides enhanced reliability and increased torque transmission, especially beneficial in high-duty, continuous operations such as packaging lines or high-torque rotary actuators.
Gear Housing in AISI 316L Stainless Steel – Offers outstanding corrosion resistance, supporting use in aggressive or high-humidity environments like chemical processing or marine-grade applications.
Ø35H7 Hollow Output Shaft in Stainless Steel – Facilitates easy integration with drive systems through shrink disk or keyway connections, ideal for conveyor systems and rotating drums in food processing setups.
19 mm Input Shaft Diameter – A standardized dimension for direct coupling with a variety of motor types, enabling flexible integration in modular automation cells and robotic applications.
IEC B14 Motor Interface (Size 80) – Ensures easy and standardized motor mounting and replacement, simplifying maintenance and enhancing compatibility with a wide range of geared motors.
Compact Gear Size: X63N – Minimal footprint for low-space installations while maintaining high-performance output, suitable for OEM machine builders and tight enclosures in stainless steel equipment.The Clean-Geartech X63N gearbox is specifically engineered for industries demanding uncompromising hygiene, robustness, and reliability — making it ideal for food processing lines, pharmaceutical bottling, and chemical dosing systems. Its premium design supports prolonged use in harsh or hygienically sensitive environments with minimal maintenance requirements.
