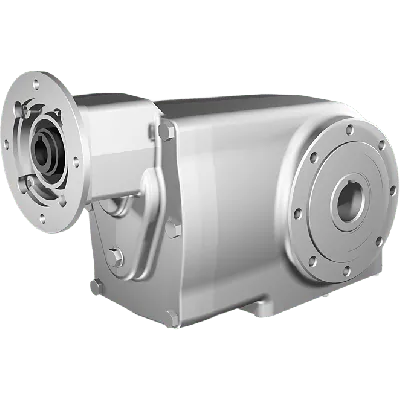

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 193,36:1, input 80B14, B3, stainless steel
HV82PX63NI12-EFBN-RB3-D-OFWith a gear reduction ratio of 193.36:1 and three gear stages, this unit ensures reliable torque transmission. It features an input shaft diameter of 19 mm and a Ø35 mm H7 hollow output shaft. The gear size is X63N, interfacing via a standard 80B14 flange. Constructed with gears made of stainless steel AISI 316L, it ensures high corrosion resistance. The unit delivers a mechanical efficiency of 94% and supports BCD input: 100 and BCD output: 130. Suitable for hygienic or corrosive environments requiring stainless steel gearing.
Specifications
Product description
Downloads
€3,255.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
193,36:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
7.2
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.33
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X63N is a high-performance bevel gearbox engineered specifically for demanding industrial applications where hygiene, corrosion resistance, and reliability are paramount. Produced by Clean-Geartech — a renowned manufacturer known for precision-engineered, stainless-steel gear solutions tailored for hygienic and aggressive environments such as food processing, chemical, and pharmaceutical industries — this unit ensures dependable performance under the toughest conditions.Key Features & Application Benefits:
Stainless Steel AISI 316L Housing — offers exceptional corrosion resistance, ideal for cleanroom environments, high-moisture, or chemically aggressive areas like the food, marine, and pharmaceutical industries. Easy to clean and compliant with EHEDG and FDA requirements.
Three-Stage Gear Transmission — the 3-stage configuration delivers a very high gear reduction ratio of 193.36:1, making it perfect for applications requiring high torque at low speeds, such as mixers, conveyors, or dosing systems.
Ø35H7 Hollow Output Shaft in Stainless Steel — designed for precise fit and easy integration into existing shafts or keyed connections. Its stainless steel execution ensures long-term durability with resistance to shaft deformation or contamination risks.
94% Efficiency — thanks to precision-machined internal gearing, energy losses are minimized, resulting in reduced operational costs in continuous-duty applications like automated production lines and process industry systems.
Input Shaft Ø19 mm — standard size ensures compatibility with a wide range of motors via coupling or direct mount solutions for seamless system integration.
Motor Mount Interface: IEC 80B14 — standardized motor flange offering flexible mounting for IEC electric motors, common in industrial automation setups.
Gearbox Size X63N — compact footprint optimized for medium load applications without compromising power density; adaptable within space-constrained machinery.
High Torque Transmission — perfect for use in heavy-duty machinery such as agitating tanks, screw conveyors, packing lines, and rotary machinery in hygienic zones.Built with a commitment to durability, hygienic design, and efficiency, the Clean-Geartech X63N delivers outstanding performance for engineers and technical specialists looking for uncompromising mechanical drive solutions.
Stainless Steel AISI 316L Housing — offers exceptional corrosion resistance, ideal for cleanroom environments, high-moisture, or chemically aggressive areas like the food, marine, and pharmaceutical industries. Easy to clean and compliant with EHEDG and FDA requirements.
Three-Stage Gear Transmission — the 3-stage configuration delivers a very high gear reduction ratio of 193.36:1, making it perfect for applications requiring high torque at low speeds, such as mixers, conveyors, or dosing systems.
Ø35H7 Hollow Output Shaft in Stainless Steel — designed for precise fit and easy integration into existing shafts or keyed connections. Its stainless steel execution ensures long-term durability with resistance to shaft deformation or contamination risks.
94% Efficiency — thanks to precision-machined internal gearing, energy losses are minimized, resulting in reduced operational costs in continuous-duty applications like automated production lines and process industry systems.
Input Shaft Ø19 mm — standard size ensures compatibility with a wide range of motors via coupling or direct mount solutions for seamless system integration.
Motor Mount Interface: IEC 80B14 — standardized motor flange offering flexible mounting for IEC electric motors, common in industrial automation setups.
Gearbox Size X63N — compact footprint optimized for medium load applications without compromising power density; adaptable within space-constrained machinery.
High Torque Transmission — perfect for use in heavy-duty machinery such as agitating tanks, screw conveyors, packing lines, and rotary machinery in hygienic zones.Built with a commitment to durability, hygienic design, and efficiency, the Clean-Geartech X63N delivers outstanding performance for engineers and technical specialists looking for uncompromising mechanical drive solutions.
