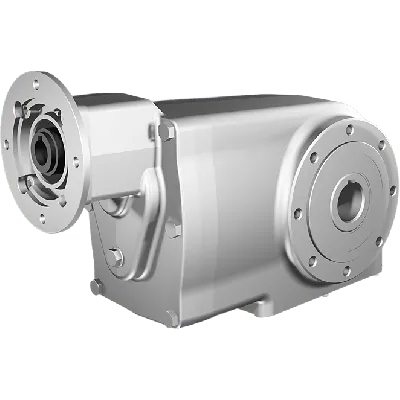

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 178,96:1, input 80B14, V5, stainless steel
HV82PX63NI11-EFBN-RV5-D-OFThis model features a gear ratio of 178.96:1 and a 3-stage gear configuration for reliable torque transmission. It provides a 94% efficiency, optimizing energy use. The input shaft measures 19 mm and connects via a standard 80B14 gear motor interface. The output shaft is Ø35 mm H7 for precise fitment.Constructed with stainless steel AISI 316L gears and a stainless steel Ø35H7 hollow output shaft, the unit offers enhanced corrosion resistance. The gear size is X63N, ensuring compatibility with compact installations. The BCD input is 100 mm, and BCD output is 130 mm for alignment with standard flanges.
Specifications
Product description
Downloads
€3,338.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
178,96:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
7.8
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.36
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer of high-performance stainless steel gear solutions, specifically engineered for demanding industrial environments. Combining innovative engineering with hygienic design, Clean-Geartech’s products cater to sectors such as food processing, pharmaceuticals, marine, and chemical industries — wherever corrosion resistance, hygiene, and mechanical precision are essential. Their gearboxes are known for reliability, long operational life, and compatibility with demanding washdown procedures.Key Features & Applications:
✔ Constructed in corrosion-resistant AISI 316L stainless steel, ideal for highly corrosive or hygienic environments such as food processing, pharmaceutical production, and marine applications.
✔ Precision-engineered 3-stage bevel gearbox provides high torque transmission with excellent mechanical efficiency — rated at 94% — reducing energy loss and improving system performance in continuous operation industrial systems.
✔ High gear ratio of 178.96:1 allows for precise speed reduction with torque amplification, making it suitable for low-speed, high-torque applications like conveyors, mixers, or automated lifting systems.
✔ Hollow output shaft Ø35H7 in stainless steel allows for direct connection to driven parts via shrink disc or torque arm, simplifying installation and maintenance, particularly in confined or sealed environments.
✔ Input flange according to IEC standard 80B14 ensures compatibility with a wide range of electric motors, enabling seamless integration into existing drive systems.
✔ Compact gear size (X63N) with an input shaft diameter of 19 mm ensures optimal space utilization in machine designs where footprint and weight must be minimized.
✔ Fully sealed gear housing resists ingress of dust, moisture, and aggressive cleaning agents, promoting extended service life even in CIP (Clean-In-Place) environments.
✔ Smooth, crevice-free surfaces reduce bacterial buildup and meet strict hygienic standards required in regulated sectors.
✔ Ideal for use in automation systems, washdown environments, and robust industrial machinery requiring precise, efficient rotary motion under harsh conditions.
✔ Constructed in corrosion-resistant AISI 316L stainless steel, ideal for highly corrosive or hygienic environments such as food processing, pharmaceutical production, and marine applications.
✔ Precision-engineered 3-stage bevel gearbox provides high torque transmission with excellent mechanical efficiency — rated at 94% — reducing energy loss and improving system performance in continuous operation industrial systems.
✔ High gear ratio of 178.96:1 allows for precise speed reduction with torque amplification, making it suitable for low-speed, high-torque applications like conveyors, mixers, or automated lifting systems.
✔ Hollow output shaft Ø35H7 in stainless steel allows for direct connection to driven parts via shrink disc or torque arm, simplifying installation and maintenance, particularly in confined or sealed environments.
✔ Input flange according to IEC standard 80B14 ensures compatibility with a wide range of electric motors, enabling seamless integration into existing drive systems.
✔ Compact gear size (X63N) with an input shaft diameter of 19 mm ensures optimal space utilization in machine designs where footprint and weight must be minimized.
✔ Fully sealed gear housing resists ingress of dust, moisture, and aggressive cleaning agents, promoting extended service life even in CIP (Clean-In-Place) environments.
✔ Smooth, crevice-free surfaces reduce bacterial buildup and meet strict hygienic standards required in regulated sectors.
✔ Ideal for use in automation systems, washdown environments, and robust industrial machinery requiring precise, efficient rotary motion under harsh conditions.
