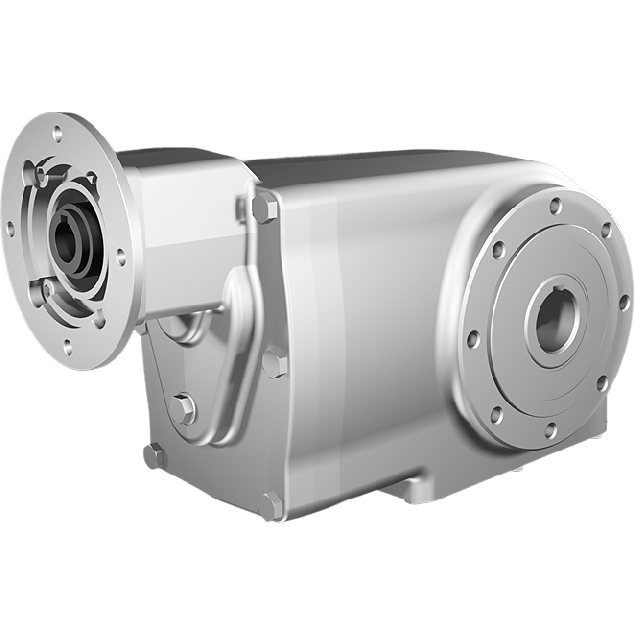

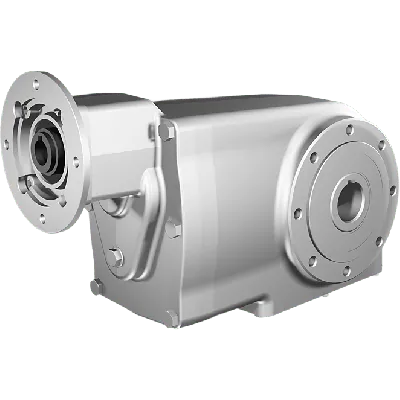

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 178,96:1, input 80B14, B3, stainless steel
HV82PX63NI11-EFBN-RB3-D-OFIt features a gear size of X63N and a ratio of 178.96:1, achieved through 3 gear stages. The gear material is stainless steel AISI 316L, ensuring corrosion resistance in harsh environments. The unit provides a gear input shaft diameter of 19 mm and a gear output shaft diameter of 35 mm. Designed with a BCD input of 100 mm and BCD output of 130 mm, it connects via a gear motor interface of type 80B14. The efficiency is 94%, supporting energy-optimized performance.
Specifications
Product description
Downloads
€3,255.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
178,96:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
7.8
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.36
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted manufacturer specializing in hygienic and robust transmission solutions for demanding industrial applications. With a focus on precision engineering and corrosion-resistant materials, Clean-Geartech gearboxes are certified for use in food processing, chemical, and pharmaceutical industries, where hygiene, durability, and performance are essential.Key Features and Application Benefits:
• Made entirely from AISI 316L stainless steel, the gearbox housing offers high corrosion resistance, ideal for harsh environments and hygienic applications such as food, beverage, and pharmaceutical production.
• Three-stage gear design with a high reduction ratio of 178.96:1 allows for precise torque control and optimal speed reduction, making it suitable for processes requiring controlled, low-speed output such as conveyors, mixers, and filling machines.
• Output shaft Ø35 mm H7 hollow stainless steel shaft enables direct integration with driven machinery while maintaining cleanability and strength—ideal for hygienic or CIP (Cleaning-in-Place) systems.
• Input shaft Ø19 mm designed with B14 flange interface (80B14) enables compatibility with common IEC-standard motor mounts, ensuring easy integration into industrial motor systems.
• High efficiency rating of 94% reduces energy consumption and heat generation, optimizing the gearbox for continuous duty in energy-sensitive operations like packaging lines and motion control setups.
• Compact gearbox size X63N provides a balance between performance and footprint, particularly beneficial in space-restricted layouts.
• Robust bevel gear construction ensures quiet, reliable torque transmission with long service intervals and minimal maintenance—ideal for automated and continuous process environments.
• Fully sealed design prevents contamination, supporting installation in washdown zones and other environments with stringent hygiene requirements. Targeted for engineers and technical specialists, the Clean-Geartech X63N is a powerful, versatile, and hygienic gear solution for high-demand industrial automation applications.
• Made entirely from AISI 316L stainless steel, the gearbox housing offers high corrosion resistance, ideal for harsh environments and hygienic applications such as food, beverage, and pharmaceutical production.
• Three-stage gear design with a high reduction ratio of 178.96:1 allows for precise torque control and optimal speed reduction, making it suitable for processes requiring controlled, low-speed output such as conveyors, mixers, and filling machines.
• Output shaft Ø35 mm H7 hollow stainless steel shaft enables direct integration with driven machinery while maintaining cleanability and strength—ideal for hygienic or CIP (Cleaning-in-Place) systems.
• Input shaft Ø19 mm designed with B14 flange interface (80B14) enables compatibility with common IEC-standard motor mounts, ensuring easy integration into industrial motor systems.
• High efficiency rating of 94% reduces energy consumption and heat generation, optimizing the gearbox for continuous duty in energy-sensitive operations like packaging lines and motion control setups.
• Compact gearbox size X63N provides a balance between performance and footprint, particularly beneficial in space-restricted layouts.
• Robust bevel gear construction ensures quiet, reliable torque transmission with long service intervals and minimal maintenance—ideal for automated and continuous process environments.
• Fully sealed design prevents contamination, supporting installation in washdown zones and other environments with stringent hygiene requirements. Targeted for engineers and technical specialists, the Clean-Geartech X63N is a powerful, versatile, and hygienic gear solution for high-demand industrial automation applications.
