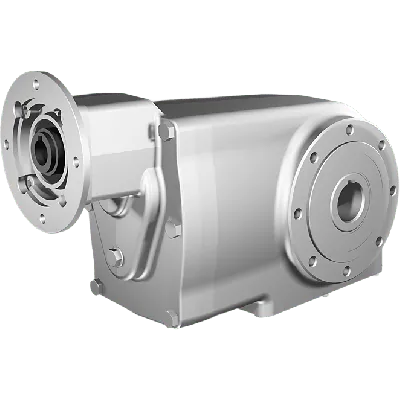

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 163,16:1, input 80B14, V5, stainless steel
HV82PX63NI10-EFBN-RV5-D-OFThis unit features a ratio of 163.16:1 and a three-stage gear configuration. The gear housing and internal components are made of stainless steel AISI 316L, making it suitable for corrosion-resistant environments. It supports a gear motor interface of size 80B14 and includes a Ø35H7 hollow output shaft combined with a 19 mm input shaft. The gear size is X63N with a 94% efficiency rating. Additionally, it offers BCD input: 100 and BCD output: 130, ensuring compatibility with standard mounting interfaces.
Specifications
Product description
Downloads
€3,338.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
163,16:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
8.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.39
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a specialized manufacturer of high-performance stainless steel gears designed for demanding environments with stringent hygiene and corrosion resistance requirements. Renowned for their use in pharmaceutical, food processing, chemical, and marine applications, Clean-Geartech products combine advanced engineering with robust materials to ensure continuous operation in harsh industrial conditions.Key Features, Benefits & Applications:
• Stainless steel housing (AISI 316L): Offers exceptional resistance to corrosion, making it ideal for use in washdown areas and aggressive media environments in the food, beverage, pharmaceutical, and chemical industries. Allows extended service life even under continuous exposure to cleaning agents and high humidity.
• Ø35H7 stainless steel hollow output shaft: Enables direct coupling to driven equipment, reducing the need for couplings or adapters. Ensures a hygienic, easy-to-clean interface with processing machinery.
• Input interface 80B14: Designed for compatibility with standard IEC motors, allowing for flexible motor selection and easy integration into existing systems. Simplifies maintenance and accelerates installation times.
• Gear ratio 163.16:1 across 3-stage bevel gear design: Provides high torque multiplication and precise motion control in compact applications such as conveyor drives, mixers, and agitators. Ideal for low-speed, high-load applications.
• Input shaft Ø19 mm: Supports efficient power transmission from the motor to the gear system while minimizing backlash and mechanical wear.
• Overall efficiency up to 94%: Ensures minimal energy loss and high operational performance, contributing to energy savings in continuous-duty applications.
• Gear size X63N: Compact footprint suited for space-constrained installations while delivering high reliability and ruggedness. This gear unit is engineered for technical experts seeking reliability, hygiene, and precision in critical process environments where only stainless-steel construction meets the required standards.
• Stainless steel housing (AISI 316L): Offers exceptional resistance to corrosion, making it ideal for use in washdown areas and aggressive media environments in the food, beverage, pharmaceutical, and chemical industries. Allows extended service life even under continuous exposure to cleaning agents and high humidity.
• Ø35H7 stainless steel hollow output shaft: Enables direct coupling to driven equipment, reducing the need for couplings or adapters. Ensures a hygienic, easy-to-clean interface with processing machinery.
• Input interface 80B14: Designed for compatibility with standard IEC motors, allowing for flexible motor selection and easy integration into existing systems. Simplifies maintenance and accelerates installation times.
• Gear ratio 163.16:1 across 3-stage bevel gear design: Provides high torque multiplication and precise motion control in compact applications such as conveyor drives, mixers, and agitators. Ideal for low-speed, high-load applications.
• Input shaft Ø19 mm: Supports efficient power transmission from the motor to the gear system while minimizing backlash and mechanical wear.
• Overall efficiency up to 94%: Ensures minimal energy loss and high operational performance, contributing to energy savings in continuous-duty applications.
• Gear size X63N: Compact footprint suited for space-constrained installations while delivering high reliability and ruggedness. This gear unit is engineered for technical experts seeking reliability, hygiene, and precision in critical process environments where only stainless-steel construction meets the required standards.
