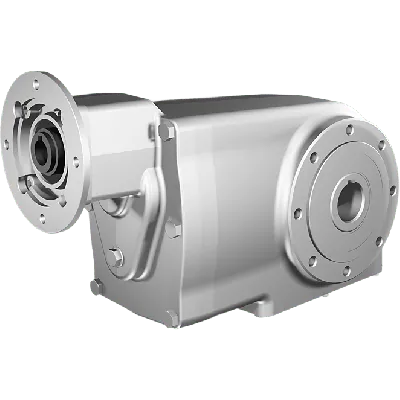

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 163,16:1, input 80B14, B3, stainless steel
HV82PX63NI10-EFBN-RB3-D-OFFeaturing a gear size: X63N and ratio: 163.16:1, it delivers reliable torque conversion through 3 gear stages. The gear input shaft: Ø19 mm and output shaft: Ø35 mm (H7 tolerance) are compatible with standard interfaces, while the gear motor interface: 80B14 ensures integration in existing drive systems. The gear material: stainless steel AISI 316L provides high corrosion resistance. With a mechanical efficiency of 94%, and BCD input: 100 / BCD output: 130, the unit is suitable for hygienic or corrosive environments.
Specifications
Product description
Downloads
€3,255.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
163,16:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
8.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.39
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech X63N, Bevel Gearbox Ø35H7 Hollow Shaft, 163.16:1, Input 80B14, Stainless SteelClean-Geartech is a specialized manufacturer of high-performance gear solutions for demanding industrial environments. The brand is known for its focus on hygienic design, corrosion resistance, and durable construction tailored for industries such as food & beverage, pharmaceutical, chemical processing, and marine applications. All gear units are engineered with both efficiency and longevity in mind, ensuring optimal performance under harsh operating conditions.Key Features, Advantages, and Typical Applications:
Stainless Steel Housing (AISI 316L): Designed for extreme corrosion resistance, making it ideal for hygiene-sensitive and aggressive environments such as food processing, pharma, and offshore installations.
Hollow Output Shaft Ø35 mm H7 Stainless Steel: Provides easy and precise connection to drive elements without the need for additional couplings; ideal for direct-drive applications in conveyor systems and rotary machinery.
High Gear Ratio (163.16:1) in Three Stages: Delivers excellent torque multiplication and smooth speed reduction, making it perfect for lifting equipment, agitators, and low-speed rotary systems with high load demands.
High Efficiency (94%): Maximizes energy transmission with minimal loss, reducing operational costs in automated production lines and continuous duty systems.
Input Shaft Ø19 mm and B14 Flange Mount (Size 80): Standardized motor interface enables compatibility with IEC motors, simplifying integration in modular drive systems.
Compact Size – Gearbox X63N: Space-saving solution suitable for installations where limited mounting dimensions are critical, such as in packaging machines or compact production cells.
Precision-Cut Bevel Gearing: Ensures quiet operation and long service life, ideal for precision machinery, valve actuators, and dosing systems where reliability is paramount.
Fully Sealed Housing with Smooth Surface: Facilitates wash-down and complies with hygienic design standards, suitable for cleanroom environments and CIP/SIP procedures.Clean-Geartech’s X63N gear unit combines advanced material technology with mechanical precision, offering engineers a robust and flexible solution for high-torque, corrosion-resistant applications.
Stainless Steel Housing (AISI 316L): Designed for extreme corrosion resistance, making it ideal for hygiene-sensitive and aggressive environments such as food processing, pharma, and offshore installations.
Hollow Output Shaft Ø35 mm H7 Stainless Steel: Provides easy and precise connection to drive elements without the need for additional couplings; ideal for direct-drive applications in conveyor systems and rotary machinery.
High Gear Ratio (163.16:1) in Three Stages: Delivers excellent torque multiplication and smooth speed reduction, making it perfect for lifting equipment, agitators, and low-speed rotary systems with high load demands.
High Efficiency (94%): Maximizes energy transmission with minimal loss, reducing operational costs in automated production lines and continuous duty systems.
Input Shaft Ø19 mm and B14 Flange Mount (Size 80): Standardized motor interface enables compatibility with IEC motors, simplifying integration in modular drive systems.
Compact Size – Gearbox X63N: Space-saving solution suitable for installations where limited mounting dimensions are critical, such as in packaging machines or compact production cells.
Precision-Cut Bevel Gearing: Ensures quiet operation and long service life, ideal for precision machinery, valve actuators, and dosing systems where reliability is paramount.
Fully Sealed Housing with Smooth Surface: Facilitates wash-down and complies with hygienic design standards, suitable for cleanroom environments and CIP/SIP procedures.Clean-Geartech’s X63N gear unit combines advanced material technology with mechanical precision, offering engineers a robust and flexible solution for high-torque, corrosion-resistant applications.
