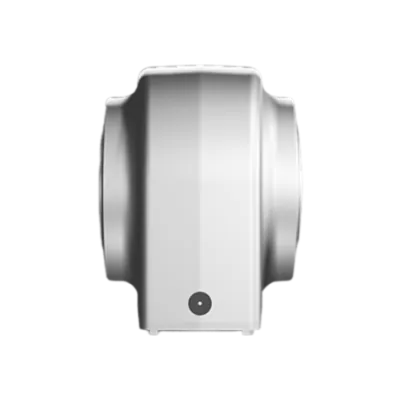

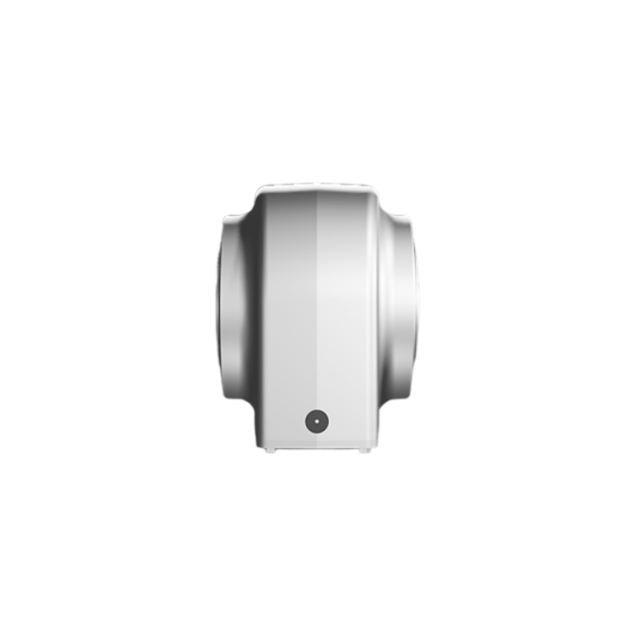

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 125,82:1, input 80B14, B3, stainless steel
HV82PX63NI08-EFBN-RB3-D-OFIt features a gear ratio of 125.82:1 and operates with 94% efficiency. The input shaft diameter is 19 mm and the output shaft is a Ø35H7 hollow design. The gearbox housing is built to size X63N with 3 gear stages for optimized torque transmission. The input flange conforms to IEC 80B14 standards for easy motor integration. Made from stainless steel AISI 316L, including the gears and hollow shaft, the unit offers high chemical and corrosion resistance. It has a BCD input of 100 mm and a BCD output of 130 mm for secure mounting.
Specifications
Product description
Downloads
€3,255.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
125,82:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
11.1
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.51
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium Scandinavian brand specializing in hygienic gearbox solutions optimized for demanding industrial and engineering environments. Renowned for precision, durability, and corrosion resistance, Clean-Geartech’s products are manufactured to meet stringent hygienic design requirements, making them particularly suitable for sectors such as food processing, pharmaceuticals, marine, and chemical processing.Key Features and Application Benefits:
Manufactured from stainless steel AISI 316L, this gear delivers maximum corrosion resistance, making it ideal for applications exposed to aggressive cleaning agents or harsh environments such as offshore, pharma, and food industries.
Equipped with a Ø35H7 stainless steel hollow shaft, allowing for direct and hygienic coupling with driven shafts, reducing the need for couplings and minimizing contamination risks in sensitive environments.
The gear ratio of 125.82:1 enables high torque transmission while allowing precise speed reduction, suitable for conveyors, mixers, and lifting systems requiring controlled movement.
High efficiency rating of 94% ensures energy-efficient operation, optimized for continuous-duty processes in automated manufacturing and cleanroom environments.
A 3-stage gear design provides smooth torque transmission and mechanical stability, making it fit for heavy-duty cycles and high-load applications such as packaging machines or batch-handling systems.
Input shaft dimension Ø19 mm is compatible with standard IEC motors via the 80B14 motor interface, simplifying installation and reducing downtime during integration or maintenance.
Compact X63N gearbox housing dimension allows for space-saving installation in machine frames or cabinets, without compromising performance or hygiene standards.
Ideal for clean-in-place (CIP) or washdown environments due to its smooth exterior surfaces and stainless steel material, minimizing bacterial retention and ensuring food-grade compliance. This gearbox is a robust solution for any application that demands low maintenance, high performance, and extreme hygiene.
Manufactured from stainless steel AISI 316L, this gear delivers maximum corrosion resistance, making it ideal for applications exposed to aggressive cleaning agents or harsh environments such as offshore, pharma, and food industries.
Equipped with a Ø35H7 stainless steel hollow shaft, allowing for direct and hygienic coupling with driven shafts, reducing the need for couplings and minimizing contamination risks in sensitive environments.
The gear ratio of 125.82:1 enables high torque transmission while allowing precise speed reduction, suitable for conveyors, mixers, and lifting systems requiring controlled movement.
High efficiency rating of 94% ensures energy-efficient operation, optimized for continuous-duty processes in automated manufacturing and cleanroom environments.
A 3-stage gear design provides smooth torque transmission and mechanical stability, making it fit for heavy-duty cycles and high-load applications such as packaging machines or batch-handling systems.
Input shaft dimension Ø19 mm is compatible with standard IEC motors via the 80B14 motor interface, simplifying installation and reducing downtime during integration or maintenance.
Compact X63N gearbox housing dimension allows for space-saving installation in machine frames or cabinets, without compromising performance or hygiene standards.
Ideal for clean-in-place (CIP) or washdown environments due to its smooth exterior surfaces and stainless steel material, minimizing bacterial retention and ensuring food-grade compliance. This gearbox is a robust solution for any application that demands low maintenance, high performance, and extreme hygiene.
