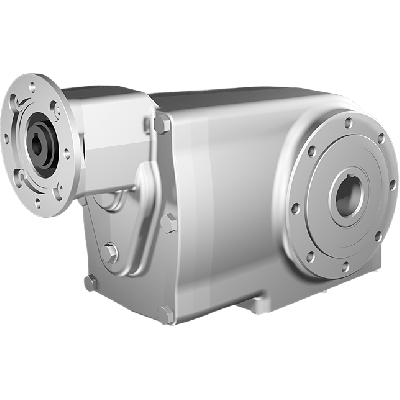

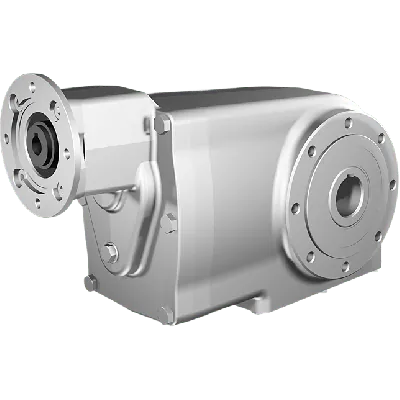

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 125,82:1, input 71B14, B3, stainless steel
HV82PX63NI08-EFBN-QB3-C-OFIt features a gear size X63N, with a ratio of 125.82:1 and a 3-stage gear configuration for high torque output. The gear input shaft is 14 mm and connects via motor interface 71B14. The gear output shaft measures 35 mm with H7 tolerance.Constructed with stainless steel AISI 316L gears, the unit is fully corrosion-resistant. Its efficiency is 94%, ensuring minimal power loss, with BCD dimensions of 85 mm input and 130 mm output.This model includes a stainless steel Ø35H7 hollow output shaft, offering durability and resistance in hygienic or aggressive environments.
Specifications
Product description
Downloads
€3,250.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
125,82:1
BCD input
85
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X63N
Output speed at 1400 RPM
11.1
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.51
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of high-performance stainless steel gearboxes designed for demanding industrial applications. Known for their hygiene-first engineering and corrosion-resistant properties, Clean-Geartech products are ideal for food processing, chemical, pharmaceutical, and marine environments where durability and cleanliness are critical factors.**Key Features and Application Benefits:**
High Gear Ratio of 125.82:1 enables significant torque multiplication, ideal for slow-speed, high-load applications such as conveyors, agitators, and screw drives.
Premium AISI 316L Stainless Steel housing offers exceptional resistance to aggressive cleaning agents, saltwater, and corrosive chemicals—perfect for sanitary or offshore installations.
IEC input flange size 71B14 ensures compatibility with a wide range of IEC standard motors, allowing for flexible motor integration across industries.
35 mm ØH7 stainless steel hollow output shaft provides a keyless, compact connection to drive shafts, reducing backlash and alignment complexity in precision systems.
Compact X63N frame size with three-stage gearbox construction ensures high torque output in tight installation spaces, ideal for OEM machine integrations and modular systems.
Achieves up to 94% mechanical efficiency, ensuring optimal energy usage in continuous operation environments like bottling lines or cleanroom automation.
AISI 316L internal and external gearing elements safeguard against surface degradation—ideal for uncompromising reliability in CIP (Clean-in-Place) and SIP (Sterilize-in-Place) protocols.
14 mm stainless steel input shaft offers a robust input interface that resists wear over time, suited for stop-start processes and high-demand duty cycles.
BCD input 85 mm and BCD output 130 mm dimensions make installation straightforward and compatible with widely used mounting systems across industrial setups.Whether you're operating in food-grade, pharmaceutical, or marine applications, the Clean-Geartech X63N delivers enduring performance, minimal maintenance, and maximum hygiene assurance.
High Gear Ratio of 125.82:1 enables significant torque multiplication, ideal for slow-speed, high-load applications such as conveyors, agitators, and screw drives.
Premium AISI 316L Stainless Steel housing offers exceptional resistance to aggressive cleaning agents, saltwater, and corrosive chemicals—perfect for sanitary or offshore installations.
IEC input flange size 71B14 ensures compatibility with a wide range of IEC standard motors, allowing for flexible motor integration across industries.
35 mm ØH7 stainless steel hollow output shaft provides a keyless, compact connection to drive shafts, reducing backlash and alignment complexity in precision systems.
Compact X63N frame size with three-stage gearbox construction ensures high torque output in tight installation spaces, ideal for OEM machine integrations and modular systems.
Achieves up to 94% mechanical efficiency, ensuring optimal energy usage in continuous operation environments like bottling lines or cleanroom automation.
AISI 316L internal and external gearing elements safeguard against surface degradation—ideal for uncompromising reliability in CIP (Clean-in-Place) and SIP (Sterilize-in-Place) protocols.
14 mm stainless steel input shaft offers a robust input interface that resists wear over time, suited for stop-start processes and high-demand duty cycles.
BCD input 85 mm and BCD output 130 mm dimensions make installation straightforward and compatible with widely used mounting systems across industrial setups.Whether you're operating in food-grade, pharmaceutical, or marine applications, the Clean-Geartech X63N delivers enduring performance, minimal maintenance, and maximum hygiene assurance.
