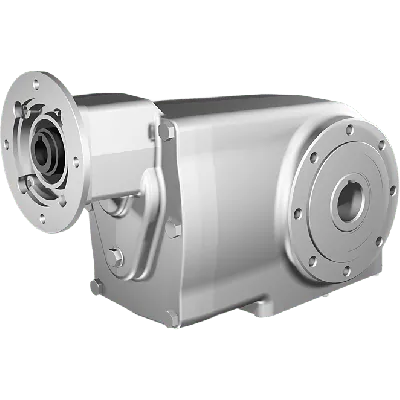

Clean-Geartech X63N, helical bevel gear Ø35H7 hollow shaft, 100,47:1, input 80B14, B3, stainless steel
HV82PX63NI06-EFBN-RB3-D-OFIt features a gear ratio of 100.47:1 and a three-stage gear system for consistent torque transmission. The input shaft diameter is 19 mm and the output shaft is a Ø35H7 hollow shaft. The gear integrates with motor interface size 80B14.Constructed with stainless steel AISI 316L gears, it ensures resistance to corrosion in harsh applications. The unit delivers 94% efficiency and is built in gear size X63N. With a BCD input of 100 mm and a BCD output of 130 mm, this stainless steel gearbox configuration supports hygienic and corrosion-resistant applications in technical systems.
Specifications
Product description
Downloads
€3,255.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
100,47:1
BCD input
100
BCD output
130
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X63N
Output speed at 1400 RPM
13.9
Max output torque (Nm)
410
Max kW input at 1400 rpm
0.64
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned European manufacturer specializing in hygienic and corrosion-resistant drive components for demanding industrial environments. With a strong focus on quality, durability, and performance in harsh conditions, Clean-Geartech products are widely used in industries such as food processing, pharmaceuticals, marine, and chemical manufacturing.This model is the Clean-Geartech X63N bevel gearbox, offering exceptional mechanical efficiency and robust performance. Engineered entirely in stainless steel AISI 316L, this unit is ideal for applications demanding superior corrosion resistance and hygienic surfaces.
High Gear Ratio of 100.47:1 ensures reliable torque multiplication for use in low-speed, high-torque applications such as conveyors, mixers, and material handling systems.
Constructed from AISI 316L stainless steel, the housing delivers outstanding resistance to corrosion, chemicals, and aggressive cleaning agents — optimal for hygienic environments.
Stainless Steel Ø35H7 Hollow Output Shaft enables direct mounting on driven shafts while maintaining excellent torque transmission and corrosion resistance for cleanroom or washdown zones.
Compact Gearbox Size X63N with 3 gear stages provides efficient power transmission with reduced space requirements — perfect for tight installation areas in process or packaging machinery.
Input Interface B14 (Mounting Flange Ø80) offers compatibility with a wide range of IEC electric motors, making the unit easy to integrate with various drive systems.
High mechanical efficiency of 94% minimizes energy losses, which is vital in continuous operation systems where power savings are critical to operational cost.
19 mm Input Shaft allows flexible coupling designs and supports stable operation at the gearhead's entrance — suitable for high-speed electric motor connections.
Ideal for use in food and beverage systems, chemical dosing units, pharmaceutical production lines, and marine applications where rust-free operation is crucial.This Clean-Geartech X63N bevel gearbox delivers hygienic performance, engineering-grade strength, and flexible integration options for technical specialists and design engineers seeking long-lasting, maintenance-efficient power transmission.
High Gear Ratio of 100.47:1 ensures reliable torque multiplication for use in low-speed, high-torque applications such as conveyors, mixers, and material handling systems.
Constructed from AISI 316L stainless steel, the housing delivers outstanding resistance to corrosion, chemicals, and aggressive cleaning agents — optimal for hygienic environments.
Stainless Steel Ø35H7 Hollow Output Shaft enables direct mounting on driven shafts while maintaining excellent torque transmission and corrosion resistance for cleanroom or washdown zones.
Compact Gearbox Size X63N with 3 gear stages provides efficient power transmission with reduced space requirements — perfect for tight installation areas in process or packaging machinery.
Input Interface B14 (Mounting Flange Ø80) offers compatibility with a wide range of IEC electric motors, making the unit easy to integrate with various drive systems.
High mechanical efficiency of 94% minimizes energy losses, which is vital in continuous operation systems where power savings are critical to operational cost.
19 mm Input Shaft allows flexible coupling designs and supports stable operation at the gearhead's entrance — suitable for high-speed electric motor connections.
Ideal for use in food and beverage systems, chemical dosing units, pharmaceutical production lines, and marine applications where rust-free operation is crucial.This Clean-Geartech X63N bevel gearbox delivers hygienic performance, engineering-grade strength, and flexible integration options for technical specialists and design engineers seeking long-lasting, maintenance-efficient power transmission.
