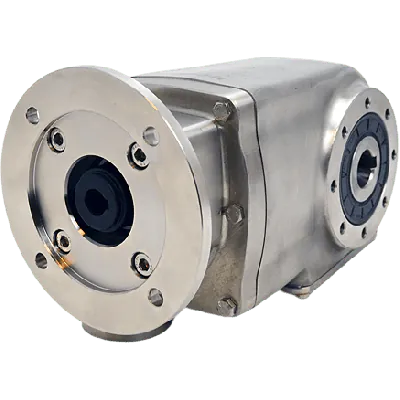

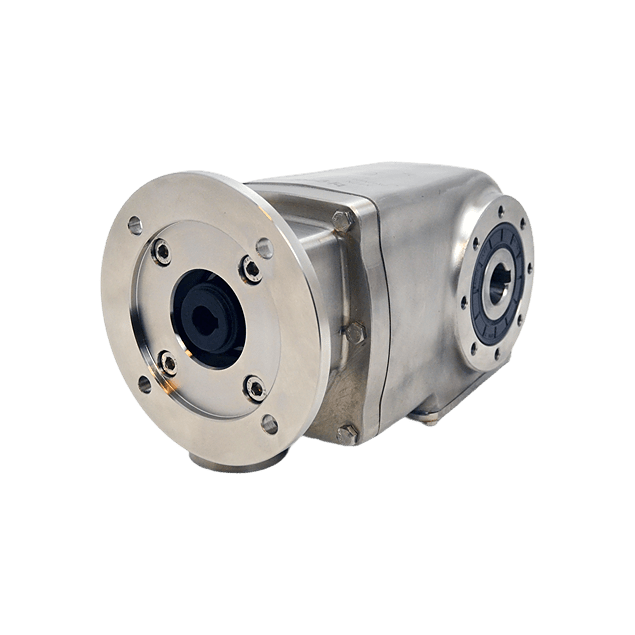

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 9,26:1, input 90B14, B3, stainless steel
HV82PX62NI02-EFBN-TB3-E-OFThis model features a gear size: X62N and a gear ratio: 9.26:1, utilizing 2 gear stages for consistent torque transfer. The unit includes a 35 mm hollow output shaft (Ø35H7) and a 24 mm input shaft. Integrated with a 90B14 gear motor interface, it ensures simplified installation with standard motors.The gear material is stainless steel AISI 316L, providing high corrosion resistance for clean or aggressive environments. The gearbox operates with an efficiency of 96%, with BCD dimensions: input 115 mm, output 130 mm, supporting compact system integration.
Specifications
Product description
Downloads
€3,048.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
9,26:1
BCD input
115
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X62N
Output speed at 1400 RPM
151
Max output torque (Nm)
270
Max kW input at 1400 rpm
4.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a recognized manufacturer of hygienic and corrosion-resistant gear solutions designed for demanding industrial environments. Known for their expertise in high-performance stainless steel gearboxes, Clean-Geartech delivers precision-engineered products built for longevity and minimal maintenance. Every component is developed with strict adherence to industry regulations in food, pharmaceutical, chemical, and marine sectors.The Clean-Geartech X62N is a compact bevel gearbox that combines durability, efficiency, and corrosion resistance — ideal for applications requiring hygienic construction and high-performance torque transmission.Key Features and Application Benefits:
• Designed and manufactured in AISI 316L stainless steel, ensuring maximum corrosion resistance in aggressive and hygienic environments (e.g., food processing, dairy, pharmaceutical manufacturing).
• 96% efficiency enables reduced energy loss and lower operational costs, supporting energy-efficient system designs and sustainability goals.
• Equipped with a Ø35H7 stainless steel hollow output shaft, providing seamless integration with standard-driven elements and enhanced hygiene due to non-porous surfaces.
• Input flange configuration 90B14 offers broad compatibility with IEC-standard motors, facilitating flexible power unit selection for customized drive systems.
• Compact gearbox size X62N contributes to reduced mechanical footprints — ideal for installations where space is limited or cleanliness is prioritized.
• 2-stage bevel gear system delivers a reduction ratio of 9.26:1, optimized for balanced speed-torque conversion in conveyors, mixers, and lifting equipment.
• Stainless steel output shaft (Ø35 mm) and input shaft (Ø24 mm) ensure robust torque transmission while withstanding washdown routines and abrasive media.
• Clean external surfaces and crevice-free design comply with HACCP and EHEDG guidelines, minimizing contamination risk in compliant processing environments.
• Ideal for use in industries such as food & beverage, pharmaceuticals, marine applications, and chemical processing that demand both performance and hygiene.
• Designed and manufactured in AISI 316L stainless steel, ensuring maximum corrosion resistance in aggressive and hygienic environments (e.g., food processing, dairy, pharmaceutical manufacturing).
• 96% efficiency enables reduced energy loss and lower operational costs, supporting energy-efficient system designs and sustainability goals.
• Equipped with a Ø35H7 stainless steel hollow output shaft, providing seamless integration with standard-driven elements and enhanced hygiene due to non-porous surfaces.
• Input flange configuration 90B14 offers broad compatibility with IEC-standard motors, facilitating flexible power unit selection for customized drive systems.
• Compact gearbox size X62N contributes to reduced mechanical footprints — ideal for installations where space is limited or cleanliness is prioritized.
• 2-stage bevel gear system delivers a reduction ratio of 9.26:1, optimized for balanced speed-torque conversion in conveyors, mixers, and lifting equipment.
• Stainless steel output shaft (Ø35 mm) and input shaft (Ø24 mm) ensure robust torque transmission while withstanding washdown routines and abrasive media.
• Clean external surfaces and crevice-free design comply with HACCP and EHEDG guidelines, minimizing contamination risk in compliant processing environments.
• Ideal for use in industries such as food & beverage, pharmaceuticals, marine applications, and chemical processing that demand both performance and hygiene.
