Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 6,03:1, input 80B14, B3, stainless steel
HV82PX62NI01-EFBN-RB3-D-OFThis model features a gear input shaft of 19 mm and a Ø35H7 hollow output shaft. The unit offers a gear ratio of 6.03:1 and supports a BCD input of 100 mm with a BCD output of 130 mm. It delivers a high efficiency of 96% across 2 gear stages.The housing and critical components are manufactured in stainless steel AISI 316L to support corrosion resistance and cleanability requirements. The gearbox is compatible with motors via a 80B14 interface and aligns with the gear size X62N.
Specifications
Product description
Downloads
€3,044.00
In stock
Expected shipment:
Loading...

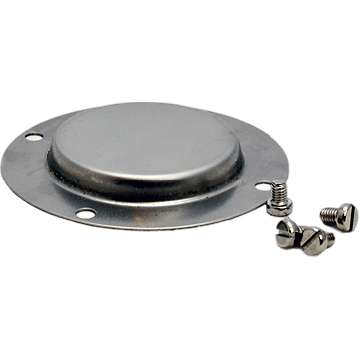

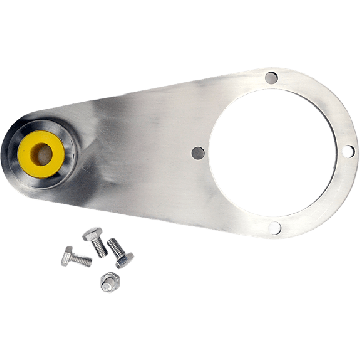

Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
6,03:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
232
Max output torque (Nm)
240
Max kW input at 1400 rpm
6.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Produced by Clean-Geartech, a trusted manufacturer of high-performance gear solutions, the X62N is part of their robust stainless steel gearbox series, engineered specifically for advanced industrial applications in challenging environments. Clean-Geartech's gearboxes are solidly built in accordance with hygienic design principles, making them ideal for sectors such as food processing, pharma, marine, and chemical processing.
Precision-engineered bevel gear system with a gear ratio of 6.03:1, delivering optimized torque transfer and rotational speed control for demanding automation and transport applications.
Made entirely of AISI 316L stainless steel, including the Ø35H7 hollow output shaft and the Ø19 mm input shaft, offering exceptional resistance to corrosion, aggressive cleaning agents, and saline or hygienic environments.
Two-stage gearbox design (X62N) enhances torque transmission efficiency and reliability while maintaining a compact footprint, suitable for installations with strict spatial limitations or integrated OEM systems.
Efficiency rating of 96% ensures minimal energy loss during operation, reducing heat generation and energy consumption over time—critical for high-duty or continuous-process machinery.
Designed with 80B14 input flange interface, allowing seamless integration with standard IEC motors, enabling quick assembly and interchangeability across modular automation systems.
High-strength build and hygienic design facilitate use in industries with stringent sanitary requirements, such as food & beverage production, where frequent washdowns are required.
Ideal for conveyor systems, mixers, packaging equipment, and processing lines where contamination resistance, high reliability, and long maintenance intervals are crucial.
Output shaft diameter of 35 mm (H7 tolerance) provides enhanced rigidity, allowing direct mounting of driven components or couplings with minimal play and high alignment precision.
Compact gear size (model X62N) ensures easy system integration and is particularly beneficial in decentralized drive architectures where space constraints exist.
SKU: Clean-Geartech X62N, Bevel Gearbox Ø35H7 Hollow Shaft, 6.03:1, Input 80B14, AISI 316L Stainless Steel
Precision-engineered bevel gear system with a gear ratio of 6.03:1, delivering optimized torque transfer and rotational speed control for demanding automation and transport applications.
Made entirely of AISI 316L stainless steel, including the Ø35H7 hollow output shaft and the Ø19 mm input shaft, offering exceptional resistance to corrosion, aggressive cleaning agents, and saline or hygienic environments.
Two-stage gearbox design (X62N) enhances torque transmission efficiency and reliability while maintaining a compact footprint, suitable for installations with strict spatial limitations or integrated OEM systems.
Efficiency rating of 96% ensures minimal energy loss during operation, reducing heat generation and energy consumption over time—critical for high-duty or continuous-process machinery.
Designed with 80B14 input flange interface, allowing seamless integration with standard IEC motors, enabling quick assembly and interchangeability across modular automation systems.
High-strength build and hygienic design facilitate use in industries with stringent sanitary requirements, such as food & beverage production, where frequent washdowns are required.
Ideal for conveyor systems, mixers, packaging equipment, and processing lines where contamination resistance, high reliability, and long maintenance intervals are crucial.
Output shaft diameter of 35 mm (H7 tolerance) provides enhanced rigidity, allowing direct mounting of driven components or couplings with minimal play and high alignment precision.
Compact gear size (model X62N) ensures easy system integration and is particularly beneficial in decentralized drive architectures where space constraints exist.
SKU: Clean-Geartech X62N, Bevel Gearbox Ø35H7 Hollow Shaft, 6.03:1, Input 80B14, AISI 316L Stainless Steel
